2 Side Blowing 1.2mm SUS304 Air Shower Room With Swing Doors

2 Side Blowing 1.2mm SUS304 Air Shower Room With Swing Doors
2 Side Blowing 1.2mm SUS304 Air Shower Room With Swing Doors
2 Side Blowing 1.2mm SUS304 Air Shower Room With Swing Doors 2 Side Blowing 1.2mm SUS304 Air Shower Room With Swing Doors 2 Side Blowing 1.2mm SUS304 Air Shower Room With Swing Doors 2 Side Blowing 1.2mm SUS304 Air Shower Room With Swing Doors

Large Image :  2 Side Blowing 1.2mm SUS304 Air Shower Room With Swing Doors

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: Zhisheng
Certification: ISO 9001/CE/ROHS

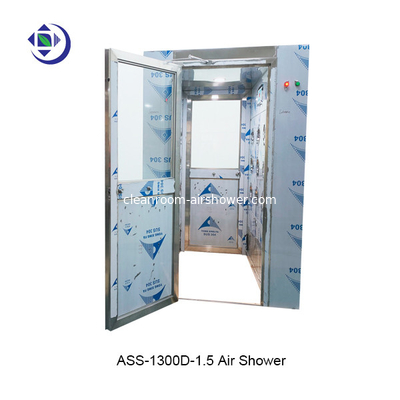

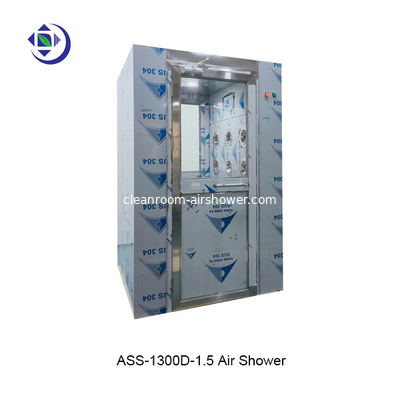

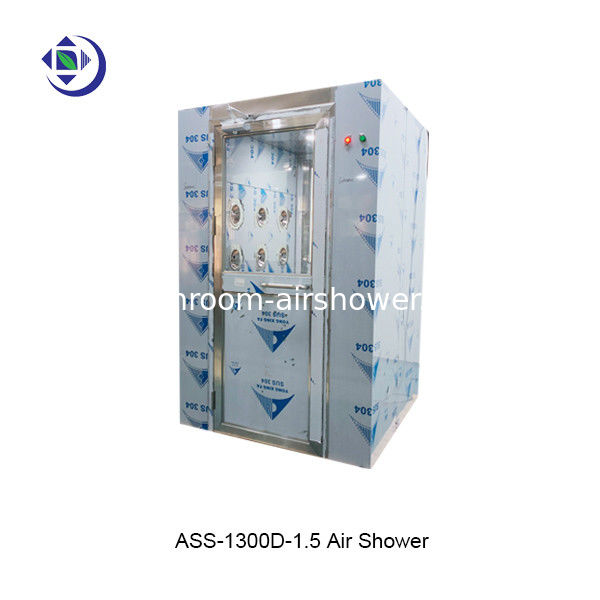

Model Number: ASS-1300D-1.5
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plywood case
Delivery Time: about 15 days upon receipt of deposit
Payment Terms: T/T, Western Union
Supply Ability: 200 Set/Sets per Month

2 Side Blowing 1.2mm SUS304 Air Shower Room With Swing Doors

Description
Condition: New Dimension(WxDxH): W1300xD1500xH2100mm
In Size(MM): W800xD900xH1960 Blowing Side: 2- Side Blowing
Material: T=1.2 Stainless Steel 304 Suitable: For Materials
Voltage: AC380V, 50 Hz, 3PH
High Light:

1.2mm SUS304 Air Shower Room

,

Air Shower Room With Swing Doors

,

2 Side Blowing Air Shower Cleanroom

Stainless steel 304 Air Shower room For materials, with stainless steel swing doors



Air shower.pdf



According to the blowing method, the air shower room can be divided into: top air shower room, single-side blowing air shower room for one person, double-side blowing air shower room for 2 persons,Three-side blowing air shower room for one person, double-side blowing air shower room for 2 persons, Double-side blowing air shower room for multi-persons, L type air shower room,


According to the material of the casing:the air shower room can be divided into: stainless steel air shower, powder coated steel air shower.


According to the degree of automation, the air shower can be divided into: intelligent voice air shower, automatic door air shower, explosion-proof air shower, fast rolling door air shower


Air shower room can be divided according to different objects:Personal air shower room, cargo shower room, air shower tunnels, cargo shower tunnels.



Features:



The two doors of the automatic air shower are electronically interlocked and can function as an air lock chamber to prevent external pollution and unpurified air from entering the clean area.



Eliminate the staff to bring hair, dust, bacteria into the workshop, to meet the strict dust-free workshop purification standards of the workplace, meet the production environment pollution requirements, and produce high-quality products.





Size and Specifications:





Product SS304 Air Shower for  materials
External size W1300xD1500xH2100mm
Internal size W800xD1400xH1960mm
Material: T=1.2 mm stainless steel 304
Doors type W=800mm single-leaf SS304 swing doors
Door closer 2 SETs
Electric lock 2 SETs
Indicator lights Green / Red/Yellow
Blower fan 2sets,capacity: 2500CMH/set
99.99% HEPA filter 610*610*69mm 2 pcs
Pre filter 1 pcs
Nozzle 9+9=18pcs
Bloweing type 2 -side blowing, wind speed: 20-25m/s
Control system LCD display, electric interlocked,automatic blowing by photoelectric sensor
Photoelectric snesor Omron brand 1pcs
Philips LED light 1x8W





Drawing



2 Side Blowing 1.2mm SUS304 Air Shower Room With Swing Doors 0

2 Side Blowing 1.2mm SUS304 Air Shower Room With Swing Doors 12 Side Blowing 1.2mm SUS304 Air Shower Room With Swing Doors 22 Side Blowing 1.2mm SUS304 Air Shower Room With Swing Doors 3



Metal Indicator light -----Good-looking, high quality



2 Side Blowing 1.2mm SUS304 Air Shower Room With Swing Doors 4

Lock Screws---It is easy for opening the panel inside and maintain air shower.

2 Side Blowing 1.2mm SUS304 Air Shower Room With Swing Doors 5



2 Side Blowing 1.2mm SUS304 Air Shower Room With Swing Doors 6

2 Side Blowing 1.2mm SUS304 Air Shower Room With Swing Doors 7
