|Dimension:||W1400xD1500xH2050mm||Surface Finish:||Sraying Painting|
|Door:||Stainless Steel 201 Swing Doors||After-sales Service Provided:||Engineers Available To Service Machinery Overseas|
Air Shower Room AC220V,
2 Person Air Shower Room 50HZ,
Single Phase Cleanroom Air Shower

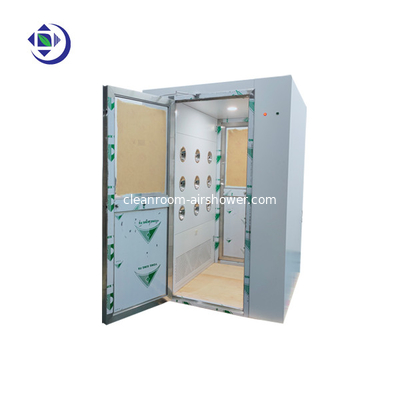

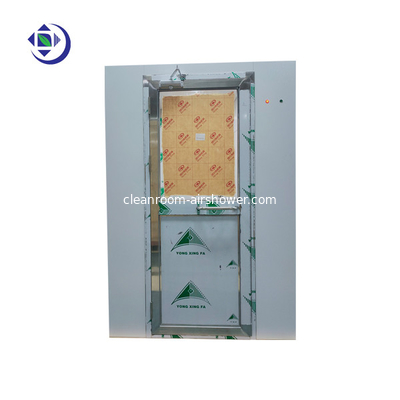

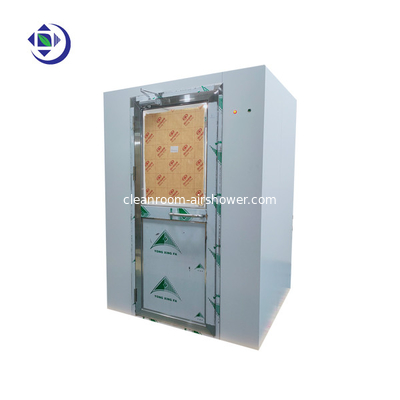

AS-1400D-1.5 Air Shower Room for 2 person as Entrance unit in Clean room, AC220V/50HZ/single phase
Air shower is a necessary passage for person entering clean room in order to minimized the amount of
particulate contaminant, achieve workplace strict clean purification standards. Personnel move through
the air shower while particulate contaminants are blew off by the clean high speed air. So the duct cannot
be brought into clean area.
Air shower has the features of elegant appearance, compact structure, easy maintenance and simple operation.
Meanwhile, we can produce the people and cargo air shower room with the electronic interlocking and
infrared sensing device according to customers' needs.
|Product type||AS-1400D-1.5 Air Shower Room for 2 person as Entrance unit in Clean room|
|Material for casing||Power coated steel for mainbody, stainless steel for the base|
|Material for doors||Stainless steel 201 single-leaf swing doors|
|Door type||Manual swing doors|
|Blowing way||2 sides blowing|
|Control system||English IC intelligent control panel with English human voice|
|HEPA filter efficinecy:||H13|
|Photoelectric sensor||OMRON brand|
|Shower time||0-60s adustable|
|Spurt wind speed||22-25m/s above|
|Power supply||AC 220V/50HZ/1PH|
|Safeguard||Leakage switch and thermal overload relay (Protect people from electric leakage)|
Size and specificaton:
|Product||Two Persons Cleanroom Air Shower With 2 side blowing For Electronics Factory|
|External dimensions (mm)||W1400*D1500*H2050MM|
|Internal dimensions WxHxD(mm)||W800*D1400*H1920MM|
|Doors||2 sets of swing door|
|Door closer||2 sets (outside)|
|Lock||2 sets of electric locks interlocked|
|Suitable person||two person|
|Nozzles||9+9=18 PCS(Three-side blowing)|
|Blower fan||2 sets|
|HEPA filter size||610x610x69mm|
|HEPA filter qty||2 PCS|
|HEPA filter efficiency||99.99% @ 0.3um|
|Photolectric sensor||1 PCS|
|Fluorescent Lamp||1 x 20W|
|Air shower time||0-60 s Adjustable|
|Spurt wind speed||20~25m/s|
|Control system||Microcomputer control circuit board|
Note: Customer's size and specification can be acceptable.
Packing: Plywood Case
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international
Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and
the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
Fast reply in 12 hours if we receive any inquiry or request from customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
30% prepayment by T/T at order, the balance of payment before shipment.
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
We have CE and ROHS Certificate for air shower
Contact Person: Miss. Rita Guo
