One Person Mirror SS304 Air Shower Room With UV Light Three Side Blowing

One Person Mirror SS304 Air Shower Room With UV Light Three Side Blowing

MOQ: 1 set
Standard Packaging: plywood case
Delivery Period: about 15 days upon receipt of deposit
Payment Method: T/T, Western Union
Supply Capacity: 200 Set/Sets per Month
Detail Information
Place of Origin
Guangdong, China (Mainland)
Brand Name
Zhisheng
Certification
ISO 9001/CE/ROHS
Model Number
ASS-1500T-1
Condition:
New
Dimension(WxDxH):
W1500xD1000xH2100mm
In Size(MM):
W800xD900xH1960mm
Weight:
350KG
Clean Room:
100 Class
Blowing Side:
Three Side Blowing
Material:
Stainless Steel 304
Suitable:
1 Person
Voltage:
AC380V, 50 Hz, 3PH
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Minimum Order Quantity:
1 set
Packaging Details:
plywood case
Delivery Time:
about 15 days upon receipt of deposit
Payment Terms:
T/T, Western Union
Supply Ability:
200 Set/Sets per Month
High Light:

Air Shower Room With UV Light

,

One Person Mirror Air Shower Room

,

UV Light Stainless Steel Air Shower

Product Description

Mirror SS304 Air shower room for one person, with UV light, Single-leaf swing doors



Material: Mirror stainless steel 304 for main body



With UV light to kill the virus.



Air shower.pdf



Features:



The two doors of the automatic air shower are electronically interlocked and can function as an air lock chamber to prevent external pollution and unpurified air from entering the clean area.



Eliminate the staff to bring hair, dust, bacteria into the workshop, to meet the strict dust-free workshop purification standards of the workplace, meet the production environment pollution requirements, and produce high-quality products.



Power supply: AC380V, 50hz, three phase



Double-layer glass for door windws



Air shower is assembled with cabinets, roof, base, doors, electric locks, door closers, door sensers, photoelectric sensors, blower fans, HEPA filters, pre filters,nozzles, IC control panels, PCB board and other parts. Two doors are interlocked, one is open, other is closed, when people go into air shower, and close the doors, the photoelectric sensor is infrated by person, the fan is working, return air from primary filter into fan, then it is blowed through HEPA filter, high airflow go through smal diameter of nozzles ,   wind speed 22m/s from nozzles, which will blowing the dust from persons, after blowing, open the exit door, person enter clean room, thus avoiding to people take dust into cleanroom, keep cleanliness of clean room.



According to the blowing method, the air shower room can be divided into: top air shower room, single-side blowing air shower room for one person,  double-side blowing air shower room for 2 persons,Three-side blowing air shower room for one person, double-side blowing air shower room for 2 persons, Double-side blowing air shower room for multi-persons, L type air shower room,


According to the material of the casing:the air shower room can be divided into: stainless steel air shower, powder coated steel air shower.


According to the degree of automation, the air shower can be divided into: intelligent voice air shower, automatic door air shower, explosion-proof air shower, fast rolling door air shower


Air shower room can be divided according to different objects:Personal air shower room, cargo shower room, air shower tunnels,  cargo shower tunnels.



Size and specification



Product Mirror SS304 Air shower room for one person, with UV light, Single-leaf swing doors
External size W1500xD1000xH2100mm
Internal size W800*D900*H1960mm
Material: T=1.2 mm mirror stainless steel 304 for main body and base
Doors type

 W=800mm stainless steel single-leaf sliding door for entrance door and exit door

Door closer  2 sets
Electric lock   2 sets
Indicator lights Green and red
Blower fan  2sets,capacity: 2500CMH/set
99.99% HEPA filter  610*610*69mm 2pcs
Pre filter  2 pcs
Nozzle 8+8+4=20 pcs
Bloweing type 3 -side blowing, wind speed: >20-25m/s
Control system Control by IC control panel
Photoelectric snesor Omron brand 1pcs
Philips LED light 1x18W





Air Shower's Drawing:



One Person Mirror SS304 Air Shower Room With UV Light Three Side Blowing 0

One Person Mirror SS304 Air Shower Room With UV Light Three Side Blowing 1

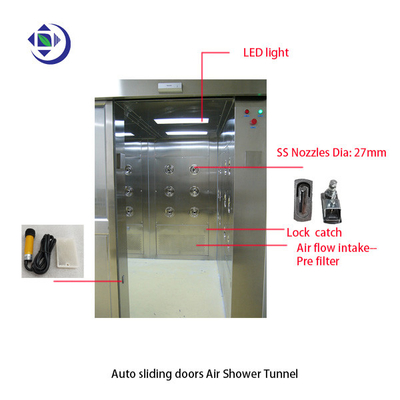

Air shower's photoes



One Person Mirror SS304 Air Shower Room With UV Light Three Side Blowing 2

One Person Mirror SS304 Air Shower Room With UV Light Three Side Blowing 3One Person Mirror SS304 Air Shower Room With UV Light Three Side Blowing 4

Description:



Cleanroom air shower  is a kind of partial purifying equipment of strong universality.



With novel structure, beautiful appearance, reliable running, low consumption, energy saving and convenient maintenance,



it is widely used in electron, machinery, medicine, foodstuff, color packing, brewage, biological engineering and other industry and scientific research fields.



It is usually installed between clean room and unclean room. When people and goods enter into clean room, they have to be blown at first.



The blown clean air can get rid of dust bough by people and goods and can effectively prevent dust source from entering into clean area.
Principle



The air inside of air shower is firstly filtered under the action of fan and enters into static pressure tank.



After filtered with high-efficiency air filter, clean air is jet out at high speed from the nozzle of air shower.



The nozzle angel is adjustable. It can effectively blow out dust attached on people and goods’ surface.



The blown dust enters into primary-efficiency air filter again, circulating so and reaching to the aim of air shower.

Full stainless steel Air shower/New Corner Air shower Air shower material
