| MOQ: | 1 set |
| Standard Packaging: | plywood case |
| Delivery Period: | about 15 days upon receipt of deposit |
| Payment Method: | T/T, Western Union |
| Supply Capacity: | 200 Set/Sets per Month |

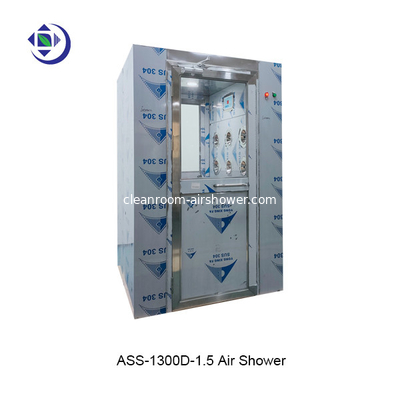

Personal Air Shower for one person to US, stainless steel 304 air shower
Stainless steel personal air shower, removing air dust from people and goods
Features:
The two doors of the automatic air shower are electronically interlocked and can function as an air lock chamber to prevent external pollution and unpurified air from entering the clean area.
Eliminate the staff to bring hair, dust, bacteria into the workshop, to meet the strict dust-free workshop purification standards of the workplace, meet the production environment pollution requirements, and produce high-quality products.
Power supply: AC380V, 50hz, three phase
Double-layer glass for door windws
Air shower is assembled with cabinets, roof, base, doors, electric locks, door closers, door sensers, photoelectric sensors, blower fans, HEPA filters, pre filters,nozzles, IC control panels, PCB board and other parts. Two doors are interlocked, one is open, other is closed, when people go into air shower, and close the doors, the photoelectric sensor is infrated by person, the fan is working, return air from primary filter into fan, then it is blowed through HEPA filter, high airflow go through smal diameter of nozzles , wind speed 22m/s from nozzles, which will blowing the dust from persons, after blowing, open the exit door, person enter clean room, thus avoiding to people take dust into cleanroom, keep cleanliness of clean room.
According to the blowing method, the air shower room can be divided into: top air shower room, single-side blowing air shower room for one person, double-side blowing air shower room for 2 persons,Three-side blowing air shower room for one person, double-side blowing air shower room for 2 persons, Double-side blowing air shower room for multi-persons, L type air shower room,
According to the material of the casing:the air shower room can be divided into: stainless steel air shower, powder coated steel air shower.
According to the degree of automation, the air shower can be divided into: intelligent voice air shower, automatic door air shower, explosion-proof air shower, fast rolling door air shower
Air shower room can be divided according to different objects:Personal air shower room, cargo shower room, air shower tunnels, cargo shower tunnels.
| Product | Clean room Air Shower for one person |
| External size | W1300xD1000xH2100MM |
| Internal size | W800*D900*H1960mm |
| Material: | T=1.2 mm stainless steel 304 for main body and base |
| Doors type |
W=800mm stainless steel single-leaf sliding door for entrance door and exit door |
| Door closer | 2 sets |
| Electric lock | 2 sets |
| Indicator lights | Green and red |
| Blower fan | 2sets,capacity: 1800CMH/set |
| 99.99% HEPA filter | 610*610*69mm 2pcs |
| Pre filter | 2 pcs |
| Nozzle | 6+6=12 pcs |
| Bloweing type | Two -side blowing, wind speed: >20-25m/s |
| Control system | Control by IC control panel |
| Photoelectric snesor | Omron brand 1pcs |
| LED light | 1x18W |
Description:
The clean room air shower is a kind of local purification equipment with strong versatility.
Novel structure, beautiful appearance, reliable operation, low consumption and energy saving, convenient maintenance,
Widely used in electronics, machinery, medicine, food, color decoration, brewing, bioengineering and other industrial and scientific research fields.
Usually installed between clean room and non-clean room. When people and objects enter the clean room, they must first be purged.
The clean air blown out can remove the dust brought by people and objects, and effectively prevent dust sources from entering the clean area.
in principle
The air in the air shower room is first filtered by the fan and then enters the static pressure tank.
After being filtered by the high-efficiency air filter, the clean air is jetted out at high speed from the nozzles of the air shower.
The nozzle angle is adjustable. It can effectively blow off the dust attached to the surface of people and objects.
The blown dust enters the primary air filter again and circulates in this way to achieve the purpose of air shower.
All stainless steel air shower/New Corner Air shower air shower material
1. Color steel plate
2. Steel plate
3. Stainless steel
Application: Stainless Steel Air Shower is usually used for Food , medicine, biological or other industry.
Standar size and specificaton:
| Model | Air shower | Cargo Air shower | ||||
| AS-1200D-1 | AS-1400D-1 | AS-1400D-1.5 | AS-1400D-2 | CAS-1700T-2 (2 Modules) | CAS-1700T-4 (4 Modules) | |
| Ex size WxDxH (MM) | 1200x1000x 2050 | 1400x1000x 2050 | 1400x1500x 2050 | 1400x2000x 2050 | 1800x2000x2050 | 1800x4000x 2050 |
| In size WxDxH (MM) | 800x900x 1920 | 800x900x 1920 | 800x1400x 1920 | 800x1900x 1920 | 1200x1900x 1920 | 1200x3900x 1920 |
| Doors | Swing door/sliding door/shutter door Door frame: SS/ALU | |||||
| Suitable person | 1 | 1 | 1-2 | 2-3 | Cart | |
| Nozzles | 12(two side) | 12(two sides) | 18(two sides) | 24(two sides) | 32(3- side) | 64(3- side) |
| Fan | #4250x1 set | #4195 x 2 sets | #4195x2sets | #4250x2sets | #4195x4sets | #4195x8sets |
| Power(W) | 1000W | 850W | 850W | 2000W | 1700W | 3400W |
| HEPA filter | 610x610x69 1pcs | 610x610x69 2pcs | 610x610x69 2pcs | 915x610x69 2 pcs | 610x610x69 4pcs | 610x610x69 8pcs |
| Nozzle | ф 25 or 32mm | |||||
| Voltage | 380V/50Hz/3Ph; 220V/50Hz/1Ph | |||||
| Control system | IC intelligent control panel, blowing automatically by photoelectric sensor, the two door are electric interlocked. | |||||
Note: Customer's size and specification can be acceptable.
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Replacement parts:
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Air Shower's drawing:
Why you choose ZHISHENG Company ?
Professional service:
Fast reply in 12 hours if we receive any inquiry or request from customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.
|
|
