| MOQ: | 1 set |
| Standard Packaging: | plywood case |
| Delivery Period: | about 15 days upon receipt of deposit |
| Payment Method: | T/T, Western Union |
| Supply Capacity: | 200 Set/Sets per Month |
Mirror SS304 Air shower room for one person, with UV light, Single-leaf swing doors
Material: Mirror stainless steel 304 for main body
With UV light to kill the virus.
Features:
The two doors of the automatic air shower are electronically interlocked and can function as an air lock chamber to prevent external pollution and unpurified air from entering the clean area.
Eliminate the staff to bring hair, dust, bacteria into the workshop, to meet the strict dust-free workshop purification standards of the workplace, meet the production environment pollution requirements, and produce high-quality products.
Power supply: AC380V, 50hz, three phase
Double-layer glass for door windws
Air shower is assembled with cabinets, roof, base, doors, electric locks, door closers, door sensers, photoelectric sensors, blower fans, HEPA filters, pre filters,nozzles, IC control panels, PCB board and other parts. Two doors are interlocked, one is open, other is closed, when people go into air shower, and close the doors, the photoelectric sensor is infrated by person, the fan is working, return air from primary filter into fan, then it is blowed through HEPA filter, high airflow go through smal diameter of nozzles , wind speed 22m/s from nozzles, which will blowing the dust from persons, after blowing, open the exit door, person enter clean room, thus avoiding to people take dust into cleanroom, keep cleanliness of clean room.
According to the blowing method, the air shower room can be divided into: top air shower room, single-side blowing air shower room for one person, double-side blowing air shower room for 2 persons,Three-side blowing air shower room for one person, double-side blowing air shower room for 2 persons, Double-side blowing air shower room for multi-persons, L type air shower room,
According to the material of the casing:the air shower room can be divided into: stainless steel air shower, powder coated steel air shower.
According to the degree of automation, the air shower can be divided into: intelligent voice air shower, automatic door air shower, explosion-proof air shower, fast rolling door air shower
Air shower room can be divided according to different objects:Personal air shower room, cargo shower room, air shower tunnels, cargo shower tunnels.
Size and specification
| Product | Mirror SS304 Air shower room for one person, with UV light, Single-leaf swing doors |
| External size | W1500xD1000xH2100mm |
| Internal size | W800*D900*H1960mm |
| Material: | T=1.2 mm mirror stainless steel 304 for main body and base |
| Doors type |
W=800mm stainless steel single-leaf sliding door for entrance door and exit door |
| Door closer | 2 sets |
| Electric lock | 2 sets |
| Indicator lights | Green and red |
| Blower fan | 2sets,capacity: 2500CMH/set |
| 99.99% HEPA filter | 610*610*69mm 2pcs |
| Pre filter | 2 pcs |
| Nozzle | 8+8+4=20 pcs |
| Bloweing type | 3 -side blowing, wind speed: >20-25m/s |
| Control system | Control by IC control panel |
| Photoelectric snesor | Omron brand 1pcs |
| LED light | 1x8W |
Air Shower's Drawing:

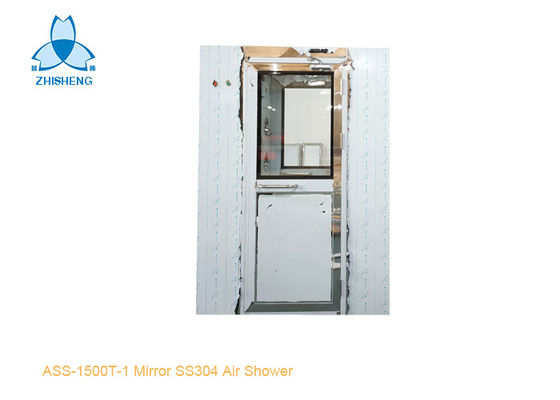

Air shower's photoes
|
|
