Galvanized Frame H13 H14 High Airflow Compact HEPA Filter NON Separator

Galvanized Frame H13 H14 High Airflow Compact HEPA Filter NON Separator

MOQ: 50 pieces
Standard Packaging: plywood case
Delivery Period: about 15 days upon receipt of deposit
Supply Capacity: 500 pieces per month
Detail Information
Place of Origin
Guangdong, China (Mainland)
Brand Name
Zhisheng
Certification
ISO 9001, Rohs
Model Number
ZS-YZ-1500
Efficiency:
99.99%
Separator:
NON
Size:
592x292x292
Frame Material:
ABS Plastic
Initial Resistance (Pa):
≤220
Porosity:
0.3um
Minimum Order Quantity:
50 pieces
Packaging Details:
plywood case
Delivery Time:
about 15 days upon receipt of deposit
Supply Ability:
500 pieces per month
High Light:

Galvanize Frame Compact HEPA Filter

,

0.3um Compact HEPA Filter

,

H14 HEPA Air Filter

Product Description

High Aiflow 4V Combined HEPA filter 592x592x292mm, High capacity Galvanized frame HEPA filter





Compact HEPA filter for AHU



Outer frame: Galvanized



Media: fiberglass



Size: W592xD292xH292MM



Description:



It is assembled with fiberglass or superfine polypropylene filter material, and galvanized sheet frame. It is featured with great dust-contain capacity, high withstanding air volume, high filtering efficiency, less resistance, light in weight, and convenient for mounting etc



Advantages of the product:



1. High dust holding
2. Low initial pressure drop

3. Good raw material, competitive price

4. Leak test one by one before delivery

5. Fast delivery

6. Size can be customized



Material and operating conditions:



External frame Galvanized frame
Sealant Polyurethane
Separator Clapboard or aluminum foil
Filter media Fiberglass /HV fiberglass / PP
Maximum operating temperature 80°C
Maximum operating humidity 100%
HEPA filter Efficiency ≥99.99%





Features:



1: The HEPA with aluminum separator is the finally filtration in clean room that use for filter the particles more than 0.3um, and in high airflow environment.

2: The media is used of micro glass fiber, the paper clapboard or the aluminum foil spacer in regular so that the refresh air pass through the media very easy. make the best of area used and increase the intensity of the pleats

3: The paper / aluminum foil media in 180 degree fold that compost of the wedge layer so that prevented the media damage.

4: The sealant around the media so that the air filter without any air leaking,

the frame can be wooden, aluminum,galvanized or stainless steel.

5: Laser to scan the each air filter one by one,

6: The HEPA air filter efficiency range: H10, H11, H12 H13, H14,

95%-99.99995%@0.3um (EN1822).

7: Each air filter with test report accompany



Size and Specification:



Model Outside dimension
(mm)
Rated air flow
(m3/h)
Initial resistance
(pa)
Efficiency
(%)
Filter Media
(pcs)
ZS-YZ-1000 295x595x295 1000 ≤220 95-99.995%
(F9-H14)
4
ZS-YZ-1500 595x595x295 1500 6
ZS-YZ-2100 595x595x595 2100 8
ZS-YZ-2700 595x595x295 2700 10
ZS-YZ-3300 610x610x295 3300 12

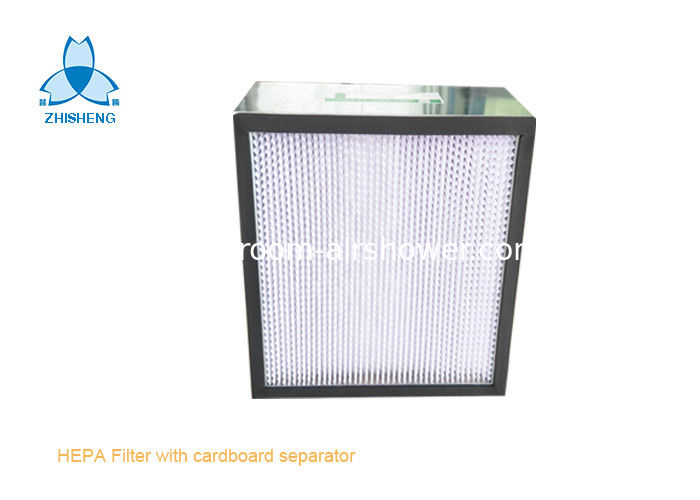

Pictures of HEPA filter
