Computer Controlled EC motor Fan Filter Units for Clean Rooms with Uniform Velocity and Low Noise

Computer Controlled EC motor Fan Filter Units for Clean Rooms with Uniform Velocity and Low Noise

MOQ: 1 set
Standard Packaging: Pywood case
Delivery Period: about 15 days upon receipt of deposit
Payment Method: T/T, Western Union
Supply Capacity: 2000set per month
Detail Information
Place of Origin
Guangdong, China (Mainland)
Brand Name
Zhisheng
Certification
ISO9001
Model Number
ZS-FFU1170-EC
Filter Efficiency:
99.99%
Cleanliness:
100 Class@ 0.3um
Power Consumption:
60-180W
Installation Method:
Ceiling Mounted
Extemal Static Pressure:
97(10mmAq)
Efficiency:
H14
Hepa Efficiency:
99.99%@0.3μm
Size:
1175*575mm
Controller:
IC Control Panel
Air Velocity:
600-1200M3/H
Fan Type:
Centrifugal Fan
Color:
Silver
Noise:
54 - 65 Dba
Motor:
EC Motor Back Centrifugal
Optional:
Pressure Gauge
Minimum Order Quantity:
1 set
Packaging Details:
Pywood case
Delivery Time:
about 15 days upon receipt of deposit
Payment Terms:
T/T, Western Union
Supply Ability:
2000set per month
Product Description

Computer Controlled EC motor Fan Filter Units for Clean Rooms with Uniform Velocity and Low Noise


Fan Filter Unit.pdf

Size: 1175x575mm

Material: SS304

Motor: 1 set (AC220V, 50HZ,1PH)

HEPA filter:1170*570*69mm

HEPA filter'e efficiency: 99.99% at 0.3um

Pre filter: NONE

Fan filter units are stand-alone units with integrated HEPA-filter, fan and control system.

Product Description:

Fan filter unit is type of unit used for filtering laminar air and supplying clean air. FFU can be used stand alone or installed modularly. FFU is the the core when doing clean room for a give space including clean booh, laminar flow cabinet, clean bench and modular clean room.

They supply purified air to cleanrooms and laboratories within the life-science, food-and beverage and microelectronic industries by removing harmful airborne particles from recirculating air. Unlike pressurized cleanroom ceiling plenums, FFUs create a positive room pressure that reduces the contamination risk from potential ceiling bypasses.

Features:

1. Low energy consumption
2. Low noise
3. Uniform velocity and large airflow
4. Can remote controlled by computer


Fan filter Unit Applications:

1. For the ceiling of clean room

2. For the clean booth

3. Precison machinery

4. Laser industry precision machinery

5. The production lines which require high purification grade.

6. Pharmaceuficals, medical science and hospital



Features:



Product EC motor Fan Filter Unit
Material  SS304
Filter efficiency 99.99%
Cleanliness 100 class@0.3um
Power consumption 60-180W
Installation method Ceiling mounted
External static pressure 97(10mmAq)
Filter Class H14
Size 1175*575mm (4x2ft)
Controller IC control panel
Air velocity 600-1200m3/h
Fan Type Centrifugal fan
Noise 54-65 dBA
Fan EC motor
Optional Pressure gauge




Size and specifications:



Computer Controlled EC motor Fan Filter Units for Clean Rooms with Uniform Velocity and Low Noise 0

Remarks:

1. Test pint of noise is 1.5m below downstream.
2. Test point of air velocity if 0.15m below the filter
3. FFU sizes can be customised upon request.
4. FFU power consumption is above tables is based on FFU initial performance

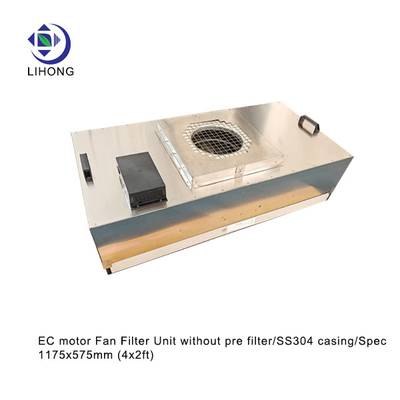

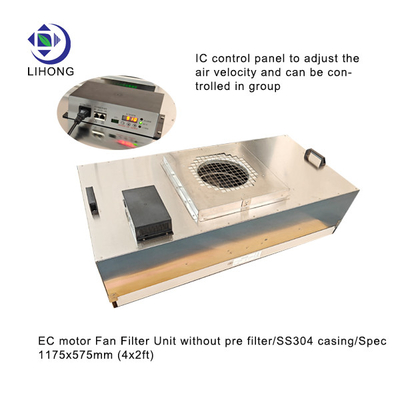

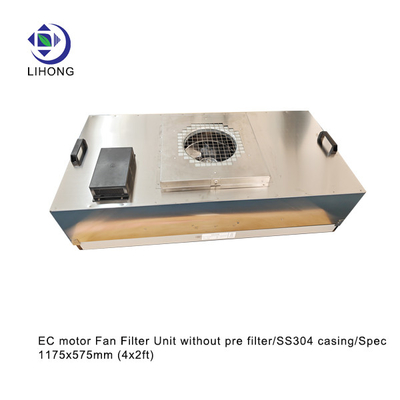

Photos of Fan Filter Unit

Computer Controlled EC motor Fan Filter Units for Clean Rooms with Uniform Velocity and Low Noise 1


 Computer Controlled EC motor Fan Filter Units for Clean Rooms with Uniform Velocity and Low Noise 2Computer Controlled EC motor Fan Filter Units for Clean Rooms with Uniform Velocity and Low Noise 3


Group Control is save the cost and the power, and it is easy for controlling the large quantities of fan filter units in the clean room.

Computer group control



Computer Controlled EC motor Fan Filter Units for Clean Rooms with Uniform Velocity and Low Noise 4

If clean room requires lots of FFU, we suggest DC motor FFU and group controlled, these it is easy to be controlled and save the power.



  • Save power
  • Intelligent control
  • Long lifetime

 Testing in factory:

All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.

Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air velocity speed testing
4. Function testing

Warranty:

The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.

Replacement parts:
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.

Why you choose ZHISHENG Company ?

Professional service:

Fast reply in 12 hours if we receive any inquiry or request from customer
• Familiar with equipment.

Delivery time:
Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.

After sales service:

We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.


Payment Term:
40% prepayment by T/T at order, the balance of payment before shipment.
