|Weight:||280KG||Material:||SS For Base|
|Suitable:||One Person||Door:||Aluminum Doors|
air shower room,
air shower system,
Class 100 Cleanroom Air Shower

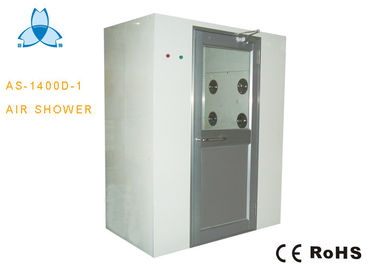

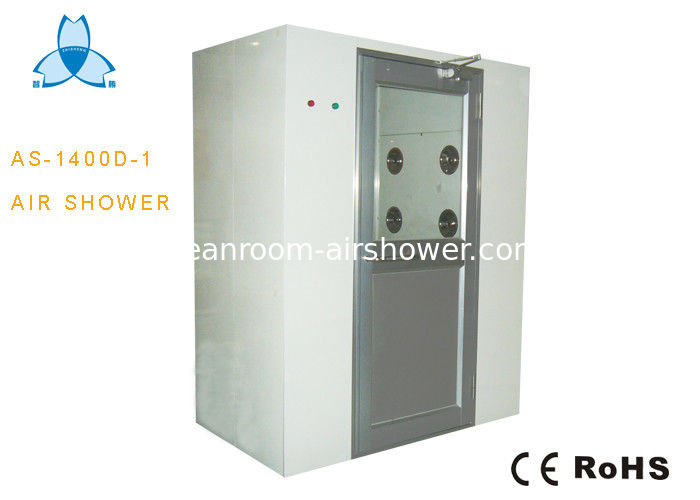

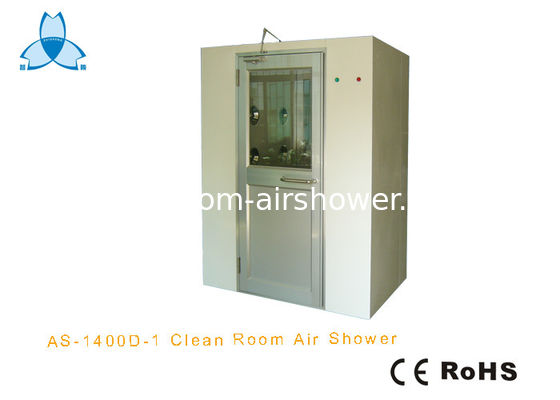

100 Class Common Cleanroom Air Shower With Single Aluminum Doors
Air Shower for clean room is a kind of partial clean equipment with rather strong universality and is installed at the partition between the clean and non-clean rooms.
Its used for the personnel or matters to shower before entering the clean area. After using it, the dust could effectively be reduced to enter the clean area and maintain the normal working status.
|Product type||100 Class Common Cleanroom Air Shower With Single Aluminum Doors|
|Material for casing||T=1.2 Power coated steel for Mainbody|
|Material for doors||Aluminum Alloy frame with half temper glass|
|Door leaf||Single leaf|
|Door type||Manual swing door|
|Blowing way||Two-side blowing,|
|Control system||English IC intelligent control panel with human voice|
|Locks||Electric mortise lock|
|HEPA filter efficinecy:||H14|
|Photoelectric sensor||OMRON brand|
|Shower time||0-99s adustable|
|Spurt wind speed||22-25m/s above|
|Power supply||AC 380V/50HZ/3PH|
|Safeguard||Leakage switch and thermal overload relay (Protect people from electric leakage)|
Standar size and specificaton:
|Product||100 Class Common Cleanroom Air Shower With Single Aluminum Doors|
|External dimensions (mm)||W1400*D1000*H2050MM|
|Internal dimensions WxHxD(mm)||W800*D900*H1920MM|
|Doors||2sets of Aluminum single-leaf swing door|
|Door closer||2 sets (Outside)|
|Lock||2sets of electric locks interlocked|
|Suitable person||One person|
|Nozzles||6+6=12 PCS(2-side blowing )|
|Blower fan||2 sets|
|HEPA filter size||610x610x69mm|
|HEPA filter qty||2 PCS|
|HEPA filter efficiency||99.995% at 0.3um|
|Photolectric sensor||ORMON 1 PCS|
|Fluorescent Lamp||Philips 1x 20W|
|Air shower time||0-99 s Adjustable|
|Spurt wind speed||22-25m/s|
|Control system||Microcomputer control panel with human invoice prompt, electric interlock, automatical blowing by photoelectric sensor|
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
Fast reply in 12 hours if we receive any inquiry or request from customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
30% prepayment by T/T at order, the balance of payment before shipment.
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
We have CE and ROHS Certificate for air shower
