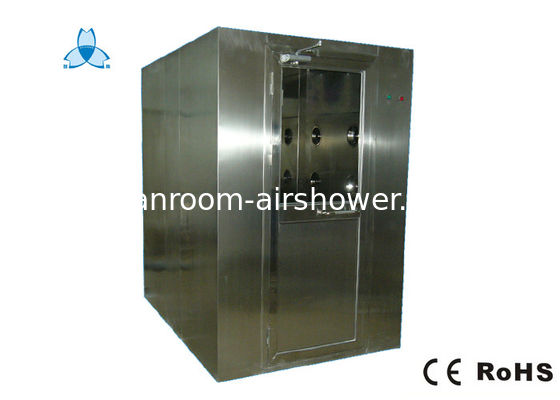

Intelligent Automatic Blowing HEPA filter 99.99% Industry Stainless Steel Air Shower For Pharmaceutical
Description:
Stainless Steel Air shower is installed in the clean room entrance and used to remove the dust on personnel or goods entering through it,
Automatic Blowing Air Shower, which is composed of case, fan(s), filter(s), air shower nozzles and electric control system, is photoelectrically controlled,
electronically interlocked and automatic blowing.
The materials for case is stainless steel (SS201 or SS304; thickness: 1.0 mm or 1.2 mm).
The air shower time is adjustable from 1-99 seconds, compact and sound in structure
Blowing type: single-side blowing, double-side blowing, three-side blowing.
Features:
1. The control system run automatically by photoelectric sensor, the two door are electric interlocked.
(One door in open state, the other door must in close state. When people enter air shower, the system will
shower automatically by photoelectric sensor)
2. Air shower time from 1 to 99 seconds which can be adjustable
3. Adopt Pre filter and HEPA filter
4. The door, bottom-board, nozzles are used of stainless steel, good appearance.
5. When air shower is used to pass cargo, it is without bottom-board.
operating features :
1: Microelectrinoic control system with LED display for the shower time.
2. Special ultrathin blowing tube housing and fan, match with rotatable embedded stainless steel nozzle,
4: the air shower duration time adjustable from 0-99second.
5: Infrared ray inductor for inside personal shower automatic from two side
6: Human being voice remind of user progress in chamber.
Parameter:
Product type | Stainless Steel Air Shower |
Material for casing | T=1.2MM Full SS304 for mainbody of air shower |
Material for doors | Stainless steel 304 |
Nozzles | Stainles steel |
Door leaf | Single leaf |
Door type | Manual swing door |
Blowing way | Three-side blowing |
Control system | English intelligent control panel with human voice |
Locks | Electric mortise lock |
HEPA filter efficinecy: | 99.99% |
Pre filter | G3 |
Light | brand |
Photoelectric sensor | OMRON brand |
Shower time | 0-99s adustable |
Spurt wind speed | 25-27m/s above |
Power supply | 380V/50HZ/3PH |
Safeguard | Leakage switch and thermal overload relay (Protect people from electric leakage) |
size and specificaton:
Product | Intelligent Automatic Blowing HEPA filter 99.99% Industry Stainless Steel Air Shower For Pharmaceutical |
Model | AS S-1300T-2-2 |
External dimensions (mm) | W1300*D2000*H2050MM |
Internal dimensions WxHxD(mm) | W800*D1900*H1920MM |
Doors | 2 sets of SS single-leaf swing door |
Door closer | 2 sets (Outside) |
Lock | 2sets of electric magnetic locks interlocked |
Suitable person | Two person |
Nozzles | 12+12+8=32PCS(3-side blowing ) |
Blower fan | 4 sets |
Blow power(W) | 1600W |
Weight(kg) | Appro.420 |
HEPA filter size | 610x610x90mm |
HEPA filter qty | 4PCS |
HEPA filter efficiency | H13 |
Photolectric sensor | ORMON 1 PCS |
Fluorescent Lamp | 2x 20W |
Nozzle diameter | 32mm |
Air shower time | 0-99 s Adjustable |
Spurt wind speed | 22-25m/s |
Power Supply | AC380V/50Hz/3Ph |
Control system | Microcomputer control panel with human invoice prompt, electric interlock, automatical blowing by photoelectric sensor |
Drawing:
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment.
Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Replacement parts:
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
Professional service:
Fast reply in 12 hours if we receive any inquiry or request from customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Malaysia and so on.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
30% prepayment by T/T at order, the balance of payment before shipment.
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
We have CE and ROHS Certificate for air shower
