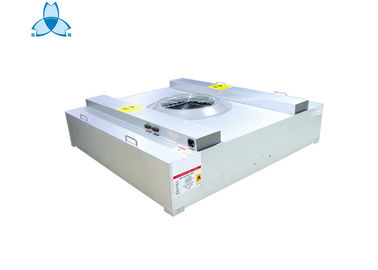

Fan Motorized Fan Filter Unit For Clean Room

Fan Motorized Fan Filter Unit For Clean Room

MOQ: 10 sets
Standard Packaging: plywood case
Delivery Period: about 15 days upon receipt of deposit
Supply Capacity: 500set per month
Detail Information
Place of Origin
Guangdong, China (Mainland)
Brand Name
Zhisheng
Certification
ISO9001
Model Number
ZS-FFU915
Size:
915*610*240
Hepa Filter:
915*610*69
Noise:
54dBA
Air Velocity:
0.35-0.65m/s
Porosity:
0.3micron
Power:
AC220V/50HZ/1PH
Minimum Order Quantity:
10 sets
Packaging Details:
plywood case
Delivery Time:
about 15 days upon receipt of deposit
Supply Ability:
500set per month
High Light:

fan powered hepa filter

,

hepa filter fan

Product Description



Noise ≤ 52 dBA Fan Filter Unit Fan Motorized For Clean Room





Fan filter unit (FFU) is a of type of air filtering equipment. It is used to supply purified air to cleanrooms or microenvironments by filtering out harmful airborne particles from recirculating air. The units are installed within the system's ceiling or floor grid. Large clean room require a proportionally large number of FFUs, which in some cases may range from several hundred to several thousand. Units often contain their own pre-filter, HEPA filter and internally controllable fan air distribution





Applications :



Be used in the large air flow ventilation system,filtration system of pharmaceutical,food,hospital,clean room,etc.



It can be also used in terminal-filtration of mediun/hepa filtration system or pre-filtration of super-efficiency filtration system



Standard Size and Specification



Item Model ZS-FFU610 ZS-FFU915 ZS-FFU1170 ZS-FFU1220
Size for cabinet(mm) 610x610x240 915x610x240 1170x570x240 1220x610x240
Material Cold Rolled steel with powder coated/Galvalume sheet /SUS#201/SUS# 304
Average Air flow(m3/h) 600 900 1080 1200
Air velocity(Tested under filter300mm) 0.35-0.6m/s
ESP 80-120pa
HEPA filter Size(mm) 610x610x69 915x610x69 1170x570x69 1220x610x69
Frame Aluminum profile
Media Fiberglass
Efficiency H13 @0.3um
Pressure Drop ≤220pa
Fan(motor) Power AC 220V/50Hz;AC110V/60Hz
Noise(dB) 52 52 52 53
Optional Control panel, Remote control, Pre filter, Pressure gauge
Weight(KG) 22 24 28 32



Drawing:

Fan Motorized Fan Filter Unit For Clean Room 0

FFU installation:

Fan Motorized Fan Filter Unit For Clean Room 1



Testing in factory:



All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.



Testing before shipment:

1. Appearance inspection

2. Electrical safety tests

3. Air velocity speed testing

4. Function testing



Warranty:



The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual with testing report.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.



Replacement parts:

1. HEPA filter: It should be changed in half or one year once.

2. Pre filter: It should be changed in 3-6 month once.



Why you choose ZHISHENG Company ?



Professional service:



Fast reply in 12 hours if we receive any inquiry or request from customer

• Familiar with equipment.



Delivery time:

Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.



After sales service:



We respect your feed back after receive the goods.

• We provide 1 year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.



Payment Term:

30% prepayment by T/T at order, the balance of payment before shipment.
