| MOQ: | 1 set |
| Standard Packaging: | plywood case |
| Delivery Period: | about 15 days upon receipt of deposit |
| Supply Capacity: | 200sets per month |

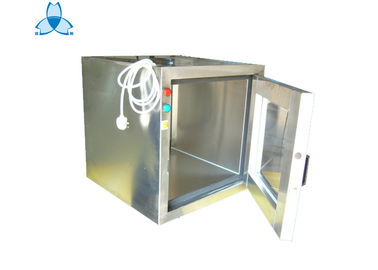

Clean Room Small Area Air Shower Pass Through / Box with UV Lamp
Pass box is a wall mounted pass box used for controlling cross contamination between two zones.
The pass box come with a mechanical or electrical interlock system so that only one door can be opened at a time.
The pass box are available in powder coated steel, 304 stainless steel construction and 316 stainless steel construction.
External size: W700xD600xH700MM
Internal size: W500xD520xH600MM
Material: stainless steel 304
Lock system: Machanical interlocked
With UV lamp
Standard Design Features:
Optional Features
Application
It mainly applied to the goods transimission between the clean and non-clean areas, preventing the
outside dust particles from coming into the clean area due to air circulation.
The possible pollution to clean room can be minimized, so the cleanliness of the clean room can be maintained.
Standard size:
| Model | ZS-CC1 | ZS-CC2 | ZS-CC3 |
| External dimensions (W x D x H) | 685x460x590 | 785x660x690 | 985x660x890 |
| Size for working area ((W x D x H) | 500x400x500 | 600x600x600 | 800x800x600 |
| Material | Cold rollled steel with powder coated for outside, stainless steel for inside | ||
| Lock type | Electric interlock | ||
| Windows | Clear Acrylic sheet | ||
| Product | Pass box with air shower | ||
| Model | ZS-FLP-1300 | ZS-FLP-1400 | ZS-FLP-1750 |
| External dimensions (W x D x H) | 820x560x1300 | 920x660x1400 | 920x660x1750 |
| Size for working area ((W x D x H) | 500x500x600 | 600x600x600 | 600x600x600 |
| Material | Cold rollled steel with powder coated or stainless steel | ||
| Lock type | Mechanical interlock or Electric interlock | ||
| Windows | Clear Acrylic sheet | ||
we can offer special size and requirement as per our clients.
Drawing:
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Why you choose ZHISHENG Company ?
Professional service:
• Fast reply in 12 hours if we receive any inquiry or request from customer
• Familiar with equipment.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
Video
Video
|
|
