|Material:||Stainless Steel 304||Lock Type:||Electronic Interlock|
|Type:||Pass Box||UV Lamp:||Optional|
clean room pass thru,
dynamic pass box

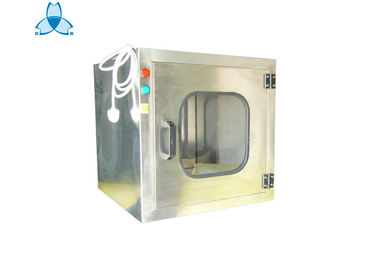

Electro-magnetic Interlock Interlock Smart Pass Through Cabinet For Industry
Pass Through Cabinets are designed to be mounted in the wall of the cleanroom. These units enable
finished drug solutions, parts, tools and other work items to be passed to the cleanroom or pharmacy
preparation room. It acts as an air lock device preventing ambient air from entering, or clean air from
exiting the cleanroom. The electric interlock prevents both doors from being opened at the same time,
thus preventing airborne contaminates from entering the room or pressure loss within the cleanroom.
Mechanical Interlocks are also available.
Flame polished 3/8” thick clear doors.
Continuous stainless steel piano hinge.
Heavy Duty 1/4 Turn chrome plated latching handles.
Mitered anodized aluminum trim molding to frame out opening.
Closed cell gasket around door opening
Many options are available for this unit such as an electronic interlock for heavy use, as in a hospital
Consult our factory trained experienced sales engineering staff for more details.
It mainly applied to the goods transimission between the clean and non-clean areas, preventing the outside dust particles from coming into the clean area due to air circulation.
The possible pollution to clean room can be minimized, so the cleanliness of the clean room can be maintained.
|External dimensions (W x D x H)||685x460x590||785x660x690||985x660x890|
|Size for working area ((W x D x H)||500x400x500||600x600x600||800x800x600|
|Lock type||Electronic Interlock|
|Windows||Clear Acrylic sheet|
|Product||Pass box with air shower|
|External dimensions (W x D x H)||820x560x1300||920x660x1400||920x660x1750|
|Size for working area ((W x D x H)||500x500x600||600x600x600||600x600x600|
|Material||Cold rollled steel with powder coated or stainless steel|
|Lock type||Mechanical interlock or Electric interlock|
|Windows||Clear Acrylic sheet|
we can offer special size and requirement as per our clients.
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Function testing
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
