| MOQ: | 1 set |
| Standard Packaging: | plywood case |
| Delivery Period: | about 15 days upon receipt of deposit |
| Supply Capacity: | 200sets per month |

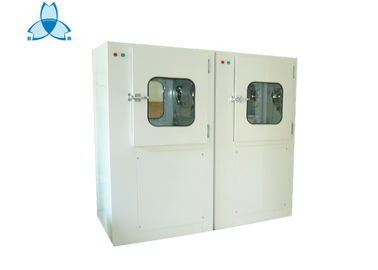

UV Light Air Shower Pass Box With Automatic Air Shower For Clean Room
Cleanroom pass boxes chambers are customized designed, rugged, made of high grade stainless steel.
Controlling the ingress of particulate contamination into cleanrooms and other controlled environments is
paramount in order to maintain the integrity of products and processess and protect the external
environment from egress of contamination.
They are customized according to the customer's different application requirements.
The pass box with air shower has dust-cleaning function, so can be even more effectively stopping the open loop air circulation.
Furthermore, the transported goods only enter the clean area after got air blown over, so the pollution can
be minimized and dust particles will be effectively prevented from being carried out into the “dust-free room” by the transported goods.
Features:
External size: W920xD660xH1400MM
Internal size: W600xD600xH600MM
Material: Cold rolled steel with powder coated for outside casing, stainless steel for inside.
Blower fan : 1400CMH.
HEPA filter: 99.99% @ 0.3um 610x610x69mm 1 PCS
Nozzles: 4 PCS

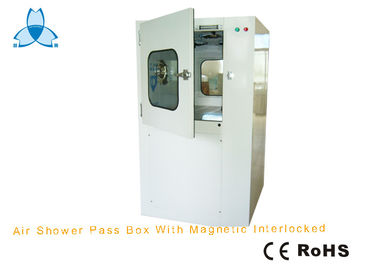

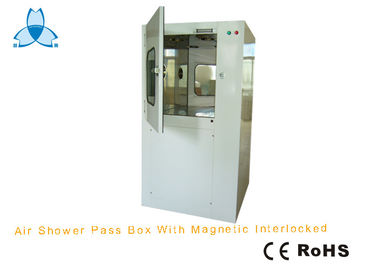

Lock type: Magnetic interlocked.
Windows: temper glass
Handle: 2 sets
Optional Features
Application
It mainly applied to the goods transimission between the clean and non-clean areas, preventing the outside dust particles from coming into the clean area due to air circulation.
The possible pollution to clean room can be minimized, so the cleanliness of the clean room can be maintained.
Standar size:
| Model | ZS-FLP-1300 | ZS-FLP-1400 | ZS-FLP1750 |
| External dimensions (W x D x H) | 820x560x1300 | 920x660x1400 | 920x660x1750 |
| Size for working area ((W x D x H) | 500x500x600 | 600x600x600 | 600x600x600 |
| Material | Cold rollled steel with powder coated for outside, stainless steel for inside | ||
| Lock type | mechanical interlock | ||
| Windows | Clear Acrylic sheet | ||
| Model | ZS-CC1 | ZS-CC2 | ZS-CC3 |
| External dimensions (W x D x H) | 685x460x590 | 785x660x690 | 985x660x890 |
| Size for working area ((W x D x H) | 500x400x500 | 600x600x600 | 800x800x600 |
| Material | Cold rollled steel with powder coated for outside, stainless steel for base | ||
| Lock type | Mechanical interlock or Electronic interlock | ||
| Windows | Clear Acrylic sheet |
||
we can offer special size and requirement as per our clients.
Drawing:
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Why you choose ZHISHENG Company ?
Professional service:
• Fast reply in 12 hours if we receive any inquiry or request from customer
• Familiar with equipment.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
Video
