| MOQ: | 1 set |
| Standard Packaging: | plywood case |
| Delivery Period: | about 15 days upon receipt of deposit |
| Supply Capacity: | 200sets per month |

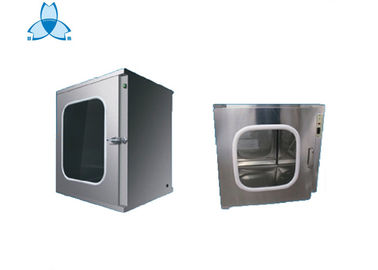

Clean Room Air Shower Pass Box With Mechanical Or Electronic Interlocked
Pass Box is designed to provide functional support of controlling ingress of particulate contamination in clean room environment as well as in other controlled environment.
Further, these pass boxes also allows materials to be efficiently transferred into controlled environment without need of personnel movement.
Finding suitability for protecting external environment from egress of contamination, these are perfectly suitable for biological safety laboratory applications.
Features :
System coming with suitable electromechanical interlock facility that makes these delivers reliable as well as maintenance free functioning
Supporting the demands of maintaining clean room integrity through preventing both doors from being simultaneously opened
Stainless steel 304 grade based main body construction
Internal construction of also featuring stainless steel construction that makes work zone easy to clean as well as maintain
Transparent door provision also offering for clear view of internal chamber
Comes fitted with support of UV lamp for managing germicidal activities
Coming with indication of door opening and closing
Pass box constructed using mild steel powder coated, or stainless steel finish options
System made available in static & dynamic model finish
Dynamic model featuring support of HEPA filters
Standard Features
Optional Features
Application
It mainly applied to the goods transimission between the clean and non-clean areas, preventing the outside dust particles from coming into the clean area due to air circulation.
The possible pollution to clean room can be minimized, so the cleanliness of the clean room can be maintained.
Standar size:
| Model | ZS-CC1 | ZS-CC2 | ZS-CC3 |
| External dimensions (W x D x H) | 685x460x590 | 785x660x690 | 985x660x890 |
| Size for working area ((W x D x H) | 500x400x500 | 600x600x600 | 800x800x600 |
| Material | stainless steel | ||
| Lock type | Mechanical Or Electronic Interlocked | ||
| Windows | Clear Acrylic sheet | ||
we can offer special size and requirement as per our clients.
Drawing:
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Why you choose ZHISHENG Company ?
Professional service:
• Fast reply in 12 hours if we receive any inquiry or request from customer
• Familiar with equipment.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
