| MOQ: | 1 set |
| Price: | USD 5880-8880 / set |
| Standard Packaging: | plywood case |
| Delivery Period: | about 15 days upon receipt of deposit |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 200 Set/Sets per Month |
Cold Rolled Steel High Speed Shutter Doors Clean Room Air Shower
Air shower with high speed shutter door.pdf
It is usually for a large air shower for many people or cargo curt.
CE and ROHS Certificate
Description:
Automatic sliding door cargo air shower design is based on the traditional cargo air shower room, equipped with advanced infrared sensor automatic door opening system, automatic sliding door cargo air shower compared with traditional cargo air shower is door closers canceled, so truly fulfill cargo air shower automated. Person or goods enter into the infrared sensing area auto-sensing, the entering sliding door automatically open and close, person or cargo into dust blowing once completed, the exit sliding door will automatically open and close. Automatic sliding door cargo air shower with two doors electronic interlock so also played "gas chamber” effect, to prevent outside contamination and has not been purified air into the clean area.
Material:
Outside case: 1.2mm cold rolled steel with powder coated or staniless steel(SUS#201 OR 304)
Inside case: 1.2mm cold rolled steel with powder coated or staniless steel(SUS#201 OR 304)
Doors: SUS#201,SUS#304 or aluminum alloy (single-leaf door width: 800-1200mm)
Base: SUS#201 or 304
Nozzles:SUS#304
Features:
| Product type | Air shower room for clean room |
| Material for casing | 1.2mm cold rolled steel with powder coated /stainless steel (SUS#201 or SUS#304) |
| Material for doors | Stainless steel / aluminum alloy / powder coated steel |
| Nozzles | SUS#304 |
| Door leaf | Single leaf / double-leaf |
| Door type | Manual swing door/ Auto sliding door/ High speed shutter door |
| Blowing way | Top-side blowing, single-side blowing, two-side blowing or three-side blowing |
| Control system | English intelligent control panel with human voice (If client requrie control by PLC, it is also ok) |
| Locks | Electric mortise lock or Electric magnetic lock |
| HEPA filter efficinecy: | H13 / H14 |
| Pre filter | G3 / G4 |
| Light | Philipines brand |
| Photoelectric sensor | OMRON brand |
| Shower time | 0-99s adustable |
| Spurt wind speed | 22-25m/s above |
| Power supply | 380V/50HZ/3PH or 220V/50HZ/1PH |
| Safeguard | Leakage switch and thermal overload relay (Protect people from electric leakage) |
Standar size and specificaton:

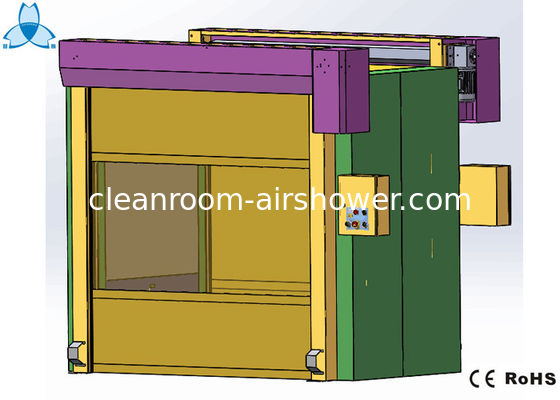

Drawing:
Details:
Air Shower Projects
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.
We have CE and ROHS Certificate for air shower
Video
|
|
