|Frame:||Aluminum Frame||Filter Media:||Glass Fiber|
|Size:||610x610x220||Filter Type:||Panel Deep Pleated|
|Separator:||Paper Foil||Efficiency:||9.99%~99.995% @ 0.3, H14|
High Efficiency h13 hepa filter,
Deep Pleated Separator h13 air filter,
h13 hepa filter
High Efficiency Deep Pleated Separator Air Purifier h13 Hepa Filter
High capacity HEPA filter are mainly used to filtrate the suspended particles in the air with the diameter of 0.3um and below and used for the terminal filtration of all kinds of filtration system.
Material and operating conditions:
|External frame||aluminum / GI/ wooden|
|Separator||paper or aluminum foil|
|Filter media||fiberglass, HV fiberglass or PP|
|Maximum operating temperature||80°C|
|Maximum operating humidity||80%|
|HEPA filter Efficiency||95-99.995%|
1: The HEPA with aluminum separator is the finally filtration in clean room that use for filter the particles more than 0.3um, and in high airflow environment.
2: The media is used of micro glass fiber, the paper clapboard or the aluminum foil spacer in regular so that the refresh air pass through the media very easy. make the best of area used and increase the intensity of the pleats
3: The paper / aluminum foil media in 180 degree fold that compost of the wedge layer so that prevented the media damage.
4: The sealant around the media so that the air filter without any air leaking,
the frame can be wooden, aluminum,galvanized or stainless steel.
5: Laser to scan the each air filter one by one,
6: The HEPA air filter efficiency range: H10, H11, H12 H13, H14,
7: Each air filter with test report accompany
Size and Specification:
|Rated air flow(m/h)||Initial resistance (Pa)||Efficiency|

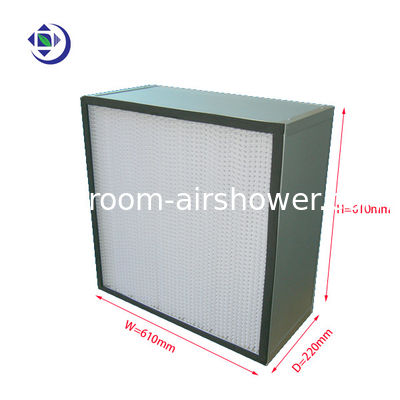

Pictures of HEPA filter
