White Ceiling Vent Diffuser Excellent Appearance With Cap , 600x600mm Face Size

White Ceiling Vent Diffuser Excellent Appearance With Cap , 600x600mm Face Size

    • White Ceiling Vent Diffuser Excellent Appearance With Cap , 600x600mm Face Size
  • White Ceiling Vent Diffuser Excellent Appearance With Cap , 600x600mm Face Size

    Product Details:

    Place of Origin: Guangdong, China (Mainland)
    Brand Name: Zhisheng
    Certification: ISO9001
    Model Number: ZS-FS

    Payment & Shipping Terms:

    Minimum Order Quantity: 50 pieces
    Packaging Details: plywood case
    Delivery Time: about 15 days upon receipt of deposit
    Supply Ability: 1000 pieces
    Contact Now
    Detailed Product Description
    Face Size: 600x600mm Material: Aluminum
    Surface Finish: Powder Coated Color: White
    Type: 4-way Ceiling Diffuser
    High Light:

    hvac ceiling diffuser

    ,

    return air diffuser

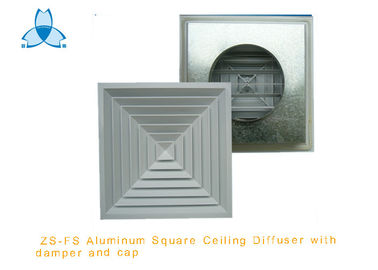

    Air Conditioning Square Ceiling Diffuser With Damper and Cap



    Construction:



    Frame:High quality extruded aluminum alloy profile with 27.5mm width border



    Core:High quality extruded aluminum ally profile



    Material thickness:0.8mm,1.0mm for option



    Color: white can also follow customer’s requirement



    Surface finish: powder coated/Anodized.



    Size:Face size= neck size + 145mm



    Border width:32mm



    Height:50mm



    Features:



    1. Excllent appearance , fit for supply airflow



    2. The multiplayer cone divided the air into many layers of swift puffs, quickly mixing the inlet air and interior together



    3.Louvered type core is fixed to frame with aluminum pins loaded with steel springs.Core can be easily removable and interchangeable to allow for maximum flexibility in the installation, maintenance and damper



    adjustment.4. Dampers can be installed so as to adjust airflow



    Usage:



    It is used for supply and extract air applications for bathrooms kitchens and external walls of the buildings. It generally are widely used for air outlet of air conditioner.



    Packing: Carton



    Payment: 30% prepayment by T/T before shipment, the balance of payment before shipment.
