| Brand Name: | Zhisheng |
| Model Number: | ZS-CB-1600 |
| MOQ: | 100 pieces |
| Delivery Time: | about 15 days upon receipt of deposit |
Paper Pre Air Filter For Medium - Efficiency Filters Or Hepa Filters
Pleated filter
Water-resistant cardboard frame
High dust holding capacity syntheic media
Long service life,Low pressure drop
With a unique filter media,Gas Turbine Prefilter provides the highest efficiency and longest service life available in a panel type filter,together with a low pressure drop.Specifically designed for gas turbine installations,this extended surface filter gives premium performance in such installations,for a wide usage as a prefilter to extend the life of the final filter.
Specification:
| Product Details | Type | Panel filter, Pleated filter | |
| Feature | Large dust capacity,low drop | ||
| Frame | Cardboard/aluiminum/galvanzied | ||
| Media | Synthetic fiber | ||
| Size | Standard or Customerized | ||
| Metal gauze | Galvanzied/aluminum net | ||
| Efficiency | 30-50% (merv 7-merv 9) | ||
| Class | G3,G4 or F5 | ||
Size and specification:
| Model | Outside dimensions(mm) |
Initial resistance(Pa) |
Rated air flow(m3/h) |
Efficiency(%) | Material |
| ZS-CB-3200 | 595x595x46 | 30 | 3200 | 30%(G3) | Media :Synthetic fiber |
| ZS-CB-1600 | 595x295x46 | 1600 | Frame :cardboard | ||
| ZS-CB-2000 | 484x484x44 | 2000 | Metal gauze:Galvanized Steel/Aluminum alloy |

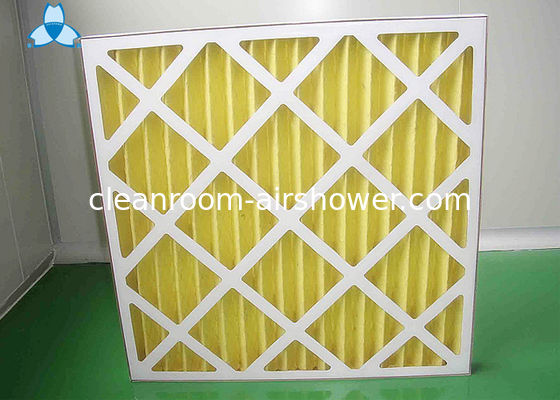

Picture:
Payment Term:
30% prepayment by T/T at order, the balance of payment before shipment.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We care of your complain within 48hours.
|
|
