| MOQ: | 1 set |
| Standard Packaging: | plywood case |
| Delivery Period: | about 15 days upon receipt of deposit |
| Payment Method: | T/T, Western Union |
| Supply Capacity: | 200 Set/Sets per Month |

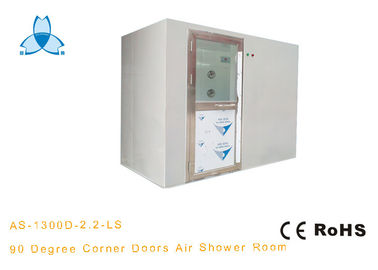

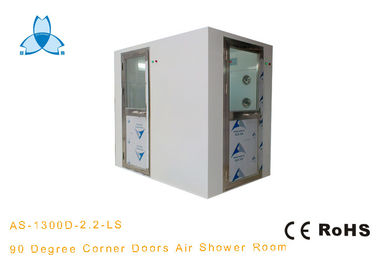

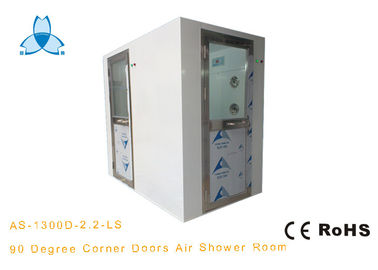

90 Degree Corner Doors L Type Automatic Industrial Air Shower Cleanroom
Description:
Clean air shower room is used for when a person into clean room to blow off the dust of person or cargo
surface to keep the cleanliness of the clean room.
Air in clean air shower room is pressed into plenum chamber by low-noise centrifugal fan ,and then it”s
pressed out by HEPA filter .The clean air sprays out from sides,blowing off the personnel and tool”s
surface,that it”s recycle into pre-filter by blower.
Technical Parameter:
| Product type | Automatic Industrial Air Shower Cleanroom |
| Material for casing | 1.2mm cold rolled steel with powder coated for outside and inside casing, stainless steel for base |
| Material for doors | W800MM Stainless steel single-leaf swing doors |
| Nozzles | Stainless steel |
| Door leaf | W800mm Single-leaf |
| Door type | Manual swing doors |
| Blowing way | Two sides blowing |
| Control system | English intelligent control panel with human voice |
| Locks | Electric lock |
| HEPA filter efficinecy: | H13 |
| Pre filter | G3 |
| Light | Philipines brand |
| Photoelectric sensor | OMRON brand |
| Shower time | 0-60s adustable |
| Spurt wind speed | 22-25m/s above |
| Power supply | AC 380V/50HZ/3PH |
| Safeguard | Leakage switch and thermal overload relay (Protect people from electric leakage) |
Size and specificaton:
| Product | Automatic Industrial Air Shower Cleanroom |
| Model | AS-1300D-2.2-LS |
| External dimensions (mm) | W1300*D2200*H2050MM |
| Internal dimensions WxHxD(mm) | W800*D2000*H1950MM |
| Doors | 2 sets of swing door |
| Door closer | 2 sets (outside) |
| Lock | 2 sets of electric locks interlocked |
| Suitable person | Three person |
| Nozzles | 6+6=12 PCS(2-side blowing) |
| Blower fan | 2 sets |
| Blow power(W) | 800W |
| Weight(kg) | Appro.360 |
| HEPA filter size | 610x610x69mm |
| HEPA filter qty | 2 PCS |
| HEPA filter efficiency | 99.99% @ 0.3um |
| Photolectric sensor | 1 PCS |
| Fluorescent Lamp | 1 x 20W |
| Nozzle diameter | 32mm |
| Air shower time | 0-60 s Adjustable |
| Spurt wind speed | 20~25m/s |
| Power Supply | AC380V/50Hz/3Ph |
| Control system | Microcomputer control circuit board |
Air Shower Drawing:
Packing: Plywood Case
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international
Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and
the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Replacement parts:
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
Professional service:
Fast reply in 12 hours if we receive any inquiry or request from customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
30% prepayment by T/T at order, the balance of payment before shipment.
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
We have CE and ROHS Certificate for air shower
