| MOQ: | 1 set |
| Standard Packaging: | plywood case |
| Delivery Period: | about 15 days upon receipt of deposit |
| Payment Method: | T/T, Western Union |
| Supply Capacity: | 200 Set/Sets per Month |

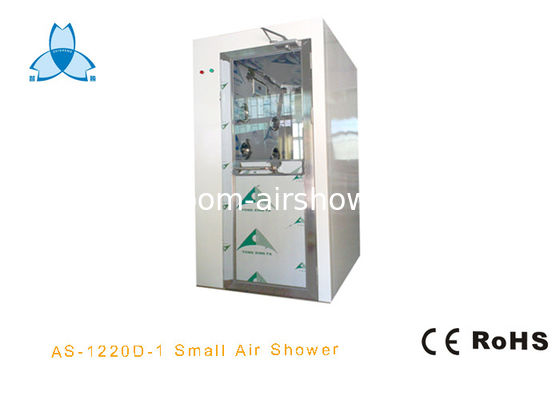

Powder-Coated Steel Cleanroom Air Shower For Micro-electronics And Semiconductors
Description:
Cleanroom Air Showers are self contained cabinets installed at entrances to cleanrooms and other controlled environments.
They minimize particulate matter entering or exiting the clean space. Personnel and cargo entering or exiting the controlled environment are "scrubbed" by high velocity HEPA-filtered air jets
with velocities of 20-25m/s. Contaminated air is then drawn through the base within the unit, filtered and recirculated.
Technical Parameter:
| Product type |
Powder-Coated Steel Cleanroom Air Shower For Micro-electronics And Semiconductors
|
| Material for casing | Power coated steel for ouside, stainless steel 304 for inneer |
| Material for doors | Stainless steel 304 single-leaf swing doors |
| Nozzles | Stainless steel |
| Door leaf | Single-leaf |
| Door type | W790mm Manual swing doors |
| Blowing way | 2- side blowing |
| Control system | English IC intelligent control panel with English human voice |
| Locks | Electric lock |
| HEPA filter efficinecy: | H13 |
| Pre filter | G3 |
| Light | Philips brand |
| Photoelectric sensor | OMRON brand |
| Shower time | 0-99s adustable |
| Spurt wind speed | 20-25m/s above |
| Power supply | AC 380V/50HZ/3PH |
| Safeguard | Leakage switch and thermal overload relay (Protect people from electric leakage) |
Size and specificaton:
| Product | Powder-Coated Steel Cleanroom Air Shower For Micro-electronics And Semiconductors |
| Model | AS-1220D-1 |
| External dimensions (mm) | W1220*D1000*H2140MM |
| Internal dimensions WxHxD(mm) | W790*D900*H2000MM |
| Doors | 2 sets of swing door |
| Door closer | 2 sets (outside) |
| Lock | 2 sets of electric locks interlocked |
| Suitable person | One person |
| Nozzles | 6+6=12 PCS(2-side blowing) |
| Blower fan | 1 set |
| Blow power(W) | 1000W |
| Weight(kg) | Appro.300 |
| HEPA filter size | 610x610x69mm |
| HEPA filter qty | 1 PCS |
| HEPA filter efficiency | H13 |
| Photolectric sensor | ORMON 1 PCS |
| Fluorescent Lamp | Philips 1x 20W |
| Nozzle diameter | 32mm |
| Air shower time | 0-99 s Adjustable |
| Spurt wind speed | 20~25m/s |
| Power Supply | AC380V/50Hz/3Ph |
| Control system | Microcomputer control circuit board |
Optional: 1. Emergency stop buttons
2. Ionizer Nozzle
3. Interphone
Drawing:
Packing: Plywood Case
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international
Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and
the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Replacement parts:
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Air Shower Questions:
The below questions will help establish what air shower you need:
1. Is the air shower being used to enter a clean room environment?
2. Is the air shower being used to exit a contaminated enviroment?
3. Will the air shower be washed down or cleaned with harsh chemicals?
4. Will the air shower be used in a food processing facility?
5. How Mnay people will be going through the air shower at a given priod of time?
Why you choose ZHISHENG Company ?
Professional service:
Fast reply in 12 hours if we receive any inquiry or request from customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
30% prepayment by T/T at order, the balance of payment before shipment.
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
We have CE and ROHS Certificate for air shower
