|Place of Origin:||Guangdong, China (Mainland)|
|Minimum Order Quantity:||1 set|
|Packaging Details:||plywood case|
|Delivery Time:||about 15 days upon receipt of deposit|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||200 Set/Sets per Month|
|Type:||Single-leaf Swing Doors||After-sales Service Provided:||Engineers Available To Service Machinery Overseas|

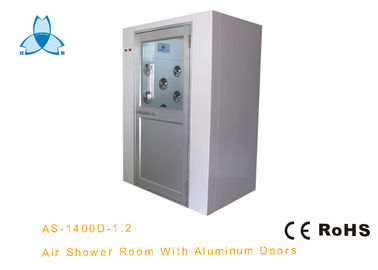

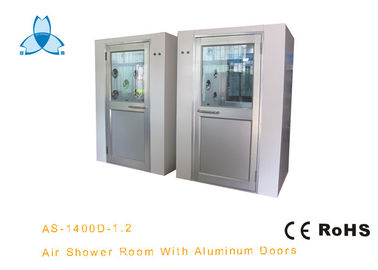

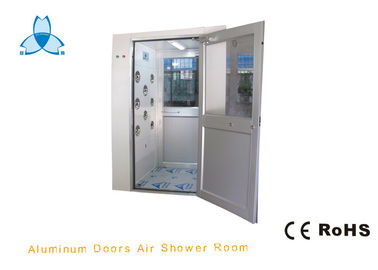

W900MM Aluminum Swing Doors Air Jet Shower Air Shower Clean Room To Vietnam
Width 900mm Aluminum Single-leaf Swing Doors
Small top and small base
Air shower is a frequently used equipment in clean room. It removes dust particles on the surface of the goods effectively to so that dusts will not be brought in to the clean room by goods.
Meanwhile, air shower works as an air lock which separates clean area and unclean area to keep the pressure in the clean room steady.
Application: Air shower is widely used in LCD and Optoelectronic Display, PCB, microelectronics, dust-free coating, aseptic packaging, medical care, Pharmacy,auto glass and precision parts.
1. Controlled by English IC control panel, electric interlocked, automatically blowing by photoelectric sensor.
2. Showing time canb e adjusted from 0-99 seconds ont the display of control panel, it is easy to control it.
3. Base and nozzles are used of stainless steel
4,email@example.comμm, Efficiency can reach firstname.lastname@example.orgμm with pre filter and hepa filter.
5. Spurt wind speed: 22-25 m/s
|Product type||W900MM Aluminum Swing Doors Air Jet Shower Air Shower Clean Room To Vietnam|
|Material for casing||Cold rolled steel with powder coated for outside and outside cabinets|
|Material for doors||Aluminum single-leaf swing doors|
|Door type||W900mm Manual swing doors|
|Blowing way||2- side blowing|
|Control system||English IC intelligent control panel with English human voice|
|HEPA filter efficinecy:||99.99% at 0.3um|
|Photoelectric sensor||OMRON brand|
|Shower time||0-99s adustable|
|Spurt wind speed||20-25m/s above|
|Power supply||AC 380V/50HZ/3PH|
|Safeguard||Leakage switch and thermal overload relay (Protect people from electric leakage)|
Size and specificaton:
|Product||W800mm L Type Stainless steel Swing Doors Air Shower Cleanroom To Indonesia|
|External dimensions (mm)||W1400*D1200*H2050MM|
|Internal dimensions WxHxD(mm)||W900*D1100*H1920MM|
|Doors||2sets of Aluminum single-leaf swing door|
|Door closer||2 sets (inside)|
|Lock||2sets of electric locks interlocked|
|Suitable person||1-2 persons|
|Nozzles||8+8=16 PCS(2-side blowing )|
|Blower fan||2 sets|
|HEPA filter size||610x610x69mm|
|HEPA filter qty||2 PCS|
|HEPA filter efficiency||99.99% at 0.3um|
|Photolectric sensor||ORMON 1 PCS|
|Fluorescent Lamp||Philips 1x 20W|
|Air shower time||0-99 s Adjustable|
|Spurt wind speed||25-27m/s|
|Control system||Microcomputer control circuit board|
Optional: 1. Emergency stop buttons
2. Ionizer Nozzle
Air Shower Details:
Packing: Plywood Case
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international
Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and
the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Air Shower Questions:
The below questions will help establish what air shower you need:
1. Is the air shower being used to enter a clean room environment?
2. Is the air shower being used to exit a contaminated enviroment?
3. Will the air shower be washed down or cleaned with harsh chemicals?
4. Will the air shower be used in a food processing facility?
5. How Mnay people will be going through the air shower at a given priod of time?
Why you choose ZHISHENG Company ?
Fast reply in 12 hours if we receive any inquiry or request from customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
30% prepayment by T/T at order, the balance of payment before shipment.
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
We have CE and ROHS Certificate for air shower
