Small Cleanroom Air Shower Width 1150mm , Air Shower Tunnel With Automatical Blowing

Small Cleanroom Air Shower Width 1150mm , Air Shower Tunnel With Automatical Blowing

MOQ: 1 set
Standard Packaging: plywood case
Delivery Period: about 15 days upon receipt of deposit
Payment Method: T/T, Western Union
Supply Capacity: 200 Set/Sets per Month
Detail Information
Place of Origin
Guangdong, China (Mainland)
Brand Name
ZHISHENG
Certification
ISO 9001/CE/ROHS
Model Number
AS-1150D-1
Dimension:
W1150xD1000xH2100mm
Doors:
Stainless Steel
Material:
Power Coated Steel
Wind Speed:
25-30m/s
Type:
Single-leaf Swing Doors
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Warranty:
1 Year
Minimum Order Quantity:
1 set
Packaging Details:
plywood case
Delivery Time:
about 15 days upon receipt of deposit
Payment Terms:
T/T, Western Union
Supply Ability:
200 Set/Sets per Month
High Light:

air shower system

,

air shower clean room

,

Cleanroom Air Shower Width 1150mm

Product Description



Full Glass Swing Door Width 1150mm Small Cleanroom Air Shower With Automatical Blowing



Width 800mm Stainless steel Single-leaf Swing Door with Full Glass



Big top and big base



Air shower.pdf



Description:



Air shower is a frequently used equipment in clean room. It removes dust particles on the surface of the goods effectively to so that dusts will not be brought in to the clean room by goods.



Meanwhile, air shower works as an air lock which separates clean area and unclean area to keep the pressure in the clean room steady.



Application:  Air shower is widely used in LCD and Optoelectronic Display, PCB, microelectronics, dust-free coating, aseptic packaging, medical care, Pharmacy,auto glass and precision parts.





Features:



1. Controlled by English IC control panel, electric interlocked, automatically blowing by photoelectric sensor.



2. Showing time canb e adjusted from 0-99 seconds ont the display of control panel, it is easy to control it.



3. Base and nozzles are used of stainless steel



4,99.99%@0.3μm, Efficiency can reach 99.99%@0.3μm with pre filter and hepa filter.



5. Spurt wind speed: 22-25 m/s





Technical Parameter:



Product type  Full Glass Swing Door Width 1150mm Small Cleanroom Air Shower With Automatical Blowing
Material for casing Cold rolled steel with powder coated for outside  cabinet, stainelss steel for inside cabinet
Material for doors single-leaf swing doors
Nozzles Stainless steel
Door leaf Single-leaf
Door type W800mm Manual swing doors
Blowing way 2- side blowing
Control system English IC intelligent control panel with English human voice
Locks Electric  lock
HEPA filter efficinecy: 99.99% at 0.3um
Pre filter G3
Light Philips brand
Photoelectric sensor OMRON brand
Shower time 0-99s adustable
Spurt wind speed 25-30 m/s
Power supply AC 380V/50HZ/3PH
Safeguard Leakage switch and thermal overload relay (Protect people from electric leakage)



Size and specificaton:



Product Full Glass Swing Door Width 1150mm Small Cleanroom Air Shower With Automatical Blowing
Model AS-1150D-1
External dimensions (mm) W1150*D1000*H2100MM
Internal dimensions WxHxD(mm) W800*D900*H1960MM
Doors 2sets of SS Single-leaf swing door with full glass
Door closer 2 sets (outside)
Lock 2sets of electric locks interlocked
Suitable person 1-person
Nozzles 6+6=12 ( Two sides blowing)
Blower fan 1 sets
Blow power(W) 800W
Weight(kg) Appro.250
HEPA filter size 610x610x69mm
HEPA filter qty 1 PCS
HEPA filter efficiency 99.99% at 0.3um
Photolectric sensor ORMON 1 PCS
Fluorescent Lamp Philips 1x 20W
Nozzle diameter 32mm
Air shower time 0-99 s Adjustable
Spurt wind speed 25-30m/s
Power Supply AC380V/50Hz/3Ph
Control system Microcomputer control circuit board



Optional:  1. Emergency stop buttons



                 2. Ionizer Nozzle



                 3. Interphone



Air Shower Details:

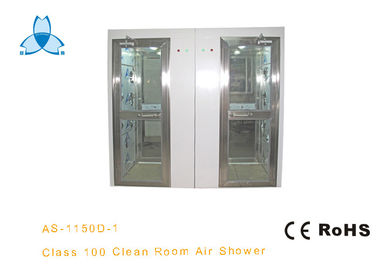

Small Cleanroom Air Shower Width 1150mm ,  Air Shower Tunnel With Automatical Blowing 0Small Cleanroom Air Shower Width 1150mm ,  Air Shower Tunnel With Automatical Blowing 1







Drawing:

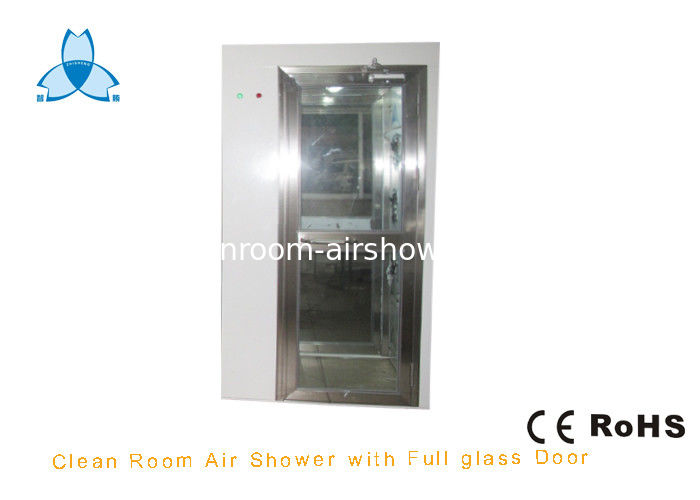

Small Cleanroom Air Shower Width 1150mm ,  Air Shower Tunnel With Automatical Blowing 2Small Cleanroom Air Shower Width 1150mm ,  Air Shower Tunnel With Automatical Blowing 3

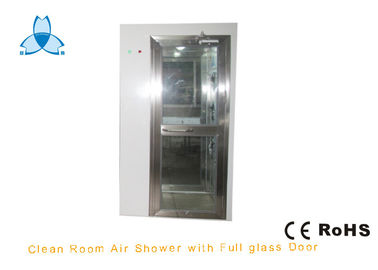

Small Cleanroom Air Shower Width 1150mm ,  Air Shower Tunnel With Automatical Blowing 4Small Cleanroom Air Shower Width 1150mm ,  Air Shower Tunnel With Automatical Blowing 5





Packing: Plywood Case



Testing in factory:



All of equipment will be individually tested for safety and performance in accordance with international



Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and



the units individual results for each unit.



Testing before shipment:



1. Appearance inspection

2. Electrical safety tests

3. Air wind speed testing

4. Function testing



Warranty:



The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual with testing report.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.



Replacement parts:



1. HEPA filter: It should be changed in half or one year once.

2. Pre filter: It should be changed in 3-6 month once.



Air Shower Questions:



The below questions will help establish what air shower you need:



1. Is the air shower being used to enter a clean room environment?



2. Is the air shower being used to exit a contaminated enviroment?



3. Will the air shower be washed down or cleaned with harsh chemicals?



4. Will the air shower be used in a food processing facility?



5. How Mnay people will be going through the air shower at a given priod of time?





Why you choose ZHISHENG Company ?



Professional service:



Fast reply in 12 hours if we receive any inquiry or request from customer

Familiar with equipment.

Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.





Delivery time:

Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.



After sales service:



We respect your feed back after receive the goods.

• We provide 1 year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.



Payment Term:

30% prepayment by T/T at order, the balance of payment before shipment.




Our Services

Cleanroom equipments,like air shower, FFU. It is one-year warranty.



Certificate:


We have CE and ROHS Certificate for air shower
