| Brand Name: | Zhisheng |
| Model Number: | ASS-1300T-1.2 |
| MOQ: | 1 set |
| Delivery Time: | about 15 days upon receipt of deposit |
| Payment Terms: | T/T, Western Union |

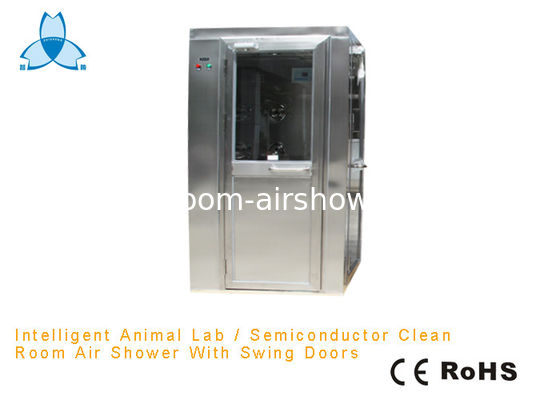

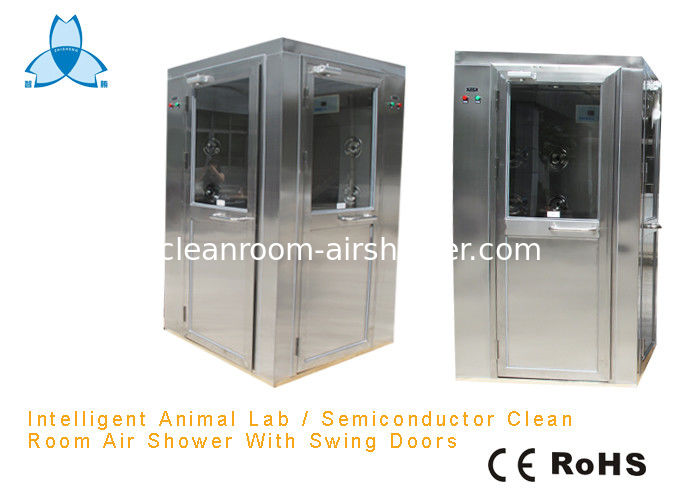

GMP Pharmaceutical Stainless Steel Air Shower With Three Side Blowing AC380V
L type Single-leaf Swing doors, width 800mm
Big Top and Big Base
Stainless steel air shower is clean room and assembly type clean small room equipment.
For blowing into the purification plant personnel and carry dust attached to the surface of the article,
but also play the role of air shower airlock to prevent unpurified air into the clean areas.
It is making personal purification and effective devices to prevent outdoor air pollution clean area
1. Electronic/microelectronics/precision electronic, biological manufacturing industry, the medical industry,
food processing, ITO model, liquid crystal and conductive photoelectric suggests that the industry, PCB,
SMT manufacturing industry, aerospace, voyage, automobile manufacturing industry, dust-free painting industry and other industry.
1. Using efficiency increased by 50% - round air without collision, centrifugal rotating and tension continuously strengthen, quickly take away the dust particles.
2. Dust cleaning effect increased by 30% - using CFD fuild movement student principle, it can save more time at same working status.
3. Saving energy 28% - low consumption power, promote efficiency, intelligent standby.
4. Lifespan increased 35% - usage life increased 180 days compared with original foundation.
5. Automatic sensor - decreased the chance of pollution and makes working become more convenient.
6. Independent section for air shower tunnel - adopts individual section to combine into a air shower tunnel.
This method can clean air step by step and achieve high efficiency and energy saving purpose.
Features:
| Product type | GMP Pharmaceutical Stainless Steel Air Shower With Three Side Blowing AC380V |
| Material for casing | T=1.2 Stainless steel 304 for Outside and inside casing |
| Material for doors | Stainless steel 304 with half temper glass |
| Nozzles | Stainles steel |
| Door leaf | Single leaf |
| Door type | Manual swing door |
| Blowing way | Two-side blowing, |
| Control system | English IC intelligent control panel with human voice |
| Locks | Electric mortise lock |
| HEPA filter efficinecy: | H14 |
| Pre filter | G3 |
| Light | brand |
| Photoelectric sensor | OMRON brand |
| Shower time | 0-99s adustable |
| Spurt wind speed | 22-25m/s above |
| Power supply | AC220V/50HZ/1PH |
| Safeguard | Leakage switch and thermal overload relay (Protect people from electric leakage) |
Standar size and specificaton:
| Product | GMP Pharmaceutical Stainless Steel Air Shower With Three Side Blowing AC380V |
| Model | AS S-1300T-1.2 |
| External dimensions (mm) | W1300*D1300*H2100MM |
| Internal dimensions WxHxD(mm) | W800*D1200*H1960MM |
| Doors | 2sets of SS single-leaf swing door |
| Door closer | 2 sets (Outside) |
| Lock | 2sets of electric locks interlocked |
| Suitable person | One person |
| Nozzles | 6+6+4=16 PCS(3-side blowing ) |
| Blower fan | 2 sets |
| Blow power(W) | 800W |
| Weight(kg) | Appro.280 |
| HEPA filter size | 610x610x90mm |
| HEPA filter qty | 2 PCS |
| HEPA filter efficiency | H14 |
| Photolectric sensor | ORMON 1 PCS |
| Fluorescent Lamp | 1x 20W |
| Nozzle diameter | 32mm |
| Air shower time | 0-99 s Adjustable |
| Spurt wind speed | 22-25m/s |
| Power Supply | AC220V/50Hz/1Ph |
| Control system | Microcomputer control panel with human invoice prompt, electric interlock, automatical blowing by photoelectric sensor |
Air Shower Details:
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Replacement parts:
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
Professional service:
Fast reply in 12 hours if we receive any inquiry or request from customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Malaysia and so on.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
30% prepayment by T/T at order, the balance of payment before shipment.
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
We have CE and ROHS Certificate for air shower
