|Weight:||380KG||Material:||SS For Base|
|Suitable:||Three Person||Door:||Stainless Steel 304|
Air Jet Shower,
class 100 clean room,
PLC Control Clean Room Air Shower

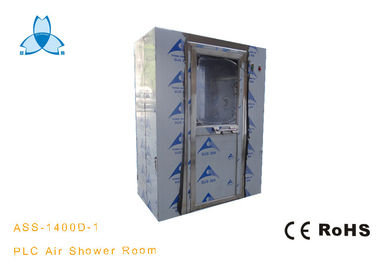

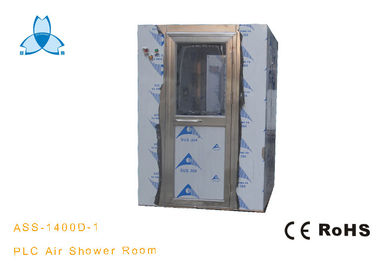

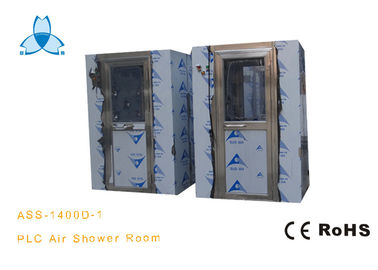

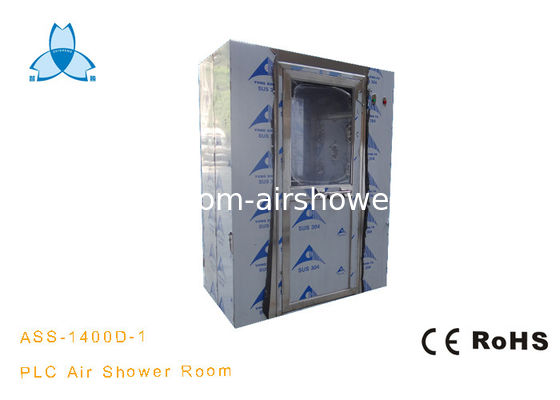

PLC Control Stainless Steel Clean Room Air Shower Room With Alcohol Spring Machine
Control System: OMRON PLC
Clean Room Air shower is used clean workshops and clean rooms, for not only removing dust from the surface of people and goods,
but also playing as a role of air lock valve to prevent unpurified air from flowing into the clean area.
The air shower can be used with all supporting clean room and clean workshops.
As air shower , installed in the clean room entrance and used to remove the dust on personnel or goods entering through it,
The clean room air shower, which is composed of case, fan(s), filter(s), nozzles and electric control system, is photoelectrically controlled, electronically interlocked and automatic blowing.
The materials for case can be chosen from all cold rolled steel plate with powder coated, stainless steel inside and cold rolled steel plate with powder coated outside, and all stainless steel
(SS201 or SS304; Thickness: 1.0 mm or 1.2 mm). The air shower time is adjustable from 1-99 seconds, compact and sound in structure.
The air purifier is high efficiency .An air shower passage can be made up of several air showers.
1. Photoelectric sensor, automatic blow
2. Electronically interlocked with double stainless door
3. The air shower with stainless nozzles
4. The air shower with audio system
5. The air shower with Auto, Stop, Manual, Emergency Stop function keys
6. The air shower with an Emergency Stop push button: Will override the operating cycle to release the door locks immediately
7.we are air shower manufacter ,so we can ensure the lower price and high quality.
8. we can supply the complete air shower room,and you can use it asap once received.
Food factory, Semiconductor Factory, Microelectronics Factory, Biological Pharmaceutical Factory, etc.
|Product type||PLC Control Stainless Steel Clean Room Air Shower Room With Alcohol Spring Machine|
|Material for casing||T=1.2 Stainless steel 304 for Outside and inside casing and base|
|Material for doors||Stainless steel 304 with half temper glass|
|Door leaf||Single leaf|
|Door type||Manual swing door|
|Blowing way||3-side blowing,|
|Control system||OMRON PLC with English IC intelligent control panel with human voice|
|Locks||Electric mortise lock|
|HEPA filter efficinecy:||H13|
|Photoelectric sensor||OMRON brand|
|Shower time||0-99s adustable|
|Spurt wind speed||22-25m/s above|
|Safeguard||Leakage switch and thermal overload relay (Protect people from electric leakage)|
Standar size and specificaton:
|Product||PLC Control Stainless Steel Clean Room Air Shower Room With Alcohol Spring Machine|
|External dimensions (mm)||W1500*D1000*H2140MM|
|Internal dimensions WxHxD(mm)||W800*D910*H2000MM|
|Doors||2 sets of SS single-leaf swing door|
|Door closer||2 sets (Outside)|
|Lock||2sets of electric locks interlocked|
|Suitable person||Three person|
|Nozzles||6+6=12PCS(2-side blowing )|
|Blower fan||2 sets|
|HEPA filter size||610x610x90mm|
|HEPA filter qty||2 PCS|
|HEPA filter efficiency||H13|
|Photolectric sensor||ORMON 1 PCS|
|Fluorescent Lamp||Philips 1x 20W|
|Air shower time||0-99 s Adjustable|
|Spurt wind speed||22-25m/s|
|Control system||Microcomputer control panel with human invoice prompt, electric interlock, automatical blowing by photoelectric sensor|
Air Shower Details:
Air Shower Drawing:
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
Fast reply in 12 hours if we receive any inquiry or request from customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
30% prepayment by T/T at order, the balance of payment before shipment.
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
We have CE and ROHS Certificate for air shower
