Product Details:
|
| Ex Dimension: | W1750xD1000xH2100MM | Voltage: | 380V/50HZ/3PH |
|---|---|---|---|
| Door Width: | 1150mm | Material: | SS For Base |
| Suitable: | One Person | Door: | Stainless Steel 304 |
| High Light: | Air Jet Shower,air showers for clean rooms,Automatic Blowing Stainless Steel Air Shower |
||

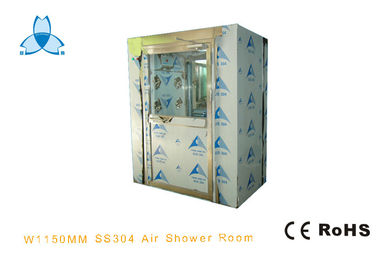

Stainless Steel Air Shower Room With Width 1150mm Single-leaf Swing Door
Door Width: 1150MM
Door type: Single-leaf Swing Door
Stainless steel air shower is clean room and assembly type clean small room equipment.
For blowing into the purification plant personnel and carry dust attached to the surface of the article,
but also play the role of air shower airlock to prevent unpurified air into the clean areas.
It is making personal purification and effective devices to prevent outdoor air pollution clean area
Meanwhile, air shower works as an air lock which separates clean area and unclean area to keep the pressure in the clean room steady.
Applications:
Food factory, Semiconductor Factory, Microelectronics Factory, Biological Pharmaceutical Factory, etc.
Features:
| Product type | Stainless Steel Air Shower Room With Width 1150mm Single-leaf Swing Door |
| Material for casing | T=1.2 Stainless steel 304 for Outside and inside casing and base |
| Material for doors | Stainless steel 304 with half temper glass |
| Nozzles | Stainles steel |
| Door leaf | Single leaf |
| Door type | Manual swing door |
| Blowing way | 2-side blowing, |
| Control system | OMRON PLC with English IC intelligent control panel with human voice |
| Locks | Electric magnetic lock |
| HEPA filter efficinecy: | H13 |
| Pre filter | G3 |
| Light | Philips brand |
| Photoelectric sensor | OMRON brand |
| Shower time | 0-99s adustable |
| Spurt wind speed | 22-25m/s above |
| Power supply | AC380V/50HZ/3PH |
| Safeguard | Leakage switch and thermal overload relay (Protect people from electric leakage) |
Size and specificaton:
| Product | Stainless Steel Air Shower Room With Width 1150mm Single-leaf Swing Door |
| Model | AS-1750D-1 |
| External dimensions (mm) | W1750*D1000*H2100MM |
| Internal dimensions WxHxD(mm) | W1150*D950*H1920MM |
| Doors | 2 sets of SS single-leaf swing door |
| Door closer | 2 sets (Outside) |
| Lock | 2sets of electric magnetic locks interlocked |
| Suitable person | One or two person |
| Nozzles | 6+6=12PCS(2-side blowing ) |
| Blower fan | 2 sets |
| Blow power(W) | 800W |
| Weight(kg) |
Appro.300 |
| HEPA filter size | 610x610x90mm |
| HEPA filter qty | 2 PCS |
| HEPA filter efficiency | H13 |
| Photolectric sensor | ORMON 1 PCS |
| Fluorescent Lamp | Philips 1x 20W |
| Nozzle diameter | 32mm |
| Air shower time | 0-99 s Adjustable |
| Spurt wind speed | 22-25m/s |
| Power Supply | AC380V/50Hz/3Ph |
| Control system | Microcomputer control panel with human invoice prompt, electric interlock, automatical blowing by photoelectric sensor |
Air Shower Drawing:
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Replacement parts:
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
Professional service:
Fast reply in 12 hours if we receive any inquiry or request from customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
30% prepayment by T/T at order, the balance of payment before shipment.
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
We have CE and ROHS Certificate for air shower
