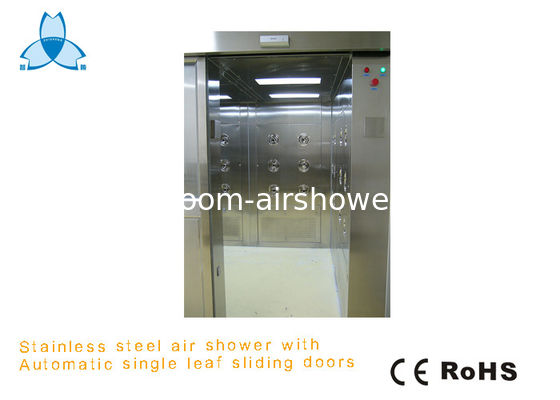

Automatic Blowing Clean Room Stainless Steel Air Shower With Single Leaf Auto Sliding Doors
Doors:Automatic Single Leaf Sliding Doors
Width: 1000mm
Description:
Stainless steel air shower for clean room is a kind of partial clean equipment with rather strong universality and is installed at the partition between the clean and non-clean rooms. Its used for the personnel or matters to shower before entering the clean area. After using it, the dust could effectively be reduced to enter the clean area and maintain the normal working status.
Blowing type: single-side blowing, double-side blowing, three-side blowing.
Parameter:
| Product type | Automatic Blowing Clean Room Stainless Steel Air Shower With Single Leaf Auto Sliding Doors |
| Material for casing | T=1.2MM Full SS304 for External and internal cabinet |
| Material for doors | Stainless steel 304 |
| Nozzles | Stainles steel |
| Door leaf | Single leaf |
| Door type | Manual swing door |
| Blowing way | Three-side blowing |
| Control system | English intelligent control panel with human voice |
| Locks | Electric mortise lock |
| HEPA filter efficinecy: | 99.99% |
| Pre filter | G3 |
| Light | Philips brand |
| Photoelectric sensor | OMRON brand |
| Shower time | 0-99s adustable |
| Spurt wind speed | 25-27m/s above |
| Power supply | 380V/50HZ/3PH |
| Safeguard | Leakage switch and thermal overload relay (Protect people from electric leakage) |
size and specificaton:
| Product | Automatic Blowing Clean Room Stainless Steel Air Shower With Single Leaf Auto Sliding Doors |
| Model | ASS-1800D-6.5 |
| External dimensions (mm) | W1800*D6500*H2100 |
| Internal dimensions WxHxD(mm) | W1000*D6400*H2000 |
| Doors | 2 sets of SS single-leaf swing door |
| Door closer | 2 sets (Outside) |
| Lock | 2sets of electric magnetic locks interlocked |
| Suitable person | 10-20 people |
| Nozzles | 36+36=72(2-side blowing) |
| Blower fan | 12 sets |
| Blow power(W) | 4800W |
| Weight(kg) | Appro.680 |
| HEPA filter size | 610x610x90mm |
| HEPA filter qty | 12 PCS |
| HEPA filter efficiency | H13 |
| Photolectric sensor | ORMON 2 PCS |
| Fluorescent Lamp | Philips 6x 20W |
| Nozzle diameter | 32mm |
| Air shower time | 0-99 s Adjustable |
| Spurt wind speed | 22-25m/s |
| Power Supply | AC380V/50Hz/3Ph |
| Control system | Microcomputer control panel with human invoice prompt, electric interlock, automatical blowing by photoelectric sensor |
Air shower Details:
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment.
Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Replacement parts:
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
Professional service:
Fast reply in 12 hours if we receive any inquiry or request from customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
30% prepayment by T/T at order, the balance of payment before shipment.
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
We have CE and ROHS Certificate for air shower
|
|
