|Wind Speed:||22-25m/s||Class:||100 Class|
Air Jet Shower,
class 100 clean room,
Emergency Switch Clean Room Air Showers
Emergency Switch Clean Room Stainles Steel Air Shower With One Large Blower Fan
This is a kind of local purifying equipment, fixed on the partition between clean room and unclean room.
It is used for shower and removing dust when personnel or objects entering into clean area. Effectively reduce dust source from entering into clean area after used, and keep clean area in normal working state.
Shower way: single-side shower, double-side shower, three-side shower, top shower
Clean Room Air Shower Features:
1.Photoelectric control, automatic shower.
2.Circulated air design keeps shower area clean in non-shower state.
3.Double doors adopt electric interlocking to force shower; double doors may be made as automatic movable door.
4.Made as negative pressure and anti-exploding air shower according to users’ requirement.
5.Equipped with the device to remove static.
6.Carry on air brake, cushion type and other particular design, manufacturing.
1. Manual swing door / automatic sliding door/High speed scroll shutter door
2. HEPA filter or ULPA filter
3. Material for cabinet: cold-rolled steel plate with powder coated / SUS#201 / SUS#304
4. Common fluorescent lamp / UV Sterilizer lamp
5. With voice announce
|Product type||Emergency Switch Clean Room Stainles Steel Air Shower With One Large Blower Fan|
|Material for casing||T=1.2MM Full SS304 for External and internal cabinet|
|Material for doors||Stainless steel 304|
|Door leaf||Single leaf|
|Door type||Manual swing door|
|Blowing way||Three-side blowing|
|Control system||English intelligent control panel with human voice|
|Locks||Electric mortise lock|
|HEPA filter efficinecy:||99.99%|
|Photoelectric sensor||OMRON brand|
|Shower time||0-99s adustable|
|Spurt wind speed||25-27m/s above|
|Safeguard||Leakage switch and thermal overload relay (Protect people from electric leakage)|
size and specificaton:
|Product||Emergency Switch Clean Room Stainles Steel Air Shower With One Large Blower Fan|

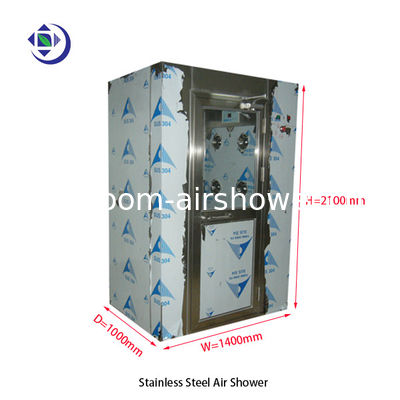

|External dimensions (mm)||W1400*D1000*H2100|
|Internal dimensions WxHxD(mm)||W800*D900*H1920|
|Doors||2 sets of SS single-leaf swing door|
|Door closer||2 sets (Outside)|
|Lock||2sets of electric magnetic locks interlocked|
|Suitable person||1 person|
|HEPA filter size||610x610x90mm|
|HEPA filter qty||1 PCS|
|HEPA filter efficiency||H13|
|Photolectric sensor||ORMON 1 PCS|
|Fluorescent Lamp||Philips 1x 20W|
|Air shower time||0-99 s Adjustable|
|Spurt wind speed||22-25m/s|
|Control system||Microcomputer control panel with human invoice prompt, electric interlock, automatical blowing by photoelectric sensor
Air shower Drawing:
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment.
Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
Fast reply in 12 hours if we receive any inquiry or request from customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
30% prepayment by T/T at order, the balance of payment before shipment.
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
We have CE and ROHS Certificate for air shower
