Automatic Door Opening Air Shower Pass Box , Cleanroom Pass Through Chambers

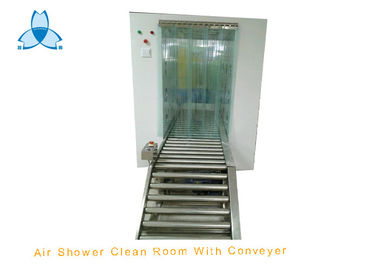

Air Shower Pass Box With Conveyor

Air Shower pass box and conveyor.pdf

Air Shower Pass Box is matched with conveyor, used for full automatic producing line which required clean class level.

Pass box material: Powder coated steel or stainless steel

Pass box can do air shower and non air shower type, on the based design of pass box plus with automatic control system.

Specification:

External dimension: W1300xD1600xH1700MM

Internal dimension: W700xD1600xH1600MM

Material: Cold rolled steel with powder coated for outside and inside, no base

Doors: Anti-static PVC curtain, each one E-stop swtich on entrance and exit side.

Blower Fan: 2 sets

HEPA filter: 610x610x69mm 2 PCS

HEPA efficiency: 99.99%

Pre filter:G3 2 PCS

Light: 2 pcs x 18W

UV light: 2 PCS

Nozzles: stainless steel 24 pcs

Blowing type: 3-side blowing

Air velocity: 22-25m/s

Photoelectric sensor: OMRON brand

Operation control: English IC control panel.

Features:

1. Anti-static PVC curtain for doors, prevent airflow convection, avoiding to pollute clean room.

2. When cargo go into pass box, it will blowing automatically.

3. HEPA filter 99.99%@0.3um

4. G3 PRE Filter

The conveyor material: Stainless steel rollers or belt.

The conveyor running: forward working/backward working/Both forward and backward working.

 The speed of conveyor: 0-0.1m/s

Optional accessories for Pass Box:

1. E-stop

2. UV light

we can offer special size and requirement as per our clients.

Drawing:

Testing in factory:

All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.

Testing before shipment:

1. Appearance inspection

2. Electrical safety tests

3. Function testing

Warranty:

The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual with testing report.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.
