| MOQ: | 50 pieces |
| Standard Packaging: | Carton and Pallet |
| Delivery Period: | about 15 days upon receipt of deposit |
| Payment Method: | Western Union, T/T |
| Supply Capacity: | 500 pieces per month |

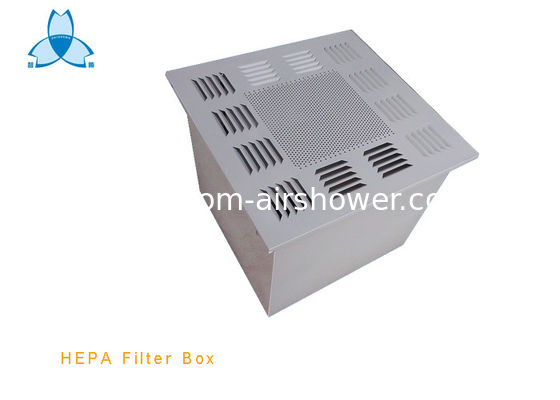

High Efficiency HEPA Filter Box, HEPA Air Supply Unit
Hot Products:
Description
Hepa filter box is an ideal air filtering terminal for the clean room or clean workshop.
It consists of plenum box, Hepa filter, short air inlet tube and outlet air diffusing board etc.
It has an attractive structure, good sealing property and is convenient for both mounting and air volume.
The plenum box has both the heat and sound insulating material put on the inside, which not only purifies the environment, but also has noise elimination effect.
Usage:
It is especially suitable to apply in industries such as micro-electronics, research, precision machinery, medical care, biochemistry.
Standard size and Specification
| Model | Plenum box Size(KxLxH/h) | Rated air flow(m2/h) | HEPA filter dimensions(mm) | Air inlet size (AxB) mm | Duct size mm |
| ZS-GGF-320 | 370x370x500/530 | 400 | 320x320x220 | 250x200 | 380x380 |
| ZS-GGF-484 | 534x534x500/530 | 1000 | 484x484x220 | 320x200 | 540x540 |
| ZS-GGF-610 | 660x660x460/500 | 1000 | 610x610x150 | 320x250 | 670x670 |
| ZS-GGF-630 | 680x680x500/530 | 1500 | 630x630x220 | 320x250 | 690x690 |
| ZS-GGF-915 | 965x660x460/500 | 1500 | 915x610x150 | 550x250 | 975x670 |
| ZS-GGF-1220 | 1270x660x460/500 | 2000 | 1220x610x150 | 630x250 | 1280x670 |
| ZS-GGF-1260 | 1310x680x500/530 | 3000 | 1260x630x220 | 630x250 | 1325x690 |
Material and operating conditions:
| Box Material | Power coated steel |
| Color | White |
| HEPA filter class | H13 |
| HEPA Filter media | Fiberglass or HV fiberglass |
| Initial drop | ≤220pa or 120pa |
| Maximum operating temperature | 80℃ |
| Maximum operating humidity | 80% |
| Efficiency | 99.99% |
Payment Term:
40% prepayment by T/T at order, the balance of payment before shipment.
Packing:
Carton and Plywood Case
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We care of your complain within 48hours.
