| MOQ: | 1 set |
| Standard Packaging: | Pywood case |
| Delivery Period: | about 15 days upon receipt of deposit |
| Payment Method: | T/T, Western Union |
| Supply Capacity: | 2000set per month |

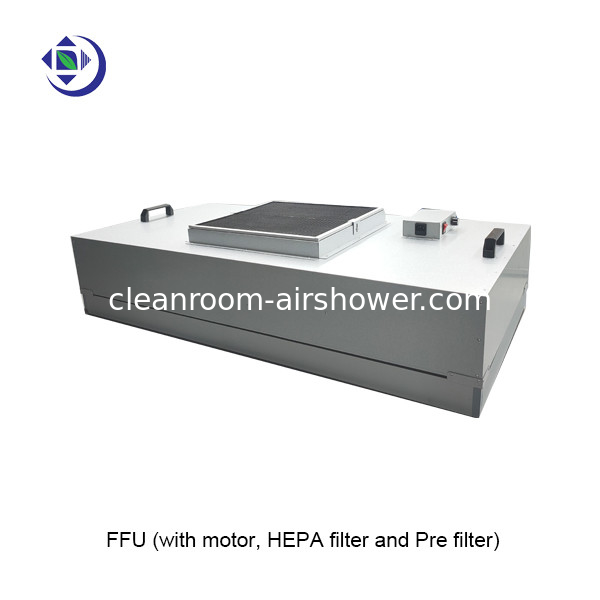

HEPA Fan Filter Unit, FFU with motor, HEPA filter and Pre filter for clean room
Fan Filter Unit.pdf

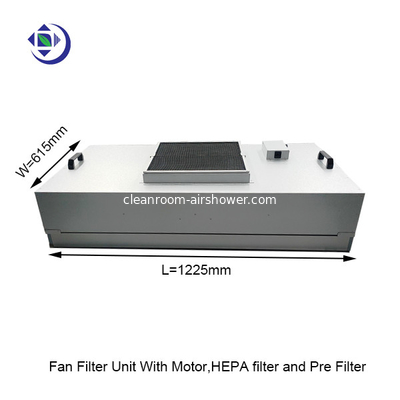

Size: 1225*615mm
Material: gavalume
Motor: 1 set (AC220V, 50HZ,1PH)
HEPA filter:1220*610*69mm
HEPA filter'e efficiency: 99.99% at 0.3um
Pre filter: G1

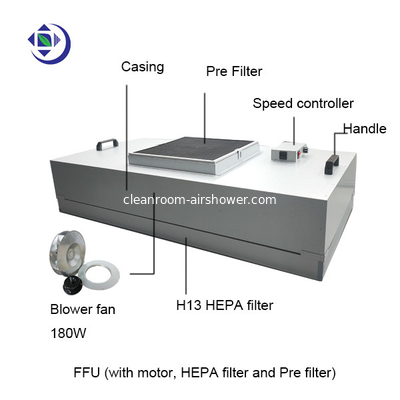

Fan filter units are stand-alone units with integrated HEPA-filter, Pre filter, fan and control system.
Product Description:
Fan filter unit is type of unit used for filtering laminar air and supplying clean air. FFU can be used stand alone or installed modularly. FFU is the the core when doing clean room for a give space including clean booh, laminar flow cabinet, clean bench and modular clean room.
They supply purified air to cleanrooms and laboratories within the life-science, food-and beverage and microelectronic industries by removing harmful airborne particles from recirculating air. Unlike pressurized cleanroom ceiling plenums, FFUs create a positive room pressure that reduces the contamination risk from potential ceiling bypasses.
Features:
1. Low energy consumption
2. Low noise
3. Uniform velocity and large airflow
4. Can remote controlled by computer
Fan filter Unit Applications:
1. For the ceiling of clean room
2. For the clean booth
3. Precison machinery
4. Laser industry precision machinery
5. The production lines which require high purification grade.
6. Pharmaceuficals, medical science and hospital
Size and specifications:
| Model | ZS-FFU610 | ZS-FFU1170 | ZS-FFU1220 | ZS-FFU1170D | |
| Size (mm) | 610x610x240 | 1170x570x240 | 1220x610x240 | 1170x1170x240 | |
| Airflow(m3/h) | 1000 | 1800 | 2000 | 3000 | |
| Air velocity | 0.45m/s±20% | ||||
| HEPA filter | 610x610x69mm | 1170x570x69mm | 1220x610x69mm | 1170x1170x69mm | |
| Efficiency | 99.99% @0.3um | ||||
| Fan(motor) | Power | AC 220V/50Hz;AC110V/60Hz | |||
| Noise(dB) | ≤52 | ≤52 | ≤52 | ≤58 | |
| Optional |
Control panel, Remote control, Primary filter, Pressure gauge |
||||
Group Control is save the cost and the power, and it is easy for controlling the large quantities of fan filter units in the clean room.
Computer group control
If clean room requires lots of FFU, we suggest DC motor FFU and group controlled, these it is easy to be controlled and save the power.
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air velocity speed testing
4. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Replacement parts:
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
Professional service:
• Fast reply in 12 hours if we receive any inquiry or request from customer
• Familiar with equipment.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
40% prepayment by T/T at order, the balance of payment before shipment.
|
|
