Fan Filter Unit
Created with Pixso. Low Noise 220V Ffu Unit , Fan Powered Hepa Filter 2*4 Galvanized Frame

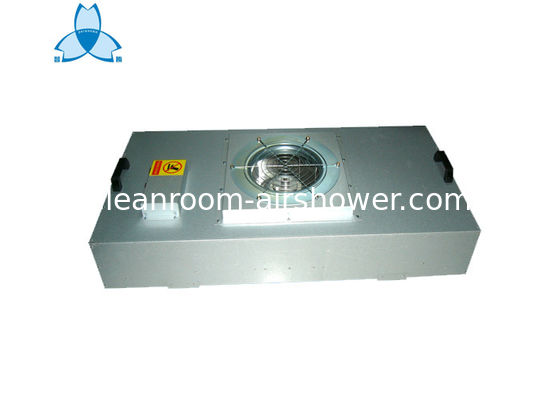

Low Noise 220V Ffu Unit , Fan Powered Hepa Filter 2*4 Galvanized Frame

Brand Name: Zhisheng
Model Number: ZS-FFU1175
MOQ: 10 sets
Delivery Time: about 15 days upon receipt of deposit
Detail Information
Place of Origin:
Guangdong, China (Mainland)
Certification:
ISO9001
Size:
1175x575x240(2"x4")
Material:
Galvanized Frame
Noise:
54dBA
Air Velocity:
0.35-0.65m/s
Filtration Grade:
Hepa Filter
Filter Efficiency:
H13
Powder:
220V
Packaging Details:
plywood case
Supply Ability:
500set per month
Highlight:

ffu fan filter

,

hepa filter fan

Product Description



Low Noise 2*4 Galvanized Frame h14 FFU / Fan Filter Unit For Cleanroom







Salient Features:



long use life, low noise and vibration, maintenance-free, adjustable air speed, thousands unit can be easy controlled.



Factory Strict Test :



according to international ISO14644-1 standards, with a dust particle counter detection one by one to ensure the quality.



Application:



widely used in the semiconductor, electronics, flat panel displays, and optical disk drive manufacturers, bio- industries, assembled clean room and laminar flow hood.etc.

Fan filter Unit (FFU)



Standard Size and Specification



Item Model ZS-FFU610 ZS-FFU915 ZS-FFU1170 ZS-FFU1220
Size for cabinet(mm) 610x610x240 915x610x240 1170x570x240 1220x610x240
Material Cold Rolled steel with powder coated/Galvalume sheet /SUS#201/SUS# 304
Average Air flow(m3/h) 600 900 1080 1200
Air velocity(Tested under filter300mm) 0.35-0.6m/s
ESP 80-120pa
HEPA filter Size(mm) 610x610x69 915x610x69 1170x570x69 1220x610x69
Frame Aluminum profile
Media Fiberglass
Efficiency H13 @0.3um
Pressure Drop ≤220pa
Fan(motor) Power AC 220V/50Hz;AC110V/60Hz
Noise(dB) 52 52 52 53
Optional Control panel, Remote control, Pre filter, Pressure gauge
Weight(KG) 22 24 28 32



Drawing:

Low Noise 220V Ffu Unit , Fan Powered Hepa Filter 2*4 Galvanized Frame 0





Testing in factory:



All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.



Testing before shipment:

1. Appearance inspection

2. Electrical safety tests

3. Air velocity speed testing

4. Function testing



Warranty:



The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual with testing report.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.



Replacement parts:

1. HEPA filter: It should be changed in half or one year once.

2. Pre filter: It should be changed in 3-6 month once.



Why you choose ZHISHENG Company ?



Professional service:



Fast reply in 12 hours if we receive any inquiry or request from customer

• Familiar with equipment.



Delivery time:

Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.



After sales service:



We respect your feed back after receive the goods.

• We provide 1 year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.



Payment Term:

30% prepayment by T/T at order, the balance of payment before shipment.
