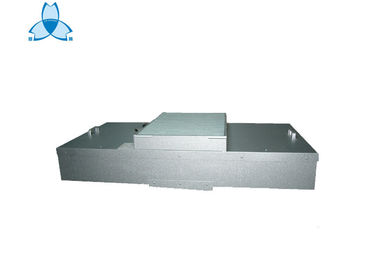

Built - In Hepa Filter Ffu Filter Fan Unit With G4 Efficiency Pre - Filter

Built - In Hepa Filter Ffu Filter Fan Unit With G4 Efficiency Pre - Filter
Built - In Hepa Filter Ffu Filter Fan Unit With G4 Efficiency Pre - Filter

Large Image :  Built - In Hepa Filter Ffu Filter Fan Unit With G4 Efficiency Pre - Filter

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: Zhisheng
Certification: ISO9001
Model Number: ZS-FFU1230
Payment & Shipping Terms:
Minimum Order Quantity: 10 sets
Packaging Details: plywood case
Delivery Time: about 15 days upon receipt of deposit
Supply Ability: 500set per month

Built - In Hepa Filter Ffu Filter Fan Unit With G4 Efficiency Pre - Filter

Description
Size: 1230*620*350 Noise: 55dBA
Filtration Grade: Hepa Filter Efficiency: H13 @0.3um
Power: AC110V/60Hz Optional: Pressure Gauge
High Light:

fan powered hepa filter

,

hepa filter fan

Built - in Hepa Filter Fan Filter Unit With g4 Efficiency Pre - Filter



Fan Filter Unit.pdf



Product Information:



Fan Filter Unit (FFU) is self-clean air equipment, it can be installed to the ceiling or setted on the holder, which can reach Class100. FFU has HEPA filter and pre-filter, the fan absorbs the air from the top through the prefilter and HEPA filter then the clean air at 0.45m / s ± 20% speed blow out by the whole air supply grill.





FFU features



Using high-performance motor, three-stage speed, low current consumption, saving electricity costs



Metal liner tube structure wind, never aging prevent secondary pollution



Suitable for clean room cleanliness Class1-1000



Standard Size and Specification



Item Model ZS-FFU610 ZS-FFU915 ZS-FFU1170 ZS-FFU1220
Size for cabinet(mm) 610x610x240 915x610x240 1170x570x240 1220x610x240
Material Cold Rolled steel with powder coated/Galvalume sheet /SUS#201/SUS# 304
Average Air flow(m3/h) 600 900 1080 1200
Air velocity(Tested under filter300mm) 0.35-0.6m/s
ESP 80-120pa
HEPA filter Size(mm) 610x610x69 915x610x69 1170x570x69 1220x610x69
Frame Aluminum profile
Media Fiberglass
Efficiency H13 @0.3um
Pressure Drop ≤220pa
Fan(motor) Power AC 220V/50Hz;AC110V/60Hz
Noise(dB) 52 52 52 53
Optional Control panel, Remote control, Pre filter, Pressure gauge
Weight(KG) 22 24 28 32



Drawing:

Built - In Hepa Filter Ffu Filter Fan Unit With G4 Efficiency Pre - Filter 0



Testing in factory:



All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.



Testing before shipment:

1. Appearance inspection

2. Electrical safety tests

3. Air velocity speed testing

4. Function testing



Warranty:



The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual with testing report.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.



Replacement parts:

1. HEPA filter: It should be changed in half or one year once.

2. Pre filter: It should be changed in 3-6 month once.



Why you choose ZHISHENG Company ?



Professional service:



Fast reply in 12 hours if we receive any inquiry or request from customer

• Familiar with equipment.



Delivery time:

Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.



After sales service:



We respect your feed back after receive the goods.

• We provide 1 year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.



Payment Term:

30% prepayment by T/T at order, the balance of payment before shipment.
