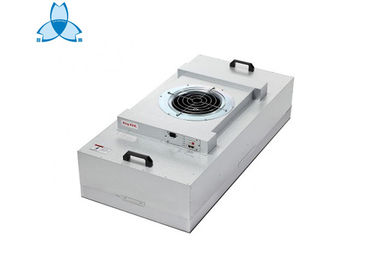

Clean Air Clean Room Fan Filter Units 2000m3/H Rated Air Flow For Dust Free Workshop

Clean Air Clean Room Fan Filter Units 2000m3/H Rated Air Flow For Dust Free Workshop

Clean Air Clean Room Fan Filter Units 2000m3/H Rated Air Flow For Dust Free Workshop

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: Zhisheng
Certification: ISO9001
Model Number: ZS-FFU1220

Payment & Shipping Terms:

Minimum Order Quantity: 10 sets
Packaging Details: plywood case
Delivery Time: about 15 days upon receipt of deposit
Supply Ability: 500set per month
Contact Now
Detailed Product Description
Size: 1220*610*240 Material: Aluminum Coated Zinc
Noise: 52dBA Air Velocity: 0.35-0.65m/s
Rated Air Flow: 2000m3/h Filtration Grade: Hepa Filter



External Hepa h13 @ 0.3um Filter Fan Filter Unit Without Pre Filter





Description



FFU is the abbreviation of English, the full name is Fan Filter Units. It is a self-contained power,with the end of the filtration efficiency of the modular air supply device. FFU widely used in clean room, clean bench, clean production line, assembly type clean room box laminar flow hood and other applications. Fan from the top of the FFU will air through the HEPA filter, filtered clean air in the whole out of the wind surface to 0.45m/s + 20% of the adjustable wind speed even sent.



FFU features



Compact, lightweight design and low height cabinet, saving space, easy installation and routine maintenance



Special inlet, vibration, reducing the pressure loss and noise generation



Diffusion plate inside the apparatus, Pressure spread evenly to ensure a stable average wind surface wind speed



Standard Size and Specification



Item Model ZS-FFU610 ZS-FFU915 ZS-FFU1170 ZS-FFU1220
Size for cabinet(mm) 610x610x240 915x610x240 1170x570x240 1220x610x240
Material Cold Rolled steel with powder coated/Galvalume sheet /SUS#201/SUS# 304
Average Air flow(m3/h) 600 900 1080 1200
Air velocity(Tested under filter300mm) 0.35-0.6m/s
ESP 80-120pa
HEPA filter Size(mm) 610x610x69 915x610x69 1170x570x69 1220x610x69
Frame Aluminum profile
Media Fiberglass
Efficiency H13 @0.3um
Pressure Drop ≤220pa
Fan(motor) Power AC 220V/50Hz;AC110V/60Hz
Noise(dB) 52 52 52 53
Optional Control panel, Remote control, Pre filter, Pressure gauge
Weight(KG) 22 24 28 32



Drawing:

Clean Air Clean Room Fan Filter Units 2000m3/H Rated Air Flow For Dust Free Workshop





Testing in factory:



All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.



Testing before shipment:

1. Appearance inspection

2. Electrical safety tests

3. Air velocity speed testing

4. Function testing



Warranty:



The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual with testing report.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.



Replacement parts:

1. HEPA filter: It should be changed in half or one year once.

2. Pre filter: It should be changed in 3-6 month once.



Why you choose ZHISHENG Company ?



Professional service:



Fast reply in 12 hours if we receive any inquiry or request from customer

• Familiar with equipment.



Delivery time:

Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.



After sales service:



We respect your feed back after receive the goods.

• We provide 1 year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.



Payment Term:

30% prepayment by T/T at order, the balance of payment before shipment.
