|In Dimension:||W1800*D2600*H2100MM||Doors:||Double Leaf Sliding Doors|
|Wind Speed:||22-25m/s||Class:||100 Class|
|Material:||Power Coated Steel For Outside||Color:||White|
clean room air showers,
dust free room,

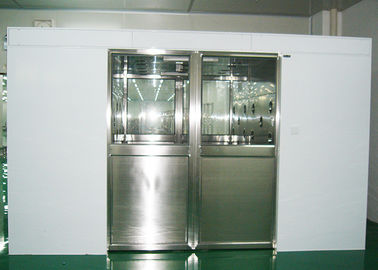

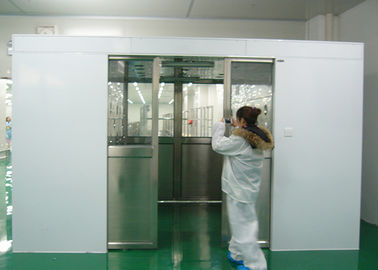

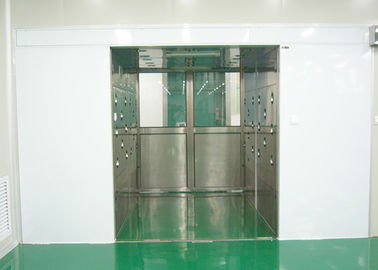

Inside Cargo Air Shower Tunnel
Cargo Air Shower is self-contained units, installed at the entrance of a clean room and other controlled environment chambers
for minimizing the entry of dust particles and other particulate matters into the working area.
Air Shower is designed to provide and maintain clean room conditions for research applications and particle sensitive manufacturing processes.
These energy efficient units are fully self-contained and well equipped to provide and sustain a highly sterile working environment.
Our versatile Air Showers are quite adept at controlling the level of contamination for particle sensitive processes
such as disc drive and semiconductor manufacturing, pharmaceutical drug testing and for research applications
involving molecular biology and biochemical experiments, cell and tissue culture experiments etc.
They are available in both standard and customized designs to suit the requirements of the industry.
The entire air shower assembly is HEPA/ULPA filtered, pre-wired and tested, ready to use with a simple plug-in,
therefore providing an unmatched ease of operation. Moreover, the use of high quality construction materials
ensures unparalleled manufacturing quality, whereas the highly efficient blowers and motors ensure long lasting dependable results.
Parameter of Cleanroom Cargo Air Shower:
|Product type||Stainless Steel Inside Cargo Air Shower Tunnel For Clean Room With Automatic Doors|
|Material for casing||T=1.2MM Power coated steel for outside, SS304 for inside|
|Material for doors||Stainless steel 304|
|Door type||Sliding doors|
|Blowing way||3-side blowing|
English intelligent control panel with human voice
|HEPA filter efficinecy:||99.99%|
|Photoelectric sensor||OMRON brand|
|Shower time||0-99s adustable|
|Spurt wind speed||25-27m/s above|
|Safeguard||Leakage switch and thermal overload relay (Protect people from electric leakage)|
Size and specificaton of Cleanroom Cargo Air Shower:
|Product||Stainless Steel Inside Cargo Air Shower Tunnel For Clean Room With Automatic Doors|
|External dimensions (mm)||W3800*D2600*H2300MM|
|Internal dimensions mm||W1800*D260*H2100MM|
|Doors||2 sets of SS double-leaf sliding doors|
|Suitable||People and Goods|
|Nozzles||16+16+18=54 PCS(3-side blowing)|
|Blower fan||6 sets|
|HEPA filter size||610x610x90mm|
|HEPA filter qty||6 PCS|
|HEPA filter efficiency||H13|
|Photolectric sensor||ORMON 2 PCS|
|Fluorescent Lamp||Philips 3x 20W|
|Air shower time||0-99 s Adjustable|
|Spurt wind speed||22-25m/s|
|Control system||Microcomputer control panel with human invoice prompt, electric interlock, automatical blowing by photoelectric sensor
1. The control system run automatically by photoelectric sensor, the two door are electric interlocked.
(One door in open state, the other door must in close state. When people enter air shower, the system will
shower automatically by photoelectric sensor)
2. Air shower time from 1 to 99 seconds which can be adjustable
3. Adopt Pre filter and HEPA filter
4. The door, bottom-board, nozzles are used of stainless steel, good appearance.
5. When air shower is used to pass cargo, it is without bottom-board.
1. Manual swing door / automatic sliding door/High speed scroll shutter door
2. HEPA filter or ULPA filter
3. Material for cabinet: cold-rolled steel plate with powder coated / SUS#201 / SUS#304
4. Common fluorescent lamp / UV Sterilizer lamp
5. With voice announce
Drawing of Air Shower Tunnel
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment.
Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
Fast reply in 12 hours if we receive any inquiry or request from customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
30% prepayment by T/T at order, the balance of payment before shipment.
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
We have CE and ROHS Certificate for air shower
