|In Dimension:||W2050xD2550xH2400mm||Door Type:||4-leaf Auto Sliding Doors|
|Door Material:||Stainless Steel 304||Material:||Stainless Steel 304|
|Application:||For Passing Materials And Goods|
Cargo Air Shower Tunnel,
Sliding Door Air Shower Tunnel,
Sliding Door Air Shower Room
Cargo Air Shower for Material with 4-leaf auto sliding doors For SUMSANG factory
Door type: 4-leaf Auto Sliding doors, save the space
It is a large air shower tunnel for material carts, adopt high speed shutter doors, which open and close the doors fastly, and it is save the space.
Size and specificaton:
|Product||Cargo Air Shower for Material with 4-leaf auto sliding doors For SUMSANG factory|
|External dimensions (mm)||W2910xD2550xH2650mm|
|Internal dimensions mm||W2050xD2550xH2400mm|
|Doors||4-leaf auto sliding doors|
|Suitable||People and Materials|
|Blower fan||6 pcs|
|HEPA filter size||610x610x90mm|
|HEPA filter qty||6PCS|
|HEPA filter efficiency||H13|
|Photolectric sensor||ORMON 3 PCS|
|Fluorescent Lamp||Philips 7x 18W|
|Air shower time||0-99 s Adjustable|
|Spurt wind speed||22-25m/s|
|Control system||IC control panel, electric interlock, automatical blowing by photoelectric sensor|
Air Shower Tunnel have become an integral component of the modern cleanroom because their benefits
more than pay for the small amount of space they occupy. With their interlocking doors and automatic
cycling, air showers act as traffic guards, controlling passage into and out of the cleanroom.
After using it, the dust could effectively be reduced to enter the clean area and maintain the normal working status.
This air shower tunnel of which automatic sliding door is convenient for people entering air shower room,
as well to reduce the enter time.
Air Showers clean micro particles off personnel and equipment as they enter or exit a cleanroom.
Upon exit, cleanrooms are envelope sealed when the unit automatically switches into an airlock.
They can also be used to remove hazardous contaminate from personnel when exiting facilities
Not to be ignored is the psychological impact an air shower creates: Personnel are reminded with every
passage that they are entering a controlled environment,
while prospective clients are assured of your quality control standards when they enter your facility.
Blowing type: single-side blowing, double-side blowing, three-side blowing.
1. Manual swing door / automatic sliding door/High speed scroll shutter door
2. HEPA filter or ULPA filter
3. Material for cabinet: cold-rolled steel plate with powder coated / SUS#201 / SUS#304
4. Common fluorescent lamp / UV Sterilizer lamp
5. With voice announce

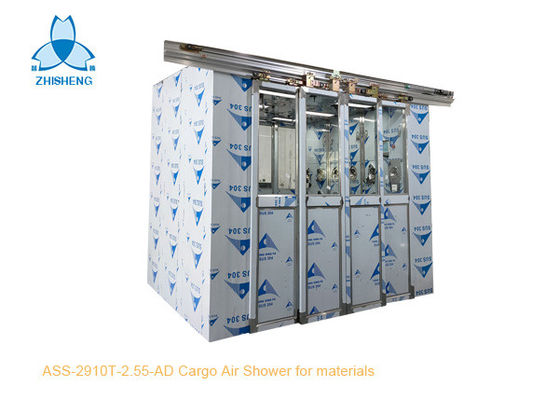

Air shower tunnel picture:
Drawing of Air Shower for materials:
1. Put air shower on the correct location, connect the power wires of air shower with the power wires,
There are FIVE lines: 3*Live line, 1*Null line and 1*Earth line. The power supply is AC380V/50HZ/3 phases.
2. In order to make sure air shower to work normally and the cleanliness of workshop, please kindly use air shower according to the following correct method.
2.1 Please check if there are any people in air shower before you enter it. When air shower is working entrance door and exit door are electronic interlocked, it is forbidden to open the door at this moment.
2.2 Put hand toward to Open switch, the entrance sliding door will open , enter air shower, then entrance sliding door will be close automatically, photoelectric sensor is reacted by people or goods, blower fan will be
blowing automatically (The air shower time is set 15seconds at factory, it is forbidden to change the air shower time during blowing), after blowing, exit sliding door open automatically, go out air shower,
then exit sliding door will be close automatically.
Can custom air showers be manufactured?
We offers both standard and custom air showers. Please contact us for more information.
Is it possible to alter the settings on the air shower?
Our air showers allow the operator flexibility to program numerous settings using an easy-to-use touch-screen control panel. You can easily set cycle operation times, entrance/exit delays, when the lights turn off/on, and more.
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment.
Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
Fast reply in 12 hours if we receive any inquiry or request from customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
30% prepayment by T/T at order, the balance of payment before shipment.
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
We have CE and ROHS Certificate for air shower
