Hidden Auto Cargo Tunnel Type Air Shower Clean Room With Double Leaf Sliding Doors

Hidden Auto Cargo Tunnel Type Air Shower Clean Room With Double Leaf Sliding Doors

MOQ: 1 set
Standard Packaging: plywood case
Delivery Period: 10-15 days after receive prepayment
Payment Method: T/T, Western Union
Supply Capacity: 200 Set/Sets per Month
Detail Information
Place of Origin
Guangdong, China (Mainland)
Brand Name
Zhisheng
Certification
ISO 9001/CE/ROHS
Model Number
AS-3800T-3.15-AD
Condition:
New
EX Dimension:
W3800*D3150*H2600MM
In Dimension:
W1800*D3150*H2400MM
Doors:
Double Leaf Sliding Doors
Wind Speed:
22-25m/s
Class:
100 Class
Minimum Order Quantity:
1 set
Packaging Details:
plywood case
Delivery Time:
10-15 days after receive prepayment
Payment Terms:
T/T, Western Union
Supply Ability:
200 Set/Sets per Month
High Light:

clean room air showers

,

dust free room

Product Description

Hidden Auto Double Leaf Sliding Doors Cargo Air Shower Tunnel For Materials and Goods



Air shower with high speed shutter door.pdf



Doors:Automatic Double Leaf Sliding Doors



Width: 1800mm



Description:



Air Shower Tunnels are used as downflow booths to remove particulate contamination from personnel entering clean rooms and sterile rooms.



Your Air Shower Tunnel can be designed to suit your facility and placed either side-by-side or end-to-end.



Our Air Showers and Tunnels meet all federal, military, and industrial specifications for use with life science, bio medical, pharmaceutical, parental drug,



microelectronic, aerospace, precision manufacturing, and like applications.



All Air Showers and Air Shower Tunnels are warrantied for a period of one year from the date of delivery.



Cargo Air Shower Tunnel  for clean room is a kind of partial clean equipment with rather strong universality and is installed at the partition between the clean and non-clean rooms.



Its used for the personnel or matters to shower before entering the clean area. After using it, the dust could effectively be reduced to enter the clean area and maintain the normal working status.



Blowing type: single-side blowing, double-side blowing, three-side blowing.



Features:



1. The control system run automatically by photoelectric sensor, the two door are electric interlocked.



(One door in open state, the other door must in close state. When people enter air shower, the system will



shower automatically by photoelectric sensor)



2. Air shower time from 1 to 99 seconds which can be adjustable



3. Adopt Pre filter and HEPA filter



4. The door, bottom-board, nozzles are used of stainless steel, good appearance.



5. When air shower is used to pass cargo, it is without bottom-board.



Optional accessory:



1. Manual swing door / automatic sliding door/High speed scroll shutter door



2. HEPA filter or ULPA filter



3. Material for cabinet: cold-rolled steel plate with powder coated / SUS#201 / SUS#304



4. Common fluorescent lamp / UV Sterilizer lamp



5. With voice announce





Parameter:



Product type Hidden Auto Double Leaf Sliding Doors Cargo Air Shower Tunnel For Materials and Goods
Material for casing T=1.2MM Power coated steel for outside, SS304 for inside
Material for doors Stainless steel 304
Nozzles Stainles steel
Door leaf Doubleleaf
Door type Sliding doors
Blowing way 3-side blowing
Control system

English intelligent control panel with human voice

Locks Electric interlocked
HEPA filter efficinecy: 99.99%
Pre filter G3
Light Philips brand
Photoelectric sensor OMRON brand
Shower time 0-99s adustable
Spurt wind speed 25-27m/s above
Power supply 380V/50HZ/3PH
Safeguard Leakage switch and thermal overload relay (Protect people from electric leakage)



 size and specificaton:



Product Hidden Auto Double Leaf Sliding Doors Cargo Air Shower Tunnel For Materials and Goods
Model AS-3800T-3.15-AD
External dimensions (mm) W3800*D3150*H2600MM
Internal dimensions mm W1800*D3150*H2400MM
Doors 2 sets of SS double-leaf sliding doors
Door closer NONE
Lock  electric interlocked
Suitable  People and Goods
Nozzles 24+24+18=66 PCS(3-side blowing)
Blower fan 6 sets
Blow power(W) 6000W
Weight(kg) Appro.1200
HEPA filter size 915x610x90mm
HEPA filter qty 6 PCS
HEPA filter efficiency H13
Photolectric sensor ORMON 2 PCS
Fluorescent Lamp Philips 3x 20W
Nozzle diameter 32mm
Air shower time 0-99 s Adjustable
Spurt wind speed 22-25m/s
Power Supply AC380V/50Hz/3Ph
Control system Microcomputer control panel with human invoice prompt, electric interlock, automatical blowing by photoelectric sensor






Air shower Details:

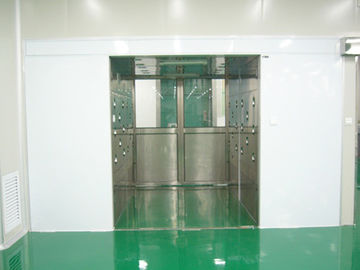

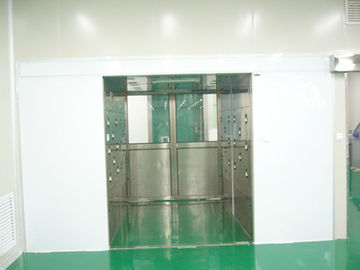

Hidden Auto Cargo Tunnel Type Air Shower Clean Room With Double Leaf Sliding Doors 0Hidden Auto Cargo Tunnel Type Air Shower Clean Room With Double Leaf Sliding Doors 1





Drawing of Air Shower Tunnel

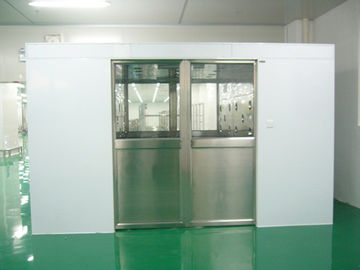

Hidden Auto Cargo Tunnel Type Air Shower Clean Room With Double Leaf Sliding Doors 2Hidden Auto Cargo Tunnel Type Air Shower Clean Room With Double Leaf Sliding Doors 3Hidden Auto Cargo Tunnel Type Air Shower Clean Room With Double Leaf Sliding Doors 4Hidden Auto Cargo Tunnel Type Air Shower Clean Room With Double Leaf Sliding Doors 5



Can custom air showers be manufactured?



We offers both standard and custom air showers. Please contact us for more information.



Is it possible to alter the settings on the air shower?



Our air showers allow the operator flexibility to program numerous settings using an easy-to-use touch-screen control panel. You can easily set cycle operation times, entrance/exit delays, when the lights turn off/on, and more.



Testing in factory:



All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment.



Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.



Testing before shipment:

1. Appearance inspection

2. Electrical safety tests

3. Air wind speed testing

4. Function testing



Warranty:



The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual with testing report.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.



Replacement parts:

1. HEPA filter: It should be changed in half or one year once.

2. Pre filter: It should be changed in 3-6 month once.



Why you choose ZHISHENG Company ?



Professional service:



Fast reply in 12 hours if we receive any inquiry or request from customer

Familiar with equipment.

Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.





Delivery time:

Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.



After sales service:



We respect your feed back after receive the goods.

• We provide 1 year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.



Payment Term:

30% prepayment by T/T at order, the balance of payment before shipment.



Our Services

Cleanroom equipments,like air shower, FFU. It is one-year warranty.



Certificate:


We have CE and ROHS Certificate for air shower
