Motorized Ceiling Fan Filter Unit Ultra Thin Low Noise With Long Service Life

Motorized Ceiling Fan Filter Unit Ultra Thin Low Noise With Long Service Life

    • Motorized Ceiling Fan Filter Unit Ultra Thin Low Noise With Long Service Life
    • Motorized Ceiling Fan Filter Unit Ultra Thin Low Noise With Long Service Life
    • Motorized Ceiling Fan Filter Unit Ultra Thin Low Noise With Long Service Life
  • Motorized Ceiling Fan Filter Unit Ultra Thin Low Noise With Long Service Life

    Product Details:

    Place of Origin: Guangdong, China (Mainland)
    Brand Name: Zhisheng
    Certification: ISO9001
    Model Number: ZS-FFU610

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 sets
    Packaging Details: Pywood case
    Delivery Time: about 15 days upon receipt of deposit
    Payment Terms: T/T, Western Union
    Supply Ability: 2000set per month
    Contact Now
    Detailed Product Description
    Size: 615x615x250mm (2x2feet) Material: Galvanized Sheet
    Rated Air Flow: 600m3/h Powder Supply: 160W
    Voltage: 220V/ Filter Size: 610x610x69mm



    Cleanroom Motorized Ceiling Fan Filter Unit (FFU)- Ultra Thin Designed, Low Noise, Long Service Life



    Product Description:



    Motorized ceiling Fan filter unit draw air in though the top and blow air out the other side through a HEPA/ULPA filter into a clean room. They are often installed in a ceiling grid system but can also be mounted on a supported or suspended from a support structure.



    Product features:

    • Diversified design
    • The unit appearance is simple and generous
    • Equipped with high quality, high efficiency and low noise outer rotor backward inclined centrifugal blower
    • Optimized internal current sharing designed
    • With stable and multi velocity regulation function
    • With functions perfect large scale group control operating system
    • Various functions of accessories for options

    Fan filter Unit Applications:



    1. For the ceiling of clean room



    2. For the clean booth



    3. Precison machinery



    4. Laser industry precision machinery



    5. The production lines which require high purification grade.



    6. Pharmaceuficals, medical science and hospital



    Standard Size and Specification



    Item Model ZS-FFU610 ZS-FFU915 ZS-FFU1170 ZS-FFU1220
    Size for cabinet(mm) 610x610x240 915x610x240 1170x570x240 1220x610x240
    Material Cold Rolled steel with powder coated/Galvalume sheet /SUS#201/SUS# 304
    Average Air flow(m3/h) 600 900 1080 1200
    Air velocity(Tested under filter300mm) 0.35-0.6m/s
    ESP 80-120pa
    HEPA filter Size(mm) 610x610x69 915x610x69 1170x570x69 1220x610x69
    Frame Aluminum profile
    Media Fiberglass
    Efficiency H13 @0.3um
    Pressure Drop ≤220pa
    Fan(motor) Power AC 220V/50Hz;AC110V/60Hz
    Noise(dB) 52 52 52 53
    Optional Control panel, Remote control, Pre filter, Pressure gauge
    Weight(KG) 22 24 28 32





    Drawings:

    Motorized Ceiling Fan Filter Unit Ultra Thin Low Noise With Long Service Life

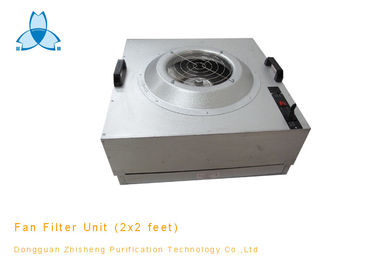

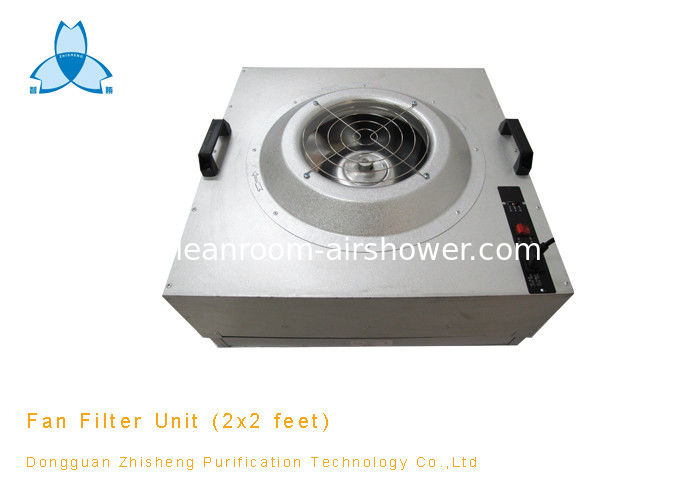

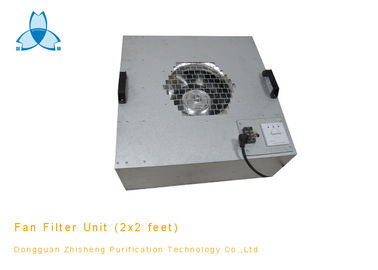

    Pictures:



    Motorized Ceiling Fan Filter Unit Ultra Thin Low Noise With Long Service Life

    Motorized Ceiling Fan Filter Unit Ultra Thin Low Noise With Long Service Life





    Testing in factory:



    All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.



    Testing before shipment:

    1. Appearance inspection

    2. Electrical safety tests

    3. Air velocity speed testing

    4. Function testing



    Warranty:



    The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

    All equipment is shipped with a comprehensive use’s manual with testing report.

    Additional IO/OQ/GMP document is available upon request.

    Contact our sales representative for specific warranty details or document request.



    Replacement parts:

    1. HEPA filter: It should be changed in half or one year once.

    2. Pre filter: It should be changed in 3-6 month once.



    Why you choose ZHISHENG Company ?



    Professional service:



    Fast reply in 12 hours if we receive any inquiry or request from customer

    • Familiar with equipment.



    Delivery time:

    Production period:15-30days

    • Shipping notice or insurance for you after the goods is shipped.



    After sales service:



    We respect your feed back after receive the goods.

    • We provide 1 year warranty after goods arrive.

    • We promise all spare parts available in lifetime use.

    • We care of your complain within 48hours.
