| MOQ: | 10 sets |
| Standard Packaging: | Pywood case |
| Delivery Period: | about 15 days upon receipt of deposit |
| Payment Method: | T/T, Western Union |
| Supply Capacity: | 2000set per month |
1170x570mm Galvanzied Housing Fan Filter Unit For Class 100 Clean Room
Product Description:
Fan filter unit is type of unit used for filtering laminar air and supplying clean air. FFU can be used stand alone or installed modularly. FFU is the core when making clean room equipment for a given space including clean booth, clean bench and clean room assembly.
Features:
1.Low energy consumption
2.Low noise
3.Uniform velocity and large airflow
4.Can remote controlled by computer
Fan filter Unit Applications:
1. For the ceiling of clean room
2. For the clean booth
3. Precison machinery
4. Laser industry precision machinery
5. The production lines which require high purification grade.
6. Pharmaceuficals, medical science and hospital
Standard Size and Specification
| Item Model | ZS-FFU610 | ZS-FFU915 | ZS-FFU1170 | ZS-FFU1220 | |
| Size for cabinet(mm) | 610x610x240 | 915x610x240 | 1170x570x240 | 1220x610x240 | |
| Material | Cold Rolled steel with powder coated/Galvalume sheet /SUS#201/SUS# 304 | ||||
| Average Air flow(m3/h) | 600 | 900 | 1080 | 1200 | |
| Air velocity(Tested under filter300mm) | 0.35-0.6m/s | ||||
| ESP | 80-120pa | ||||
| HEPA filter | Size(mm) | 610x610x69 | 915x610x69 | 1170x570x69 | 1220x610x69 |
| Frame | Aluminum profile | ||||
| Media | Fiberglass | ||||
| Efficiency | H13 @0.3um | ||||
| Pressure Drop | ≤220pa | ||||
| Fan(motor) | Power | AC 220V/50Hz;AC110V/60Hz | |||
| Noise(dB) | 52 | 52 | 52 | 53 | |
| Optional | Control panel, Remote control, Pre filter, Pressure gauge | ||||
| Weight(KG) | 22 | 24 | 28 | 32 | |

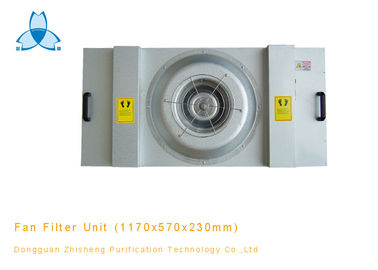

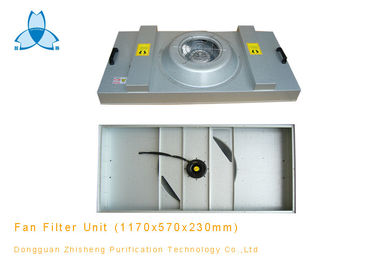

Pictures:
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air velocity speed testing
4. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Replacement parts:
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
Professional service:
• Fast reply in 12 hours if we receive any inquiry or request from customer
• Familiar with equipment.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
40% prepayment by T/T at order, the balance of payment before shipment.
|
|
