| MOQ: | 1 SET |
| Standard Packaging: | plywood case |
| Delivery Period: | about 15 days upon receipt of deposit |
| Payment Method: | Western Union, T/T, L/C |
| Supply Capacity: | 100 set per month |

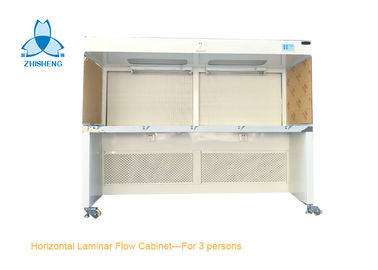

Labortary Horizontal Laminar Flow Cabinet For Three persons
Clean bench/laminar flow cabinet
is a specialized equipment to make partial area high cleanliness.It is widely applied to industries that require high cleanliness on partial areas, such as laboratory, biotechnology, opto-electronics, micro-electronics and hard disk manufacturing etc. The clean bench enjoys multiple features, including high cleanliness,low noise, reliable operation, strong removability and being able to be installed to assembing line.
In order to improve the efficiency and make equipment can use normally, please read following relative items carefully before your use”zhisheng” clean bench.
Description:
Laminar flow cabinets create particle-free working environments by projecting air through a filtration system and exhausting it across a work surface in a laminar or uni-directional air stream.
They provide an excellent clean air environment for a number of laboratory requirements.
A Horizontal Laminar Flow Cabinet discharges particle free air horizontally, out of the cabinet towards the operator. The constant flow of uni-directional or laminar HEPA filtered air acts as a barrier and prevents airborne contaminants from entering the work zone.
Application:
Laminar flow cabinets are suitable for a variety of applications and especially where an individual clean air environment is required for smaller items, e.g. particle sensitive electronic devices.'
In the laboratory, laminar flow cabinets are commonly used for specialised work.
It is widely applied to industries like electronics, instrument, apparatus, National Defense, medical care and pharmacy etc.
Optional accessory:
1. Hepa filter or ULPA filter
2. Static-free top or stainless steel top, the top can be punched
3. Framwork is used of common cold rolled steel plated with powder coated or stainless steel.
4. Domestic or EBM fans
5. Pressure gauge

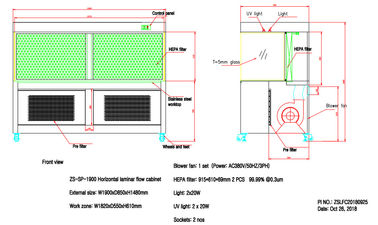

Standard size and specification:
| Model | ZS-SP-900 | ZS-SP-1300 | ZS-SP-1600 | ZS-SP-1900 |
| Dimension (W x D x H) mm | 900x850x1480 | 1300x850x1480 | 1600x850x1480 | 1900x850x1480 |
| Size for working area (W x D x H)mm | 820x550x610 | 1220x550x610 | 1520x550x610 | 1820x550x610 |
| Suitable people | 1 person | 1-2 person | 2-3 person | 3 person |
| Size of HEPA filter(mm) | 820x610x69 | 1220x610x69 | 915x610x69 610x 610x69 | 915 x 610 x 69 |
| QTY of HEPA filter (pcs) | 1 | 1 | 1/1 | 2 |
| Noise | ≤58dB | ≤58dB | ≤58dB | ≤62dB |
| Blow power | 320W | 320W | 370W | 320W |
| Fluorescent lamp | 20Wx1 | 20Wx1 | 20W x 2 | 30Wx2 |
| Material of Bench top | SUS304 | |||
| Produce/Inspection standard | US Federal standard 209E | |||
| Air velocity | 0.35-0.6m/s | |||
| Voltage | 380V/50Hz/3Ph | |||
| Voltage | AC 380V/50Hz/3PH, 220V/50Hz/1Ph or 110V/60Hz/1Ph | |||
| Cleanliness Class | 100 class (US Federal standard 209E) | |||
| Efficiency | 99.99% @0.3μm | |||
Note: Customized size and specification can be acceptable.
Control Panel:
HEPA filter, Light and UV Light:
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Replacement parts:
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
Professional service:
• Fast reply in 12 hours if we receive any inquiry or request from customer
• Familiar with equipment.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
30% prepayment by T/T at order, the balance of payment before shipment.
|
|
