MOQ: | 1 SET |
Standard Packaging: | plywood case |
Delivery Period: | about 15 days upon receipt of deposit |
Payment Method: | Western Union, T/T, L/C |
Supply Capacity: | 100 set per month |

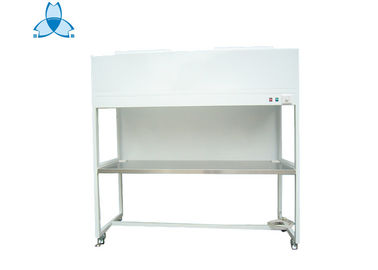

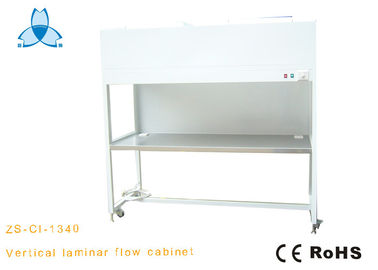

1-2 Person Vertical Laminar Flow Cabinet For Scientific Research Laboratory
APPLICABLE SCOPE:
The clean bench is a necessary basic equipment for biologic technical researches and experiments. It is widely applicable in the field of pharmaceuticals, biochemistry, environmental monitoring and electronic instruments for purifying air in the operation area.
PRODUCT CHARACTERISTICS:
The shell is made of quality cold-rolling steel with static spray plastics, the operation table is made of SUS304 which is corrosion-resistant and easy to clean;
Centrifugal fan which has steady rotate speed and low noise;
LCD control system, touch type switch, six steps of wind speed control;
Be equipped with UV light and lamp control, timer range of sterilization is 0-999min;
Vertical close type table, the down airflow formed in the operation area can prevent the air outside from permeating and keep the operation area clean;
The moveable window equipped with operation holes;
Be equipped with HEPA, the prefilter is set as the medium efficiency filter system to extend HEPA’s life.
Size and specification:
Model | ZS-CI-1040 | ZS-CI-1340 | ZS-CI-1640 | ZS-CI-1950 |
External dimensions (W x D x H)mm | 1040x710x1850 | 1340x710x1850 | 1640x710x1850 | 1950x710x1850 |
Size for working area (W x D x H)mm | 960 x 615 x 800 | 1260 x 615 x 800 | 1560 x 615 x 800 | 1870 x615 x800 |
Suitable people | one person | one person or two people | two person or three people | three people |
Specification of HEPA filter (mm) | 915x610x69 | 1220x610x69 | 915x610x69 610x610x69 | 915x610x69 |
Quantity of HEPA filter (pcs) | 1 | 1 | 1/1 | 2 |
Noise | ≤53dB | ≤53dB | ≤54dB | ≤54dB |
Blow power | 125W | 125W | 160W | 125W x 2 |
Fluorescent lamp | 20W | 30W | 20W x 2 | 30W x 2 |
Material of Bench top | SUS304 | |||
Produce/Inspection standard | US Federal standard 209E | |||
Air velocity | 0.45-0.75m/s | |||
Voltage | AC 220V/50Hz/1PH or 110V/60Hz/1Ph | |||
Cleanliness Class | 100 Class (US Federal standard 209E) | |||
Efficiency | 99.99% @0.3μm |
Note: Customized size and specification can be acceptable.
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Replacement parts:
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
Professional service:
• Fast reply in 12 hours if we receive any inquiry or request from customer
• Familiar with equipment.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
30% prepayment by T/T at order, the balance of payment before shipment.
