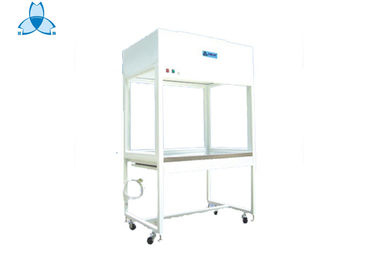

Laminar Vertical Laminar Flow Cabinet / Bio-Safety Cabinet Used Pharmaceutic
Laminar flow cabinet is a specialized equipment to bring high cleanliness to partial area.
Features
1. Horizontal flow and vertical flow types are available.
2. Imported stainless steel countertops and transparent glass side fences. They make the working area look more spacious and bright.
3. Countertops can be detached from the main construction which reduces the influence from main construction's vibrancy.
4. Air velocity can be adjusted; working voltage of fan can be adjusted with touch type switch so that the air velocity in the area will always remain a good state.
Configurations optional
1. up-and-down spring type door
2. HEPA filter
3. Ultraviolet sterilamp
4. Double-sided operating bench (can be used for making clean room assembly)
5. Non-standard clean benches are available. OEM is welcomed.
Size and specification:
Model | ZS-CI-1040 | ZS-CI-1340 | ZS-CI-1640 | ZS-CI-1950 |
External dimensions (W x D x H)mm | 1040x710x1850 | 1340x710x1850 | 1640x710x1850 | 1950x710x1850 |
Size for working area (W x D x H)mm | 960 x 615 x 800 | 1260 x 615 x 800 | 1560 x 615 x 800 | 1870 x615 x800 |
Suitable people | one person | one person or two people | two person or three people | three people |
Specification of HEPA filter (mm) | 915x610x69 | 1220x610x69 | 915x610x69 610x610x69 | 915x610x69 |
Quantity of HEPA filter (pcs) | 1 | 1 | 1/1 | 2 |
Noise | ≤53dB | ≤53dB | ≤54dB | ≤54dB |
Blow power | 125W | 125W | 160W | 125W x 2 |
Fluorescent lamp | 20W | 30W | 20W x 2 | 30W x 2 |
Material of Bench top | SUS304 | |||
Produce/Inspection standard | US Federal standard 209E | |||
Air velocity | 0.45-0.75m/s | |||
Voltage | AC 220V/50Hz/1PH or 110V/60Hz/1Ph | |||
Cleanliness Class | 100 Class (US Federal standard 209E) | |||
Efficiency | 99.99% @0.3μm |
Note: Customized size and specification can be acceptable.
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Replacement parts:
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
Professional service:
• Fast reply in 12 hours if we receive any inquiry or request from customer
• Familiar with equipment.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
30% prepayment by T/T at order, the balance of payment before shipment.
