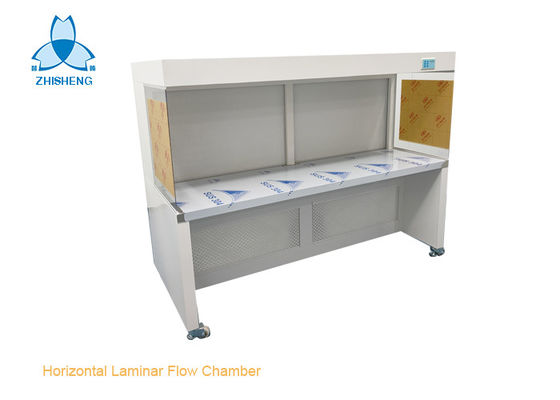

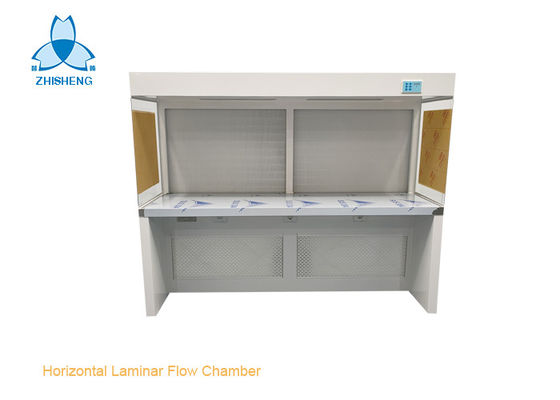

Horizontal Laminar Flow Cabinet For Laboratory

Horizontal Laminar Flow Cabinet For Laboratory
Horizontal Laminar Flow Cabinet For Laboratory Horizontal Laminar Flow Cabinet For Laboratory

Large Image :  Horizontal Laminar Flow Cabinet For Laboratory

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: Zhisheng
Certification: ISO9001
Model Number: ZS-SP-1900
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Packaging Details: plywood case
Delivery Time: about 15 days upon receipt of deposit
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100 set per month

Horizontal Laminar Flow Cabinet For Laboratory

Material: Powder Coated Steel Air Velocity: 0.45m/s
Size: 1900*850*1480mm Suitable Person: 3 Person
Noise: 58dbA Purification Grade: ISO5
High Light:

Horizontal Laminar Flow Cabinet


0.45m/s Laminar Flow Cabinet


58dbA horizontal flow clean bench

Horizontal Laminar Flow Chambers for Laboratory


Clean bench.pdf


  • Horizontal laminar flow type
  • For three persons
  • UV light optional




Horizontal Laminar flow chambers create particle-free working environments by projecting air through a filtration system and exhausting it across a work surface in a laminar or uni-directional air stream.

They provide an excellent clean air environment for a number of laboratory requirements.


A Horizontal Laminar Flow Cabinet discharges particle free air horizontally, out of the cabinet towards the operator. The constant flow of uni-directional or laminar HEPA filtered air acts as a barrier and prevents airborne contaminants from entering the work zone.




Laminar flow cabinets are suitable for a variety of applications and especially where an individual clean air environment is required for smaller items, e.g. particle sensitive electronic devices.'


In the laboratory, laminar flow cabinets are commonly used for specialised work.


It is widely applied to industries like electronics, instrument, apparatus, National Defense, medical care and pharmacy etc.


Optional accessory:


1. Hepa filter or ULPA filter

2. Static-free top or stainless steel top, the top can be punched

3. Framwork is used of common cold rolled steel plated with powder coated or stainless steel.

4. Domestic or EBM fans

5. Pressure gauge


Standard size and specification:


Model ZS-SP-900 ZS-SP-1300 ZS-SP-1600 ZS-SP-1900
Dimension (W x D x H) mm 900x850x1480 1300x850x1480 1600x850x1480 1900x850x1480
Size for working area (W x D x H)mm 820x550x610 1220x550x610 1520x550x610 1820x550x610
Suitable people 1 person 1-2 person 2-3 person 3 person
Size of HEPA filter(mm) 820x610x69 1220x610x69 915x610x69 610x 610x69 915 x 610 x 69
QTY of HEPA filter (pcs) 1 1 1/1 2
Noise ≤58dB ≤58dB ≤58dB ≤62dB
Blow power 320W 320W 370W 320W
Fluorescent lamp 20Wx1 20Wx1 20W x 2 30Wx2
Material of Bench top SUS304
Produce/Inspection standard US Federal standard 209E
Air velocity 0.35-0.6m/s
Voltage 380V/50Hz/3Ph
Voltage AC 380V/50Hz/3PH, 220V/50Hz/1Ph or 110V/60Hz/1Ph
Cleanliness Class 100 class (US Federal standard 209E)
Efficiency 99.99% @0.3μm

























Note: Customized size and specification can be acceptable.


Control Panel:

Horizontal Laminar Flow Cabinet For Laboratory 0


HEPA filter, Light and UV Light:

Horizontal Laminar Flow Cabinet For Laboratory 1


Testing in factory:


All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.


Testing before shipment:

1. Appearance inspection

2. Electrical safety tests

3. Air wind speed testing

4. Function testing




The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual with testing report.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.


Replacement parts:

1. HEPA filter: It should be changed in half or one year once.

2. Pre filter: It should be changed in 3-6 month once.


Why you choose ZHISHENG Company ?


Professional service:


Fast reply in 12 hours if we receive any inquiry or request from customer

• Familiar with equipment.


Delivery time:

Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.


After sales service:


We respect your feed back after receive the goods.

• We provide 1 year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.


Payment Term:

30% prepayment by T/T at order, the balance of payment before shipment.
