| MOQ: | 1 set |
| Standard Packaging: | plywood case |
| Delivery Period: | 10-15 days after receive prepayment |
| Payment Method: | T/T, Western Union |
| Supply Capacity: | 200 Set/Sets per Month |

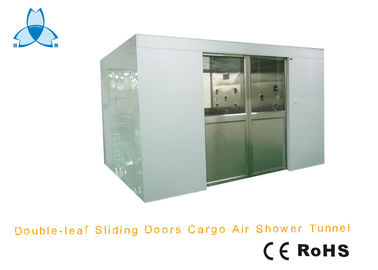

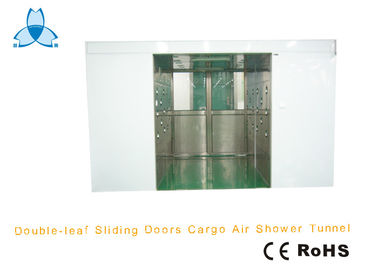

Personal Air Shower Tunnel With Auto Sliding Doors By Radar Senor For Ten People
Doors:Automatic Double Leaf Sliding Doors
Door Size: 1800mm x2100mm
Description:
The Personnel Air Shower Tunnel are fully self-contained units, designed to provide complete decontamination solutions for various clean room applications.
They are ideally installed at the entrance of a clean room or controlled environment chamber to minimize the entry of dust and particulate matters inside the clean room via the clothes and skin surfaces of the personnel.
Our Clean Room Air Shower feature programmable operating modes for flexible application and microprocessor based controller for precise supervision of the operating parameters.
They use highly efficient pre-filters and HEPA filters for maintaining highly sterile working environments and an integrated fan/blower assembly to provide high velocity air streams
for maximum scrubbing action against dust and particulate matters adherent on the exposed skin, clothes and material surfaces.
3 types of configurations are available:
One side flow: The unit allows one-way operation, with the clean side door locked and the grey side door unlocked at the idle state.
This mode of operation helps in controlling the flow of traffic in and out of the clean room for maintaining maximum sterility in the working area.
Two side flow: The unit allows both side flows, allowing the Air Showers to be activated in both the directions.
The user can exit through the clean room door or the grey side door, without compromising the sanctity of the clean air environment.
This mode of operation prevents the egress of harmful contaminants from the clean room to the outside environment, making the unit particularly useful in pharmaceutical industries,
animal research laboratories and other applications that require working with harmful and biohazardous substances.
Tower flow: the flow is from the upper roof of the shower.
The fully automatic operation prevents the need for manual switching on/off of the air shower cycle and the shower time, providing an unmatched ease of use.
The incorporated safety features such as magnetically operated interlocked doors,
the auto reset feature and an array of alarms and LED indicators for actual and set parameters prevent accidental lockouts and ensure smooth functioning of the unit.
Features:
1. The control system run automatically by photoelectric sensor, the two door are electric interlocked.
(One door in open state, the other door must in close state. When people enter air shower, the system will
shower automatically by photoelectric sensor)
2. Air shower time from 1 to 99 seconds which can be adjustable
3. Adopt Pre filter and HEPA filter
4. The door, bottom-board, nozzles are used of stainless steel, good appearance.
5. When air shower is used to pass cargo, it is without bottom-board.
Optional accessory:
1. Manual swing door / automatic sliding door/High speed scroll shutter door
2. HEPA filter or ULPA filter
3. Material for cabinet: cold-rolled steel plate with powder coated / SUS#201 / SUS#304
4. Common fluorescent lamp / UV Sterilizer lamp
5. With voice announce
Parameter:
| Product type | Personal Air Shower Tunnel With Auto Sliding Doors By Radar Senor For Ten People |
| Material for casing | T=1.2MM Power coated steel for outside, SS304 for inside |
| Material for doors | Stainless steel 304 |
| Nozzles | Stainles steel |
| Door leaf | Doubleleaf |
| Door type | Sliding doors |
| Blowing way | 3-side blowing |
| Control system |
English intelligent control panel with human voice |
| Locks | Electric interlocked |
| HEPA filter efficinecy: | 99.99% |
| Pre filter | G3 |
| Light | Philips brand |
| Photoelectric sensor | OMRON brand |
| Shower time | 0-99s adustable |
| Spurt wind speed | 25-27m/s above |
| Power supply | 380V/50HZ/3PH |
| Safeguard | Leakage switch and thermal overload relay (Protect people from electric leakage) |
size and specificaton:
| Product | Personal Air Shower Tunnel With Auto Sliding Doors By Radar Senor For Ten People |
| Model | AS-3800T-2.6-AD |
| External dimensions (mm) | W3800*D2600*H2300MM |
| Internal dimensions mm | W1800*D260*H2100MM |
| Doors | 2 sets of SS double-leaf sliding doors |
| Door closer | NONE |
| Lock | electric interlocked |
| Suitable | People and Goods |
| Nozzles | 16+16+18=54 PCS(3-side blowing) |
| Blower fan | 6 sets |
| Blow power(W) | 2400W |
| Weight(kg) | Appro.1000 |
| HEPA filter size | 610x610x90mm |
| HEPA filter qty | 6 PCS |
| HEPA filter efficiency | H13 |
| Photolectric sensor | ORMON 2 PCS |
| Fluorescent Lamp | Philips 3x 20W |
| Nozzle diameter | 32mm |
| Air shower time | 0-99 s Adjustable |
| Spurt wind speed | 22-25m/s |
| Power Supply | AC380V/50Hz/3Ph |
| Control system | Microcomputer control panel with human invoice prompt, electric interlock, automatical blowing by photoelectric sensor |
Air shower Details:
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment.
Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Replacement parts:
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
Professional service:
Fast reply in 12 hours if we receive any inquiry or request from customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
30% prepayment by T/T at order, the balance of payment before shipment.
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
We have CE and ROHS Certificate for air shower
|
|
