SS304 Swing Door Clean Room Air Showers For Material Entry

SS304 Swing Door Clean Room Air Showers For Material Entry
SS304 Swing Door Clean Room Air Showers For Material Entry SS304 Swing Door Clean Room Air Showers For Material Entry SS304 Swing Door Clean Room Air Showers For Material Entry

Large Image :  SS304 Swing Door Clean Room Air Showers For Material Entry

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: Zhisheng
Certification: ISO 9001/CE/ROHS
Model Number: CAS-2000D-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plywood case
Delivery Time: about 15 days upon receipt of deposit
Payment Terms: T/T, Western Union
Supply Ability: 200 Set/Sets per Month

SS304 Swing Door Clean Room Air Showers For Material Entry

Description
Condition: New Dimension(WxDxH): W2000xD2000xH2100MM
In Size(MM): W1500xD2000xH2000MM Blowing Side: 2- Side Blowing
Material: T=1.2 Stainless Steel 304 Suitable: For Passing Materials And Goods
Voltage: AC380V, 50 Hz, 3PH
High Light:

Swing Door Clean Room Air Showers

,

SUS304 Clean Room Air Showers

,

Material Entry Stainless Steel Air Shower

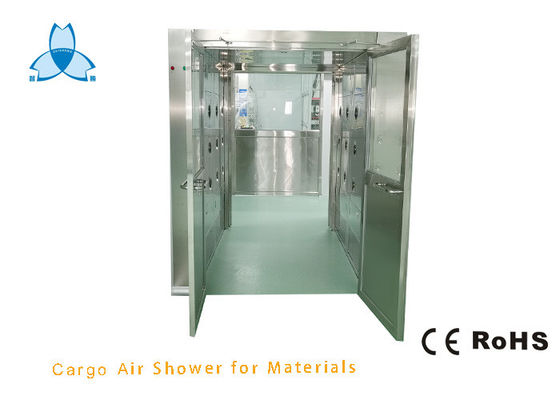

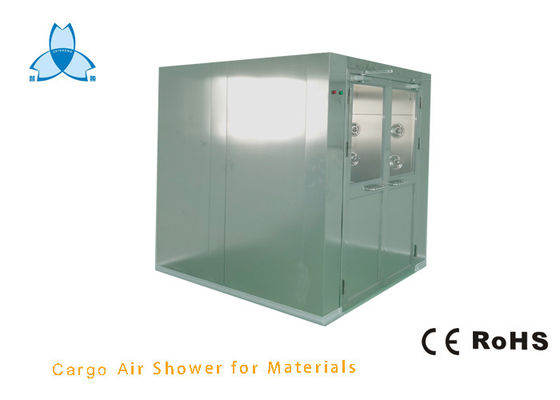

Stainless steel 304 Double-leaf Swing Doors Air Shower for Material entry



Air shower for materials.pdf



Air shower for materials, it is without base floors, it is used for people passing the materials and goods from non-clean room to clean room.



According to the blowing method, the air shower room can be divided into: top air shower room, single-side blowing air shower room for one person, double-side blowing air shower room for 2 persons,Three-side blowing air shower room for one person, double-side blowing air shower room for 2 persons, Double-side blowing air shower room for multi-persons, L type air shower room.


According to the material of the casing:the air shower room can be divided into: stainless steel air shower, powder coated steel air shower.


According to the degree of automation, the air shower can be divided into: intelligent voice air shower, automatic door air shower, explosion-proof air shower, fast rolling door air shower


Air shower room can be divided according to different objects:Personal air shower room, cargo shower room, air shower tunnels, cargo shower tunnels.



Features:



The two doors of the automatic air shower are electronically interlocked and can function as an air lock chamber to prevent external pollution and unpurified air from entering the clean area.



Eliminate the staff to bring hair, dust, bacteria into the workshop, to meet the strict dust-free workshop purification standards of the workplace, meet the production environment pollution requirements, and produce high-quality products.





Size and Specifications:





Product

Stainless steel 304 Double-leaf Swing Doors Air Shower for Material entry

External size W2000xD2000xH2100mm
Internal size W1500xD2000xH2000mm
Material: T=1.2 mm stainless steel 304
Doors type W=1500mm double-leaf SS304 swing doors
Door closer 2 SETs
Electric lock 2 SETs
Indicator lights Green / Red/Yellow
Blower fan  4sets,capacity: 2500CMH/set
99.99% HEPA filter 610*610*69mm 4 pcs
Pre filter 4 pcs
Nozzle pcs
Bloweing type 2 -side blowing, wind speed: >24m/s
Control system Control by PLC control system and LCD touch screen
Photoelectric snesor Omron brand 1pcs
Philips LED light  2x18W





Metal Indicator light -----Good-looking, high quality



SS304 Swing Door Clean Room Air Showers For Material Entry 0

Lock Screws---It is easy for opening the panel inside and maintain air shower.

SS304 Swing Door Clean Room Air Showers For Material Entry 1



SS304 Swing Door Clean Room Air Showers For Material Entry 2SS304 Swing Door Clean Room Air Showers For Material Entry 3
