Sliding Glass Laminar Flow Cabinet 53dB Noise , Purification Filter Funcation

Sliding Glass Laminar Flow Cabinet 53dB Noise , Purification Filter Funcation

    • Sliding Glass Laminar Flow Cabinet 53dB Noise , Purification Filter Funcation
    • Sliding Glass Laminar Flow Cabinet 53dB Noise , Purification Filter Funcation
    • Sliding Glass Laminar Flow Cabinet 53dB Noise , Purification Filter Funcation
  • Sliding Glass Laminar Flow Cabinet 53dB Noise , Purification Filter Funcation

    Product Details:

    Place of Origin: Guangdong, China (Mainland)
    Brand Name: Zhisheng
    Certification: ISO9001
    Model Number: ZS-CI-1040

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Packaging Details: plywood case
    Delivery Time: about 15 days upon receipt of deposit
    Payment Terms: Western Union, T/T, L/C
    Supply Ability: 100 set per month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel For Base Funcation: Purification Filter
    Size: 1040*710*1850 Suitable Person: One People
    Noise: 53dB Application: Clean Room

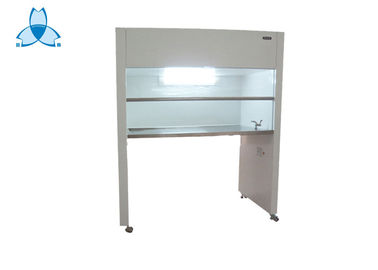

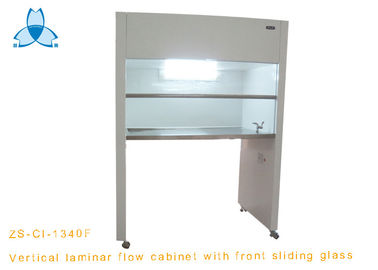

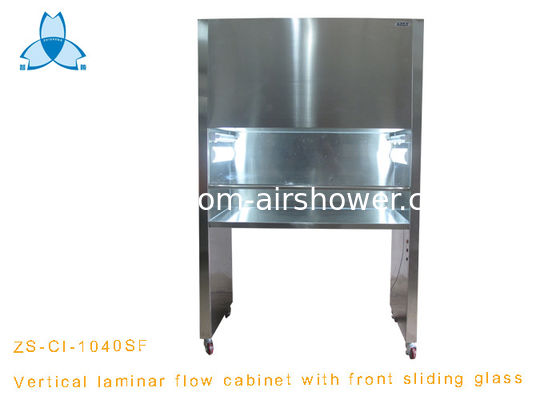

    Sliding Glass Vertical Biology Laminar Flow Cabinet / Clean Bench



    Clean bench is the use of efficient air purification unit, a higher level of manufacturing clean area for low level clean room, local work environment cleanliness requirements of the higher places, it can save a lot of initial investment and operating costs.



    This is a Japanese technology design, and manufacture of new vertical unidirectional flow clean bench, this device is widely used in photoelectric prompt, microelectronics, aseptic packaging, food, medical equipment, pharmaceuticals, clean paint and other industries.



    Size and specification:

    Model ZS-CI-1040 ZS-CI-1340 ZS-CI-1640 ZS-CI-1950
    External dimensions (W x D x H)mm 1040x710x1850 1340x710x1850 1640x710x1850 1950x710x1850
    Size for working area (W x D x H)mm 960 x 615 x 800 1260 x 615 x 800 1560 x 615 x 800 1870 x615 x800
    Suitable people one person one person or two people two person or three people three people
    Specification of HEPA filter (mm) 915x610x69 1220x610x69 915x610x69 610x610x69 915x610x69
    Quantity of HEPA filter (pcs) 1 1 1/1 2
    Noise ≤53dB ≤53dB ≤54dB ≤54dB
    Blow power 125W 125W 160W 125W x 2
    Fluorescent lamp 20W 30W 20W x 2 30W x 2
    Material of Bench top SUS304
    Produce/Inspection standard US Federal standard 209E
    Air velocity 0.45-0.75m/s
    Voltage AC 220V/50Hz/1PH or 110V/60Hz/1Ph
    Cleanliness Class 100 Class (US Federal standard 209E)
    Efficiency 99.99% @0.3μm



    Note: Customized size and specification can be acceptable.









    Sliding Glass Laminar Flow Cabinet 53dB Noise , Purification Filter Funcation



    Testing in factory:



    All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.



    Testing before shipment:

    1. Appearance inspection

    2. Electrical safety tests

    3. Air wind speed testing

    4. Function testing



    Warranty:



    The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

    All equipment is shipped with a comprehensive use’s manual with testing report.

    Additional IO/OQ/GMP document is available upon request.

    Contact our sales representative for specific warranty details or document request.



    Replacement parts:

    1. HEPA filter: It should be changed in half or one year once.

    2. Pre filter: It should be changed in 3-6 month once.



    Why you choose ZHISHENG Company ?



    Professional service:



    Fast reply in 12 hours if we receive any inquiry or request from customer

    • Familiar with equipment.



    Delivery time:

    Production period:15-30days

    • Shipping notice or insurance for you after the goods is shipped.



    After sales service:



    We respect your feed back after receive the goods.

    • We provide 1 year warranty after goods arrive.

    • We promise all spare parts available in lifetime use.

    • We care of your complain within 48hours.



    Payment Term:

    30% prepayment by T/T at order, the balance of payment before shipment.
