| MOQ: | 100 pcs |
| Standard Packaging: | plywood case |
| Delivery Period: | about 15 days upon receipt of deposit |
| Supply Capacity: | 1000 pieces |
Type: pocket filter
Frame: aluminum alloy or stainless steel
Media: Synthetic fiber
EN779 class: F5,F6,F7,F8,F9
Temp. Resistance:100 degree Celsius
Humidity: 100%
Speciality: Galvanized iron or aluminum alloy frame
Between each pocket there is a metal stick to make frame firm, and the separation material of each pocket can avoid the filter over expanded under the pressure.
Ultrasonic sealing make the filter more strong and not easy to break.
Adopted fine synthetic fiber instead of some fiberglass material.
Material is made of antistatic fiber, large dust holding capacity and long working life.
Pocket mesh efficiency has five different types for choice: 35%,45%,65%,85%and 95%
Features:
Application:Pocket filter is widely used as a secondary filter for central air conditioning or air handling unit.
For use in areas that require a high degree of air cleanliness including hospitals, schools, industrial facilities and office complexes. Pocket filters excel in both dust holding capacity and filter efficiency. Greater dust holding capacity means longer service life and lower operating costs
Standard size and specification:
|
Model |
Outside dimensions(mm) (WxHxD) |
Rated air flow(m3/h) |
Initial resistance (Pa) |
Efficiency (class) |
Pockets |
Material |
|
||
|
Dust-spot |
EN799 |
Frame |
Media |
|
|||||
|
ZS-F5 |
495x295x500 (20”x12”x20”) |
1000 |
50Pa |
40-50% |
F5 (White / Yellow) |
5 |
Aluminum /Galvanized Sheet/ plastic |
Non-woven fabric (synthetic fiber) |
|
|
|
|||||||||
|
495x495x500 (20”x20”x20”) |
1800 |
5 |
|
||||||
|
|
|||||||||
|
595x295x500 (24”x12”x20”) |
1300 |
6 |
|
||||||
|
|
|||||||||
|
595x595x500 (24"x24"x20") |
2600 |
6 |
|
||||||
|
|
|||||||||
|
ZS-F6 |
495x295x500 (20”x12”x20”) |
1000 |
55Pa |
60-70% |
F6 (Orange /Green) |
5 |
|
||
|
|
|||||||||
|
495x495x500 (20”x20”x20”) |
1800 |
5 |
|
||||||
|
|
|||||||||
|
595x295x500 (24”x12”x20”) |
1300 |
6 |
|
||||||
|
|
|||||||||
|
595x595x500 (24"x24"x20") |
2600 |
6 |
|
||||||
|
|
|||||||||
|
ZS-F7 |
495x295x500 (20”x12”x20”) |
1000 |
110Pa |
75-85% |
F7(Pinky) |
5 |
|
||
|
|
|||||||||
|
495x495x500 (20”x20”x20”) |
1800 |
5 |
|
||||||
|
|
|||||||||
|
595x295x500 (24”x12”x20”) |
1300 |
6 |
|
||||||
|
|
|||||||||
|
595x595x500 (24"x24"x20") |
2600 |
6 |
|
||||||
|
|
|||||||||
|
ZS-F8 |
495x495x500 (20”x20”x20”) |
1800 |
120Pa |
90-95% |
F8(Yellow) |
5 |
|
||
|
|
|||||||||
|
595x295x500 (24”x12”x20”) |
1300 |
6 |
|
||||||
|
|
|||||||||
|
595x595x500 (24"x24"x20") |
2600 |
6 |
|
||||||
|
|
|||||||||

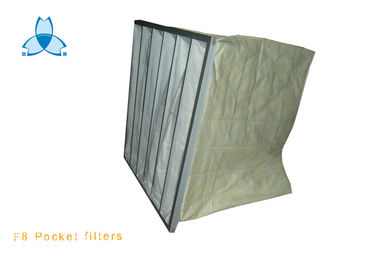

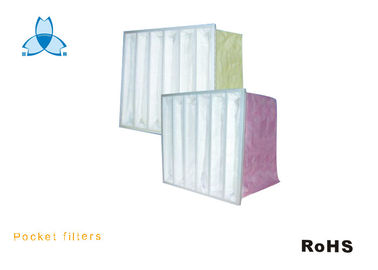

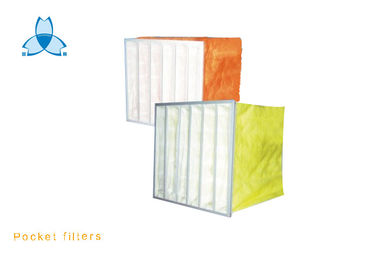

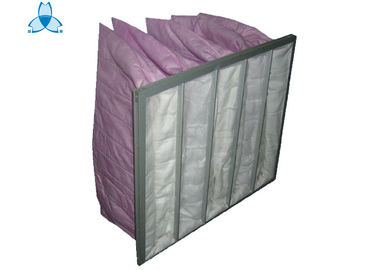

Picture:
Why you choose ZHISHENG Company ?
Professional service:
• Fast reply in 12 hours if we receive any inquiry or request from customer
• Familiar with equipment.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
30% prepayment by T/T at order, the balance of payment before shipment.
|
|
