MOQ: | 100 pcs |
Standard Packaging: | plywood case |
Delivery Period: | about 15 days upon receipt of deposit |
Supply Capacity: | 1000 pieces |

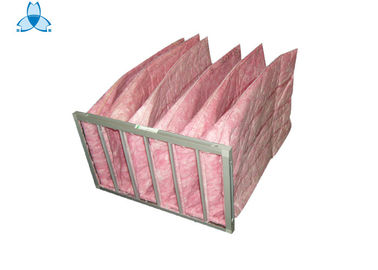

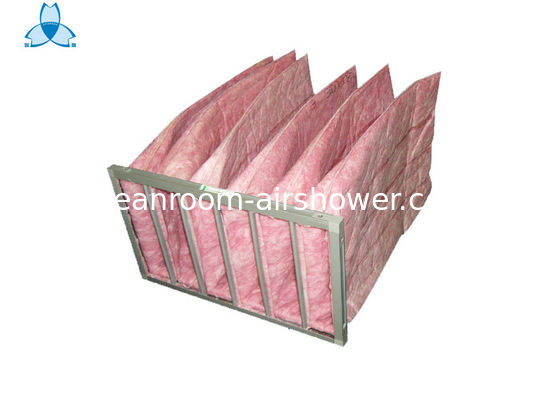

Colorimetry 80-85% Effiency f7 Purple Pocket Air Filter With 6 Bags
Introduction
Air Filter Pocket Filter Bag Filter G4 F5 F6 F7 F8 mainly be used on central air-conditioning and centralized ventilation system. It can be used as primary, medium and senior filter to protect inferior filter of system and itself. Bag air filter always adopt flat, diamond, honeycomb and V type bag. It adopts special process of ultrasonic heat sealing process which replaced the original process and avoid dust leakage on pinhole office as wellas enhance filter efficiency. The amount of small V type bag is determined by equipment's condition of using factory.
Specification of Air Filter Pocket Filter Bag Filter G4 F5 F6 F7 F8
Features:
Product type | Synthetic fiber pocket filter for second stage gas turbine |
Media | Synthetic fiber(3-layer) / Mircro glass fiber |
Frame | Galvanized /Aluminum /ABS plastic |
Class | F5-F9 (EN799) |
Average Efficiency | 45%; 65%; 85%; 95%; |
Media color | White, Orange(Green), Pink, Yellow |
Initial pressure drop | 50-120 pa (0.2-0.48 WG) |
Final pressure drop | 200-500 pa(0.8-2 WG) |
Operating temperature | 80 ºC |
Humidity resistance: | 100% |
Application:Pocket filter is widely used as a secondary filter for central air conditioning or air handling unit.
For use in areas that require a high degree of air cleanliness including hospitals, schools, industrial facilities and office complexes. Pocket filters excel in both dust holding capacity and filter efficiency. Greater dust holding capacity means longer service life and lower operating costs
Standard size and specification:
Model | Outside dimensions(mm) (WxHxD) | Rated air flow(m3/h) | Initial resistance (Pa) | Efficiency (class) | Pockets | Material | |||
Dust-spot | EN799 | Frame | Media | ||||||
ZS-F5 | 495x295x500 (20”x12”x20”) | 1000 | 50Pa | 40-50% | F5 (White / Yellow) | 5 |
Aluminum /Galvanized Sheet/ plastic |
Non-woven fabric (synthetic fiber) | |
495x495x500 (20”x20”x20”) | 1800 | 5 | |||||||
595x295x500 (24”x12”x20”) | 1300 | 6 | |||||||
595x595x500 (24"x24"x20") | 2600 | 6 | |||||||
ZS-F6 | 495x295x500 (20”x12”x20”) | 1000 | 55Pa | 60-70% | F6 (Orange /Green) | 5 | |||
495x495x500 (20”x20”x20”) | 1800 | 5 | |||||||
595x295x500 (24”x12”x20”) | 1300 | 6 | |||||||
595x595x500 (24"x24"x20") | 2600 | 6 | |||||||
ZS-F7 | 495x295x500 (20”x12”x20”) | 1000 | 110Pa | 75-85% | F7(Pinky) | 5 | |||
495x495x500 (20”x20”x20”) | 1800 | 5 | |||||||
595x295x500 (24”x12”x20”) | 1300 | 6 | |||||||
595x595x500 (24"x24"x20") | 2600 | 6 | |||||||
ZS-F8 | 495x495x500 (20”x20”x20”) | 1800 | 120Pa | 90-95% | F8(Yellow) | 5 | |||
595x295x500 (24”x12”x20”) | 1300 | 6 | |||||||
595x595x500 (24"x24"x20") | 2600 | 6 | |||||||
Packing:
Why you choose ZHISHENG Company ?
Professional service:
• Fast reply in 12 hours if we receive any inquiry or request from customer
• Familiar with equipment.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
30% prepayment by T/T at order, the balance of payment before shipment.
