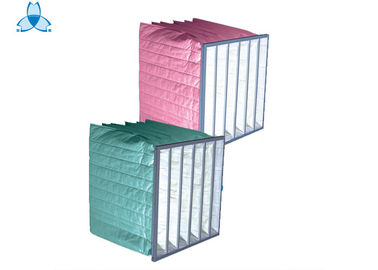

Rated Air Bag Synthetic Fiber Filter

Rated Air Bag Synthetic Fiber Filter

    • Rated Air Bag Synthetic Fiber Filter
  • Rated Air Bag Synthetic Fiber Filter

    Product Details:

    Place of Origin: Guangdong, China (Mainland)
    Brand Name: Zhisheng
    Certification: ISO9001, Rohs
    Model Number: ZS-F7

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pcs
    Packaging Details: plywood case
    Delivery Time: about 15 days upon receipt of deposit
    Supply Ability: 1000 pieces
    Contact Now
    Detailed Product Description
    Construction: Bag Filter Material: Fiberglass
    Class: F7 Size: 24*12*20 Inch
    Color: Yellow/orange/purple/primrose Yellow Application: High Efficiency Air Filters
    High Light:

    bag filter systems

    ,

    air bag filter



    Rated Air Flow 1600 m3 / h - 3200 m3 / h For Pocket Air Filter



    Features1:



    1. Collect 1 to 5 micron particles. Between each pocket has a metal stick to make frame more firm, and the separation material of each pocket can avoid the filter over expanded under the pressure.

    2. Ultrasonic sealing make the filter more strong and not easy to broke

    3. Adopt fine synthetic fiber instead of some fiberglass material

    4. Material has antistatic fiber, large dust holding capacity and long working life.

    5. Pocket mesh efficiency has five different type for choice: 45%, 65%, 85%, 95%, 98%.

    6.Firm structure, large dust holding capacity, large air flow.

    7.There are F8 (yellow,90-95%), F7 (Pink,75-85%), F6 (green, 60-70%), F5 (White,40-50%) available, with aluminum alloy, stainless steel or galvanized steel frame for selection.

    8.Applicable in electronics, precision machinery, instruments, machinery, food and other industries and medium filtering for general air-conditioning ventilation systems.





    Features2:



    Product type Synthetic fiber pocket filter for second stage gas turbine
    Media Synthetic fiber(3-layer) / Mircro glass fiber
    Frame Galvanized /Aluminum /ABS plastic
    Class F5-F9 (EN799)
    Average Efficiency 45%; 65%; 85%; 95%;
    Media color White, Orange(Green), Pink, Yellow
    Initial pressure drop 50-120 pa (0.2-0.48 WG)
    Final pressure drop 200-500 pa(0.8-2 WG)
    Operating temperature 80 ºC
    Humidity resistance: 100%



    Application:Pocket filter is widely used as a secondary filter for central air conditioning or air handling unit.

    For use in areas that require a high degree of air cleanliness including hospitals, schools, industrial facilities and office complexes. Pocket filters excel in both dust holding capacity and filter efficiency. Greater dust holding capacity means longer service life and lower operating costs



    Standard size and specification:



    Model Outside dimensions(mm) (WxHxD) Rated air flow(m3/h) Initial resistance (Pa) Efficiency (class) Pockets Material
    Dust-spot EN799 Frame Media
    ZS-F5 495x295x500 (20”x12”x20”) 1000 50Pa 40-50% F5 (White / Yellow) 5

    Aluminum /Galvanized Sheet/

    plastic

    Non-woven fabric (synthetic fiber)

    495x495x500 (20”x20”x20”) 1800 5

    595x295x500 (24”x12”x20”) 1300 6

    595x595x500 (24"x24"x20") 2600 6

    ZS-F6 495x295x500 (20”x12”x20”) 1000 55Pa 60-70% F6 (Orange /Green) 5

    495x495x500 (20”x20”x20”) 1800 5

    595x295x500 (24”x12”x20”) 1300 6

    595x595x500 (24"x24"x20") 2600 6

    ZS-F7 495x295x500 (20”x12”x20”) 1000 110Pa 75-85% F7(Pinky) 5

    495x495x500 (20”x20”x20”) 1800 5

    595x295x500 (24”x12”x20”) 1300 6

    595x595x500 (24"x24"x20") 2600 6

    ZS-F8 495x495x500 (20”x20”x20”) 1800 120Pa 90-95% F8(Yellow) 5

    595x295x500 (24”x12”x20”) 1300 6

    595x595x500 (24"x24"x20") 2600 6
