Low Resistance Synthetic Fiber Filter For HVAC System / Hepa Air Purifier Filter

Low Resistance Synthetic Fiber Filter For HVAC System / Hepa Air Purifier Filter
Low Resistance Synthetic Fiber Filter For HVAC System / Hepa Air Purifier Filter Low Resistance Synthetic Fiber Filter For HVAC System / Hepa Air Purifier Filter

Large Image :  Low Resistance Synthetic Fiber Filter For HVAC System / Hepa Air Purifier Filter

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: Zhisheng
Certification: ISO9001, Rohs
Model Number: ZS-F5
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Packaging Details: plywood case
Delivery Time: about 15 days upon receipt of deposit
Supply Ability: 1000 pieces

Low Resistance Synthetic Fiber Filter For HVAC System / Hepa Air Purifier Filter

Description
Construction: Bag Filter Porosity: 1um
Weight: 2-20kg Size: Custiomized Pocket Filter
Color: Yellow , Orange , Purple , Primrose Yellow Warranty: 1 Year
High Light:

hvac hepa filter

,

air bag filter



Synthetic Fiber Can Repeatable Use After Clean Up Pocket Air Filter





Applications :



Front filtering in effective filter; secondary filtering in air condition system; clean air filtering for electronic, precision instrument, machinery, metallurgy, chemical industry, textile, pharmaceutical, food industry etc.



A,Features:



1. large air flow


2. low resistance


3. high dust loading capacity


4. ultrasonic welded pockets



B,Features:



Product type Synthetic fiber pocket filter for second stage gas turbine
Media Synthetic fiber(3-layer) / Mircro glass fiber
Frame Galvanized /Aluminum /ABS plastic
Class F5-F9 (EN799)
Average Efficiency 45%; 65%; 85%; 95%;
Media color White, Orange(Green), Pink, Yellow
Initial pressure drop 50-120 pa (0.2-0.48 WG)
Final pressure drop 200-500 pa(0.8-2 WG)
Operating temperature 80 ºC
Humidity resistance: 100%



Application:Pocket filter is widely used as a secondary filter for central air conditioning or air handling unit.

For use in areas that require a high degree of air cleanliness including hospitals, schools, industrial facilities and office complexes. Pocket filters excel in both dust holding capacity and filter efficiency. Greater dust holding capacity means longer service life and lower operating costs



Standard size and specification:



Model Outside dimensions(mm) (WxHxD) Rated air flow(m3/h) Initial resistance (Pa) Efficiency (class) Pockets Material
Dust-spot EN799 Frame Media
ZS-F5 495x295x500 (20”x12”x20”) 1000 50Pa 40-50% F5 (White / Yellow) 5

Aluminum /Galvanized Sheet/

plastic

Non-woven fabric (synthetic fiber)

495x495x500 (20”x20”x20”) 1800 5

595x295x500 (24”x12”x20”) 1300 6

595x595x500 (24"x24"x20") 2600 6

ZS-F6 495x295x500 (20”x12”x20”) 1000 55Pa 60-70% F6 (Orange /Green) 5

495x495x500 (20”x20”x20”) 1800 5

595x295x500 (24”x12”x20”) 1300 6

595x595x500 (24"x24"x20") 2600 6

ZS-F7 495x295x500 (20”x12”x20”) 1000 110Pa 75-85% F7(Pinky) 5

495x495x500 (20”x20”x20”) 1800 5

595x295x500 (24”x12”x20”) 1300 6

595x595x500 (24"x24"x20") 2600 6

ZS-F8 495x495x500 (20”x20”x20”) 1800 120Pa 90-95% F8(Yellow) 5

595x295x500 (24”x12”x20”) 1300 6

595x595x500 (24"x24"x20") 2600 6

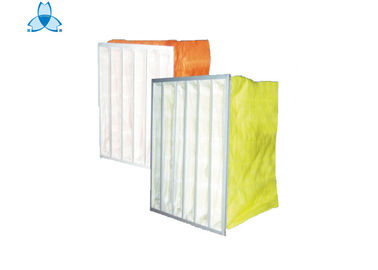

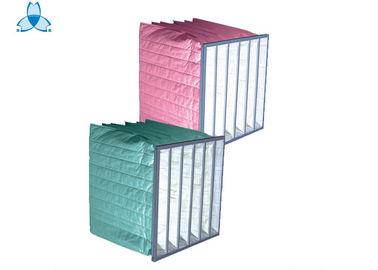

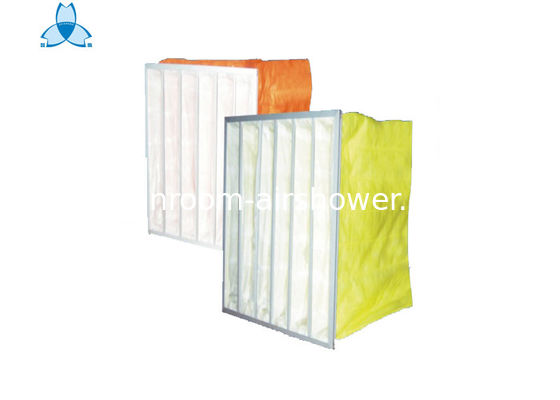

Picture:



Low Resistance Synthetic Fiber Filter For HVAC System / Hepa Air Purifier Filter 0





Why you choose ZHISHENG Company ?



Professional service:



Fast reply in 12 hours if we receive any inquiry or request from customer

• Familiar with equipment.



Delivery time:

Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.



After sales service:



We respect your feed back after receive the goods.

• We provide 1 year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.



Payment Term:

30% prepayment by T/T at order, the balance of payment before shipment.
