| MOQ: | 1 set |
| Standard Packaging: | plywood case |
| Delivery Period: | 10-15 days after receive prepayment |
| Payment Method: | T/T, Western Union |
| Supply Capacity: | 200 Set/Sets per Month |

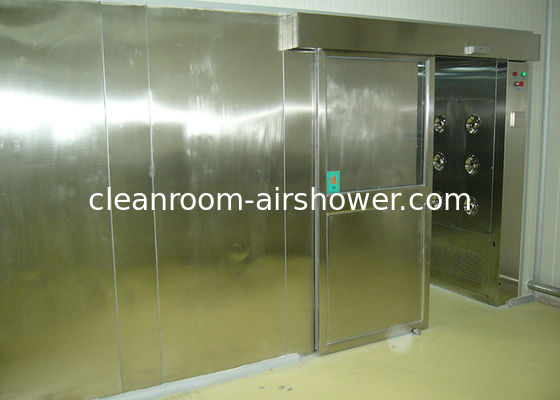

U Type Automatic Sliding Doors Air Shower Tunnels For Multi People And Materials
Doors:Automatic Single Leaf Sliding Doors
Width: 1200mm
Description:
Air Shower tunnel is a kind of partial clean equipment with rather strong universality and is installed at the
partition between the clean and non-clean room, which is used for many people and material at the same
time to enter for blowing.
After using it, the dust could effectively be reduced to enter the clean area and maintain the normal working status.
This air shower tunnel of which automatic sliding door is convenient for people entering air shower room,
as well to reduce the enter time.
Blowing type: single-side blowing, double-side blowing, three-side blowing.
Standard Features:
1. Large Airflow and Low Noise Blower fan
2. Neoprene vibration isolator for blower
3. 99.99% 0.3 micron HEPA filter
4. Stainless Steel adjustable air nozzles
5. MEVR 7 pre-filters located at the botton of the wall for easy access
6. Electric door interlock 12DV with 50kg holding force.
7. Emergency stop station (Shutts off blower and turns off locks)
8. Commercial duty door closers.
9. LED light fixture.
10. Pre-wire control panel with non-fused disconnect switch, tranfermers, motor starter with short circuit and overload protection and fused and circuit breaker.
Optional accessory:
1. Manual swing door / automatic sliding door/High speed scroll shutter door
2. HEPA filter or ULPA filter
3. Material for cabinet: cold-rolled steel plate with powder coated / SUS#201 / SUS#304
4. Common fluorescent lamp / UV Sterilizer lamp
5. With voice announce
Parameter:
| Product type | U Type Automatic Sliding Doors Air Shower Tunnels For Multi People And Materials |
| Material for casing | T=1.2MM Full SS304 for External and internal cabinet |
| Material for doors | Stainless steel 304 |
| Nozzles | Stainles steel |
| Door leaf | Single leaf |
| Door type | Sliding doors |
| Blowing way | 2-side blowing |
| Control system | English intelligent control panel with human voice |
| Locks | Electric mortise lock |
| HEPA filter efficinecy: | 99.99% |
| Pre filter | G3 |
| Light | Philips brand |
| Photoelectric sensor | OMRON brand |
| Shower time | 0-99s adustable |
| Spurt wind speed | 25-27m/s above |
| Power supply | 380V/50HZ/3PH |
| Safeguard | Leakage switch and thermal overload relay (Protect people from electric leakage) |
size and specificaton:
| Product | U Type Automatic Sliding Doors Air Shower Tunnels For Multi People And Materials |
| Model | ASS-1800D-10 |
| External dimensions (mm) | W1800*D1000*H2100 |
| Internal dimensions WxHxD(mm) | W1200*D9500*H2000 |
| Doors | 2 sets of SS single-leaf swing door |
| Door closer | 2 sets (Outside) |
| Lock | 2sets of electric magnetic locks interlocked |
| Suitable person | 15-20 people |
| Nozzles | 60+60=120 PCS(2-side blowing) |
| Blower fan | 20 sets |
| Blow power(W) | 8000W |
| Weight(kg) | Appro.680 |
| HEPA filter size | 610x610x90mm |
| HEPA filter qty | 20 PCS |
| HEPA filter efficiency | H13 |
| Photolectric sensor | ORMON 2 PCS |
| Fluorescent Lamp | Philips 10x 20W |
| Nozzle diameter | 32mm |
| Air shower time | 0-99 s Adjustable |
| Spurt wind speed | 22-25m/s |
| Power Supply | AC380V/50Hz/3Ph |
| Control system | Microcomputer control panel with human invoice prompt, electric interlock, automatical blowing by photoelectric sensor |
Air shower Details:
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment.
Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Replacement parts:
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
Professional service:
Fast reply in 12 hours if we receive any inquiry or request from customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
30% prepayment by T/T at order, the balance of payment before shipment.
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
We have CE and ROHS Certificate for air shower
|
|
